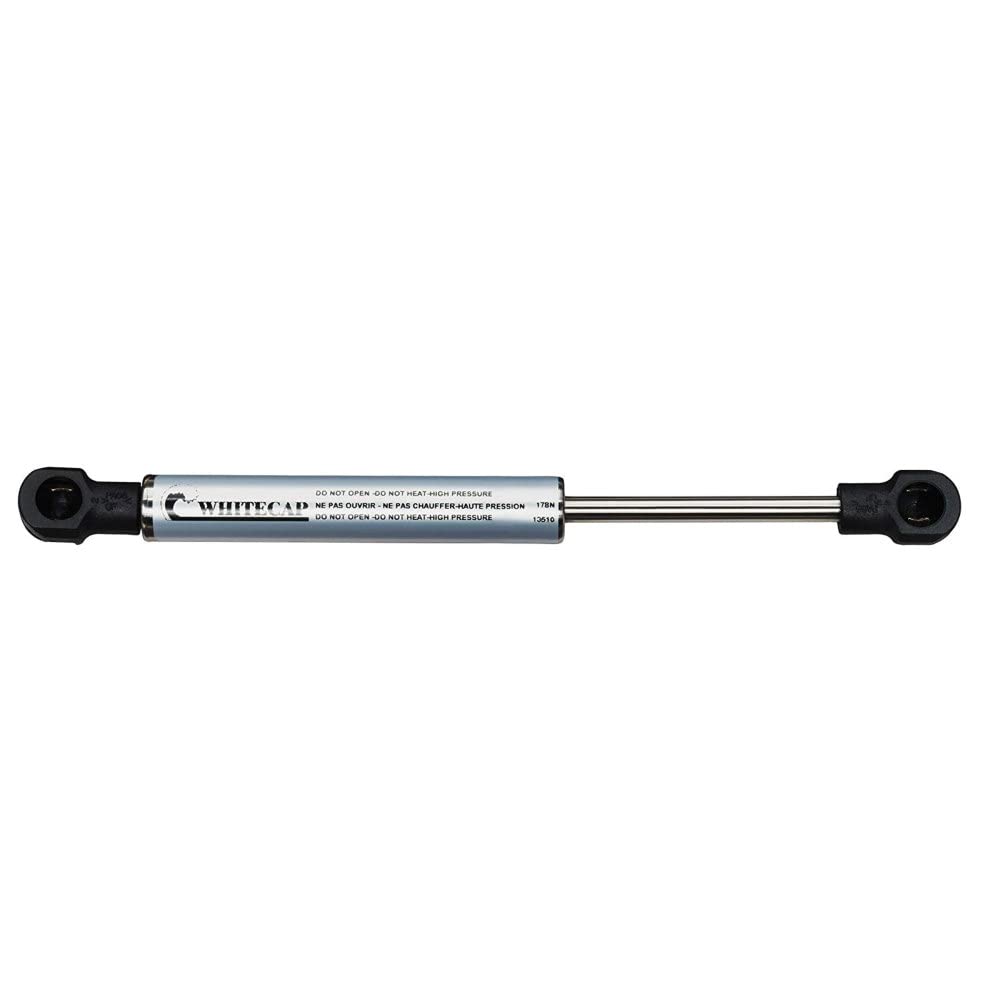

10" Gas Spring - 40lb - Stainless Steel. Features: 316 S.S. Gas Spring. Ext. Length - 10". Comp. Length - 7". Rod Dia. - 6mm. Tube Dia. - 15mm. P1 Force - 40. Lift Capacity: 40 lbs. Length: 10". Whitecap's Stainless Steel Gas Spring specifications include ext length 10", comp length 7", rod diameter 6mm, and tube diameter of 15mm. Check manufacturer recommendations to ensure a proper fit. Quick and easy installation. Built for marine and industrial applications where corrosion resistance and reliable gas-assist lifting are required.
- P1 Force: 40 lbs.
- Tube Diameter: 15mm
- Rod Diameter: 6mm
- Length: 7" (compressed) to 10" (extended)
- Stainless steel gas spring
Specifications:
| Materials & Construction |
| Color | Black |
| Material | Steel |
| Outer Material | Steel |
| Product Details |
| Auto Part Position | Rear |
| Compressed Length | 7 Inches |
| Extended Length | 10 Inches |
| Included Components | Whitecap G-3040SSC Stainless Steel Gas Spring - 7" to 10", 40 lbs. |
| Item Dimensions Lx Wx H | 11.25 x 4.25 x 1.5 inches |
| Lift Capacity | 40 Lbs |
| Number of Items | 1 |
| Size | 7" to 10" |
| UPC | 725060304034 |
| Sizing & Dimensions |
| Height | 1.5 inches |
| Length | 11.25 inches |
| Product Dimensions | 11.25 x 4.25 x 1.5 inches |
| Size | 7" to 10" |
| Weight | 4 ounces |
| Width | 4.25 inches |
| Technical Specifications |
| Auto Part Position | Rear |
| Compressed Length | 7 Inches |
| Extended Length | 10 Inches |
| Lift Capacity | 40 Lbs |
