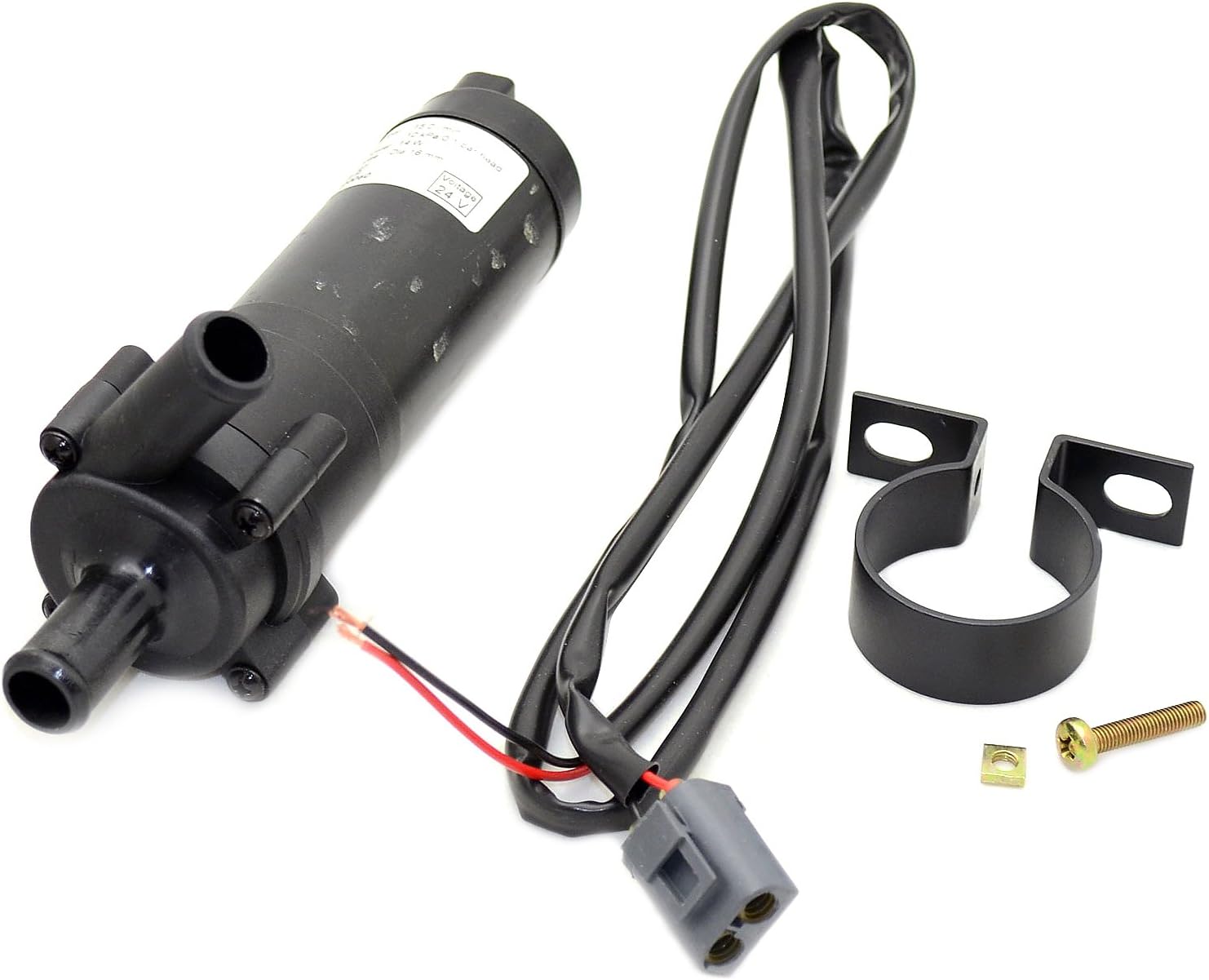

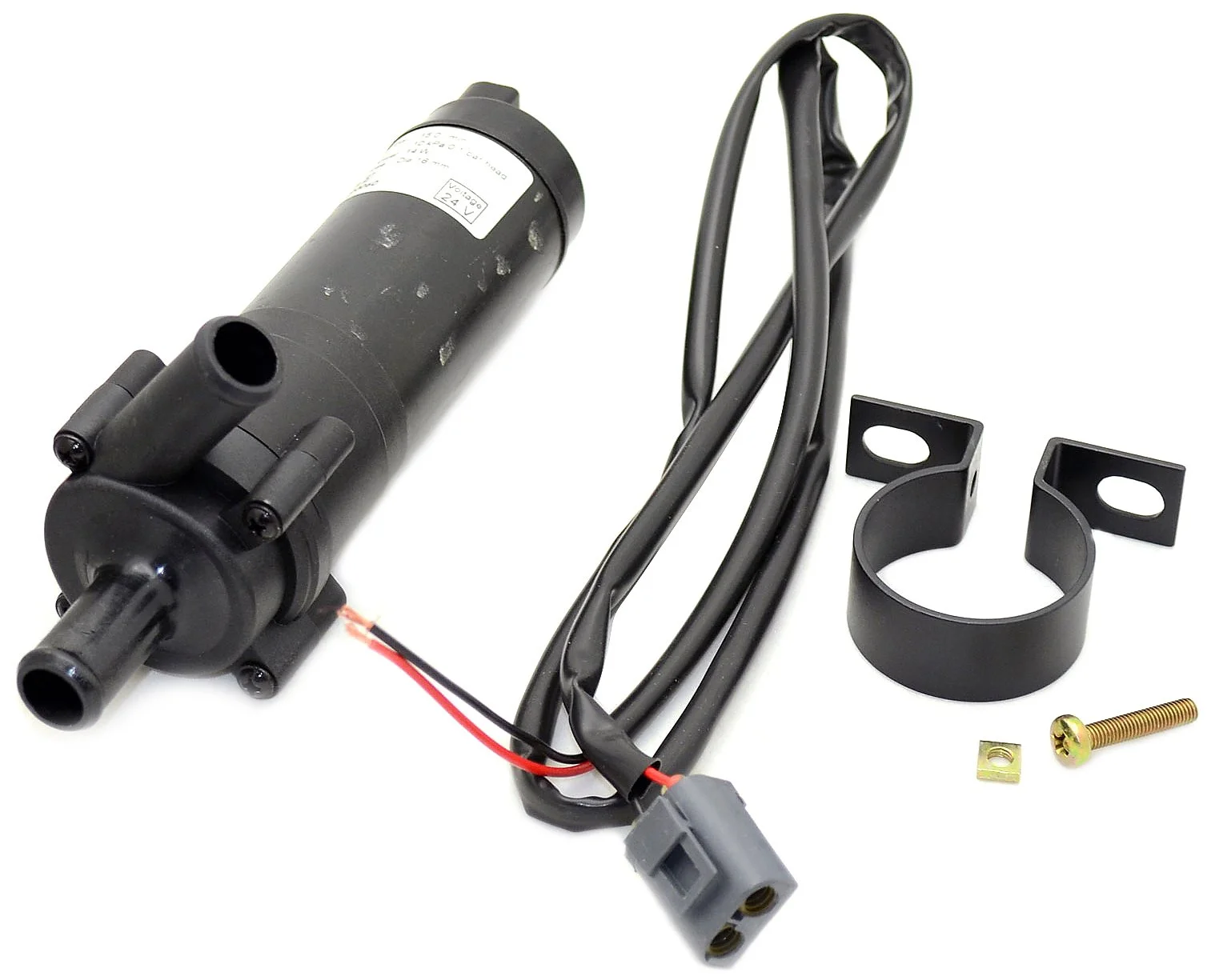

CM10P7-1 - 12V Circulation Pump Features: 12V, 4.0 GPM circulation pump Compact, magnetic driven centrifugal pump High flow rate with very low electrical current consumption Suitable for fresh water, ethylene glycol and salt water PPA thermoplastic pump body with PPS thermoplastic impeller. EPDM O-ring, stainless steel shaft, PSU magnet housing, enclosed DC permanent magnet, ball bearing mounted motor designed for continuous operation. Liquid: Water/glycol mixture; max. 60% glycol, fresh and salt water. Liquid temp.: Min. -40 Degree C - Max. +100 Degree. Hose Connection: 5/8". Dimensions: 6.97" L x 2.68" W x 3.35" H. Weight: 1.2 lbs. Capacity: 4 GPM at 3.3'.
| Materials & Construction | |
| Outer Material | Plastic |
| Product Details | |
| Color | Black |
| Global Trade Identification Number | 07330717007003 |
| Included Components | Johnson Pump 10-24486-03, CM10P7-1 MAG. Drive 12V 5/8 |
| Material | Plastic |
| Maximum Flow Rate | 4 Gallons Per Minute |
| Model Name | 10-24486-03 |
| Number of Items | 1 |
| Power Source | Corded Electric |
| Size | 12V |
| Style | Diaphragm |
| Voltage | 12.0 |
| Sizing & Dimensions | |
| Height | 3.5 inches |
| Length | 8.5 inches |
| Product Dimensions | 8.5 x 3.5 x 3.5 inches |
| Weight | 1.2 pounds |
| Width | 3.5 inches |
