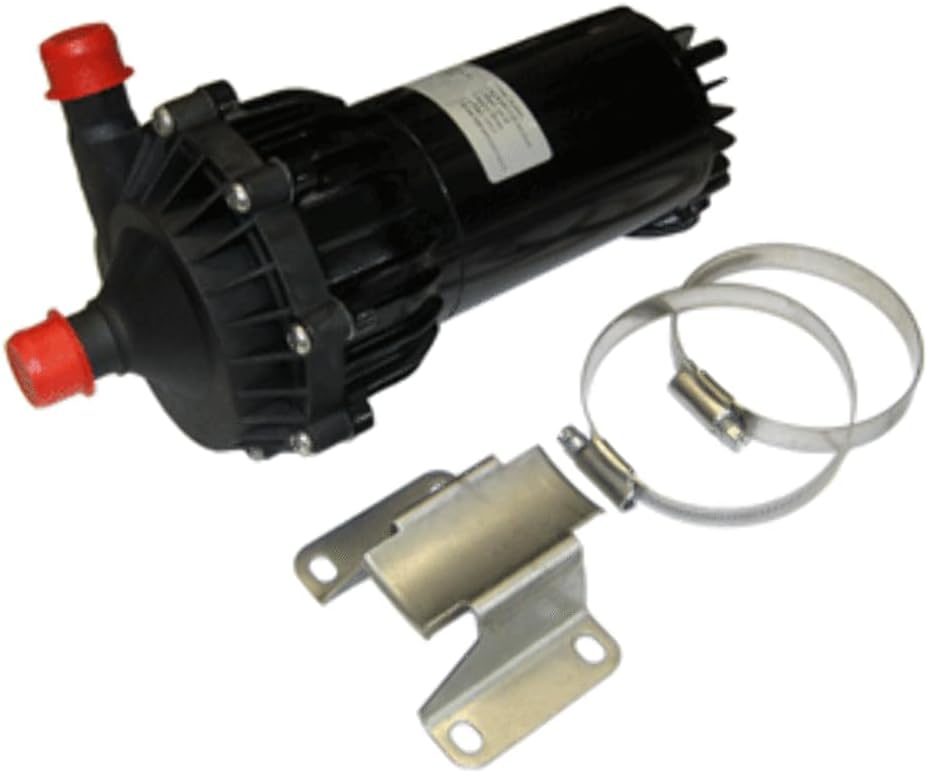

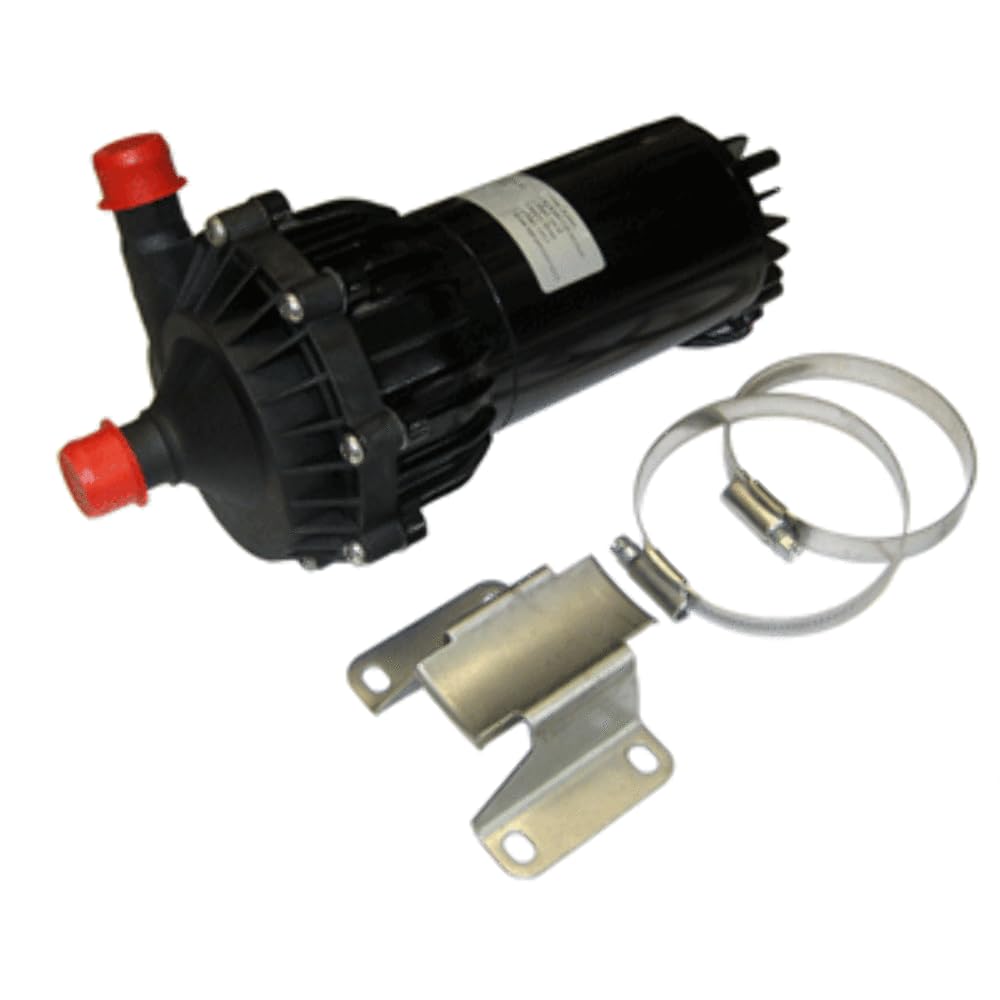

CM90 Circulation Pump - 17.2GPM - 12V - 3/4" Outlet. CM90 circulation pumps are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. Glass-fiber reinforced PPA body. Specifications: System Pressure: -0.3 to 3.0 bar; stationary max. 4.0 bar. Liquid: Water/glycol mixture; max. 60% glycol, fresh and salt water. Motor service life: More than 5,000 hours at nominal voltage, 10,000 start/stops. Interchangeable motor. Dry running: 30 minutes. Dimensions (manufacturer): 244mm L x 120mm W x 150mm H. Weight: 6.6 lbs. Capacity: 17.2 GPM. Ports: 3/4". Volts: 12v. Item Dimensions (packaged/retail): 9.61 x 4.72 x 5.91 inches. Package Dimensions: 11 x 8 x 6 inches. Package Weight: 6.7 Pounds.
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Color | No Color |
| Gallons Per Minute | 17.2 Gpm |
| Included Components | Great Product |
| Material | Plastic |
| Maximum Flow Rate | 17.2 Gallons Per Minute |
| Number of Items | 1 |
| Power Source | Corded Electric |
| Style | Diaphragm |
| Volts | 12v |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 5.91 inches |
| Length | 9.61 inches |
| Product Dimensions | 9.61 x 4.72 x 5.91 inches |
| Size | One Size |
| Weight | 6.56 pounds |
| Width | 4.72 inches |
| Technical Specifications | |
| Item Dimensions Lx Wx H | 9.61 x 4.72 x 5.91 inches |
| Item Package Dimensions L x W x H | 11 x 8 x 6 inches |
| Power Source | Corded Electric |
| System Pressure | -0.3 to 3.0 bar; stationary max. 4.0 bar |
