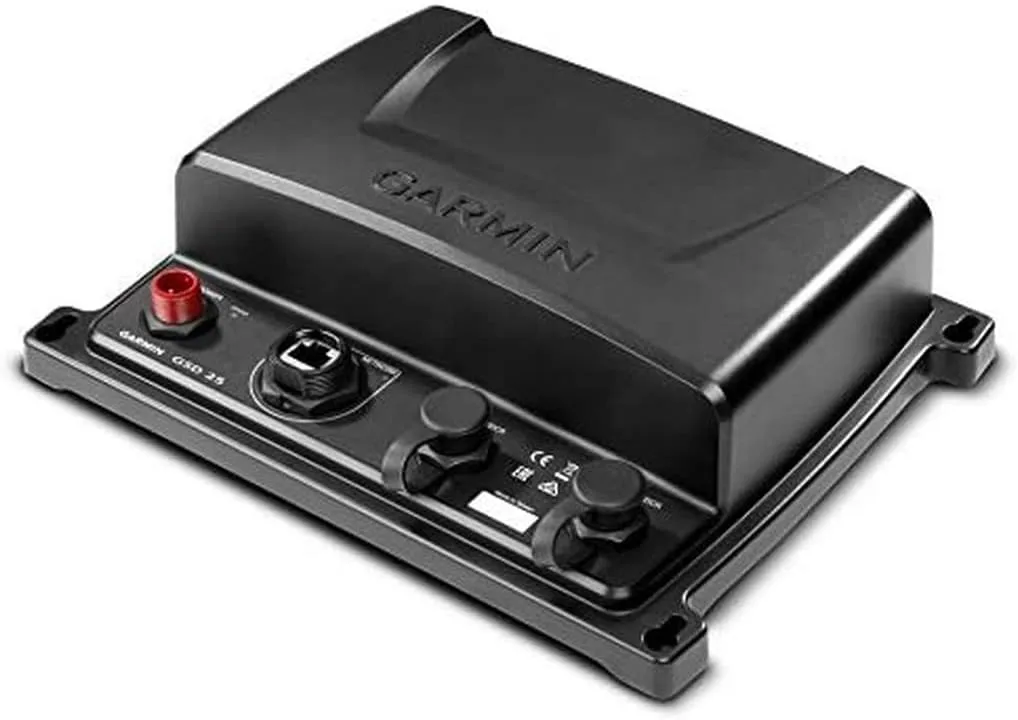

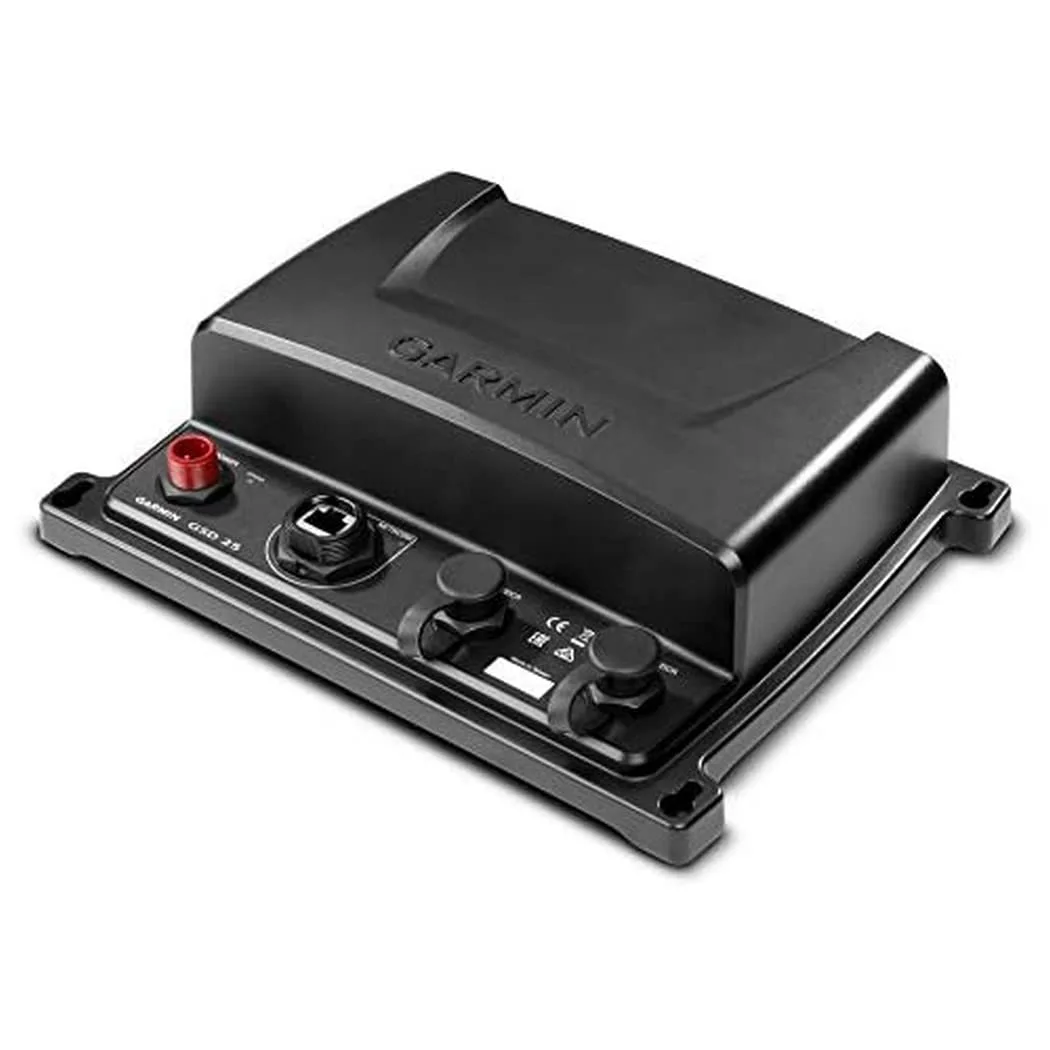

Garmin 010-01159-00 GSD 25 Premium Sonar Module
Customize
GSD 25 Premium Sonar Module — The GSD 25 premium sonar module is a networked remote solution delivering outstanding fishfinding and bottom‑tracking capabilities. It provides true dual‑channel 1 kW CHIRP traditional sonar plus Garmin CHIRP DownVü and SideVü scanning sonar for exceptionally clear imaging on the water. Target detail is improved so you can distinguish small and closely spaced fish at depths to 5,000 feet. The module is designed for vessels with networked MFD installations and pairs with compatible Garmin chartplotters (GPSMAP 8000 Glass Helm, GPSMAP 7400/7600 Series). Features include configurable CHIRP frequency ranges (traditional 50/77/83/200 kHz; CHIRP 40–250 kHz; SideVü/DownVü CHIRP 260/455/800 kHz), True Dual‑Channel 1 kW CHIRP for superior target resolution, and support for Garmin proprietary transducers (transducer sold separately). In the box: GSD 25, right‑angle power cable (6 feet), right‑angle network cable (6 feet), mounting hardware, documentation. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Item Package Weight: 1.51 Kilograms
- Item Package Dimensions: 14.1 L X 31.1 W X 34.1 H (Cm)
- Product Type: Fishing Equipment
- Country Of Origin: Taiwan, Province Of China
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Display Type | TFT |
| Included Components | Garmin 010-01159-00 GSD 25 Premium Sonar Module |
| Model Name | Garmin 010-01159-00 GSD 25 Premium Sonar Module |
| Model Year | 2018 |
| Mounting Type | Flush Mount or Surface Mount |
| Number of Items | 1 |
| Power Source | Battery Powered |
| Screen Size | 9 Inches |
| Warranty Description | 1 Year Limited |
| Sizing & Dimensions | |
| Height | 13.43 inches |
| Length | 5.55 inches |
| Product Dimensions | 5.55"L x 12.24"W x 13.43"H |
| Size | One Size |
| Weight | 2.20 pounds |
| Width | 12.24 inches |
| Technical Specifications | |
| Warranty | 1 Year Limited |
