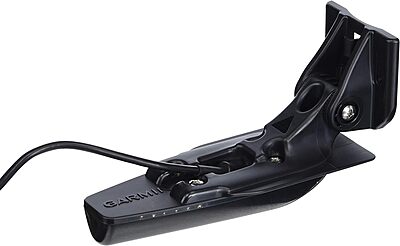

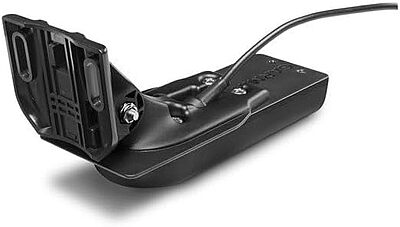

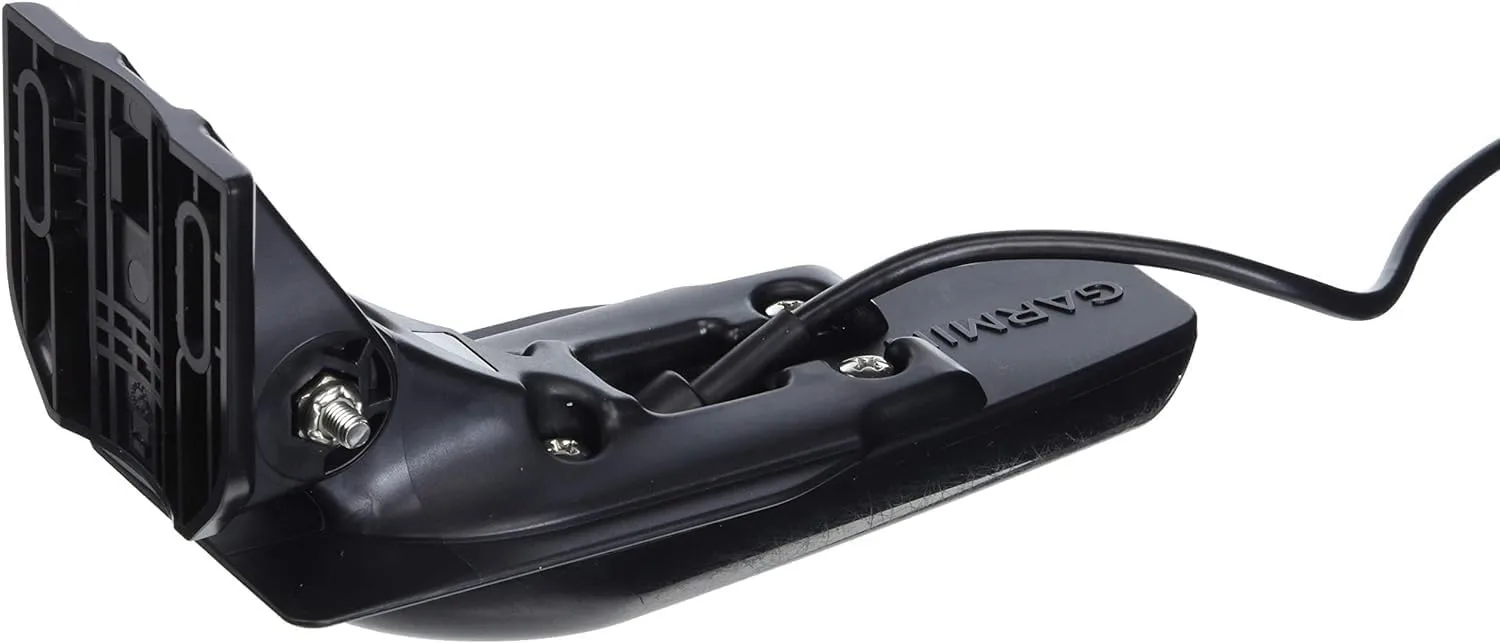

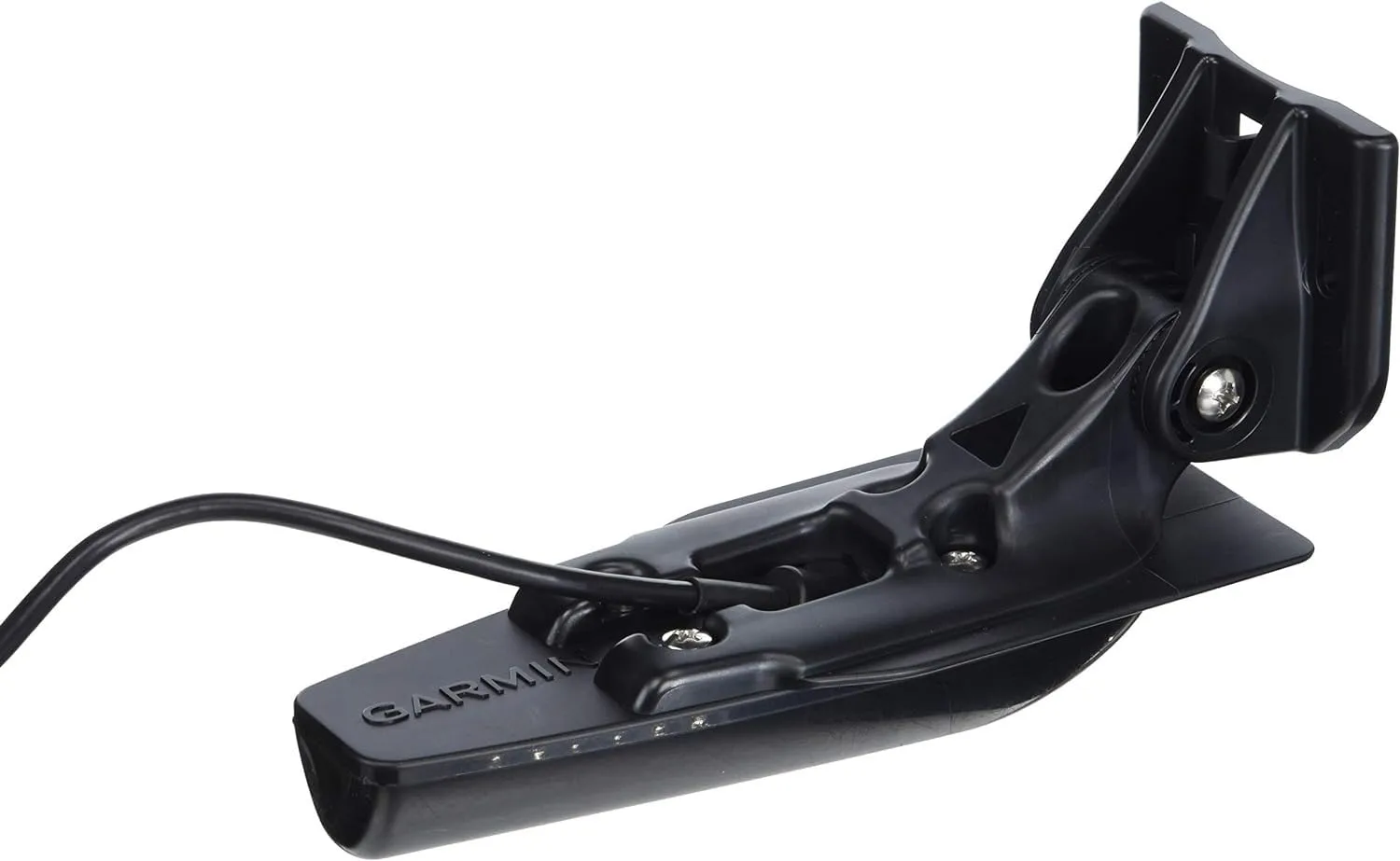

Garmin GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-Pin
Customize
GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-Pin. Get ultra-clear sonar pictures of objects, structure and fish that pass below your boat with this all-in-one 8-pin transducer. This 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (DownVü); an operating frequency of 77/200 kHz (traditional) and 455 kHz (DownVü); and 0 to 70 transom angle. Transducer comes with transom and trolling motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat. Temperature: Yes. Speed Included: No. Pins: 8. Imaging: Standard/Down. Chirp: Non Traditional. Cable Length (Feet): 20'. Mounting Style: Transom.

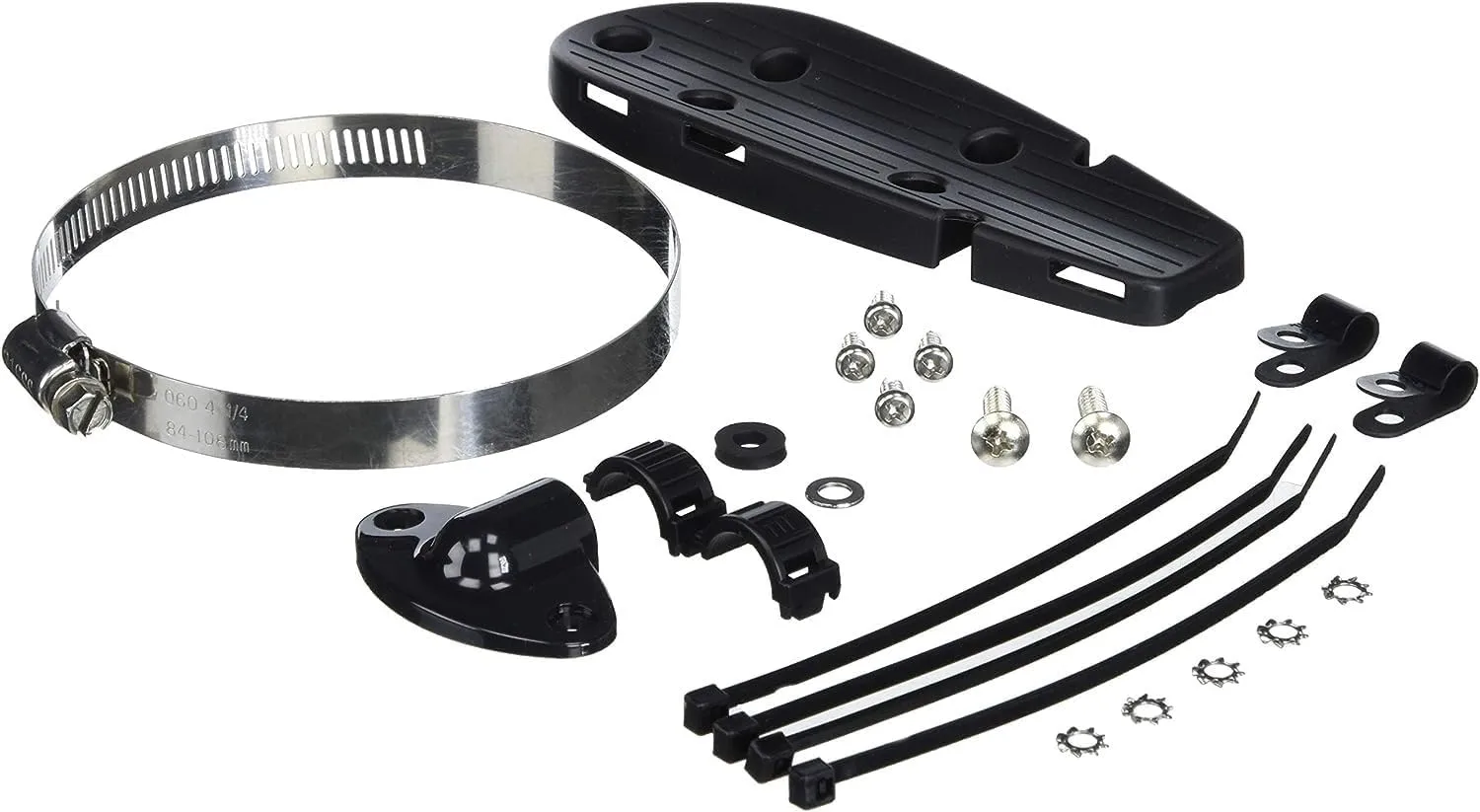

- Transducer comes with transom and trolling motor mounts and installation instructions
- Operating frequencies of 77/200 kHz (traditional) and 455 kHz (ClearVü)
- Depth of 1,900 ft. (traditional) and 750 ft. (ClearVü)

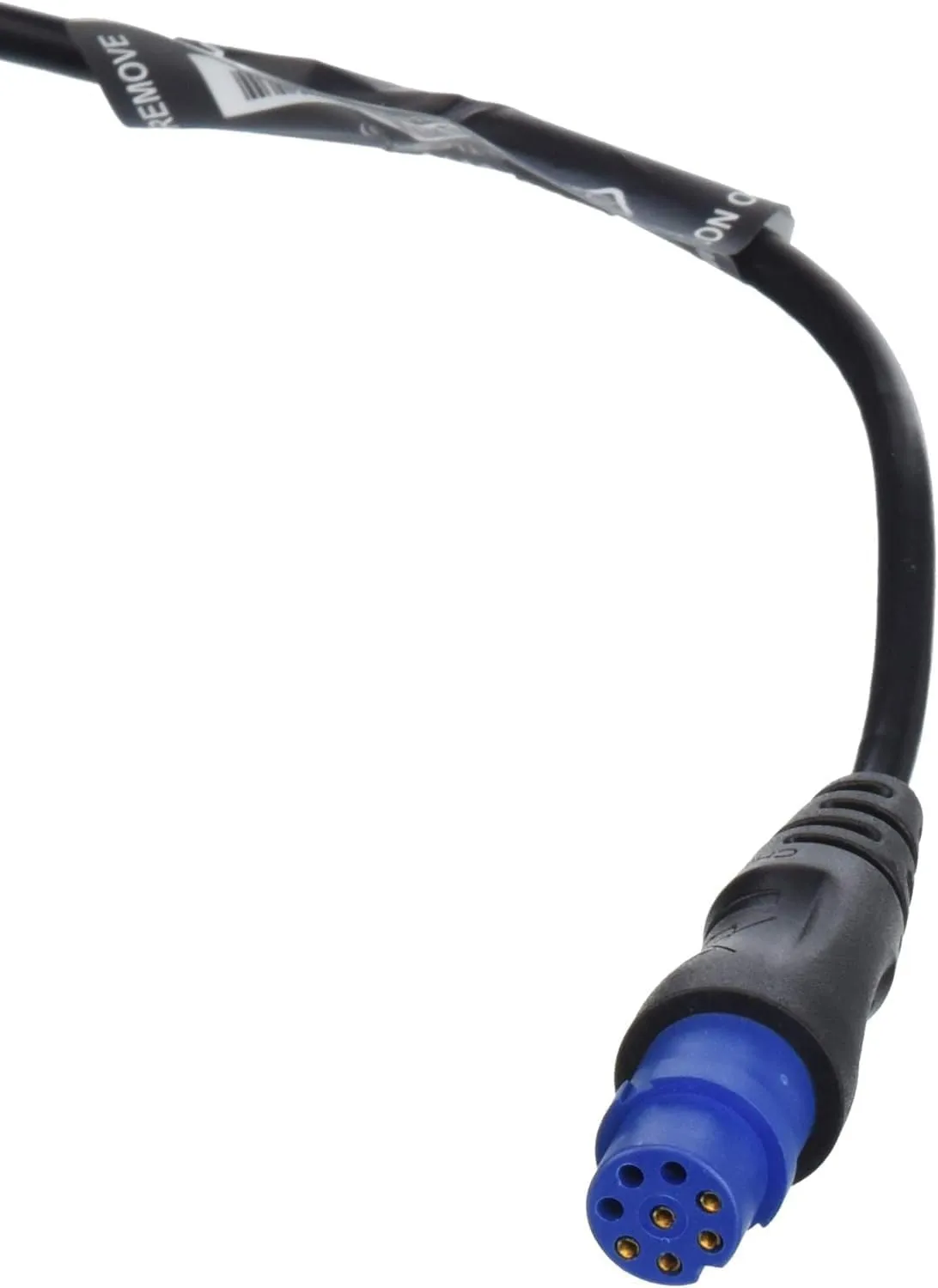

- 20 ft. transducer cable with built-in fast response temperature sensor has a power rating of 500 W
- Consistently displays fish arches as well as clear pictures of objects, structure and fish that pass below your boat
Specifications:
| Product Details | |
| Cable Length (Feet) | 20' |
| Chirp | Non Traditional |
| Imaging | Standard/Down |
| Item model number | 3005.2999 |
| Manufacturer Part No | 010-01960-01 |
| Mounting Style | Transom |
| Pins | 8 |
| Speed Included | No |
| Temperature | Yes |
| Sizing & Dimensions | |
| Height | 5.91 inches |
| Length | 3.94 inches |
| Product Dimensions | 3.94 x 3.94 x 5.91 inches |
| Weight | 1.54 pounds |
| Width | 3.94 inches |
| Technical Specifications | |
| Depth (Down Vü) | 750 ft |
| Depth (Traditional) | 1,900 ft |
| Operating Frequency (Down Vü/CHIRP) | 455/800 kHz |
| Operating Frequency (Traditional) | 77/200 kHz |
| Power Rating | 500 W |
| Tilt | 16 degree tilted Down |
| Transducer Cable Length | 20' |
