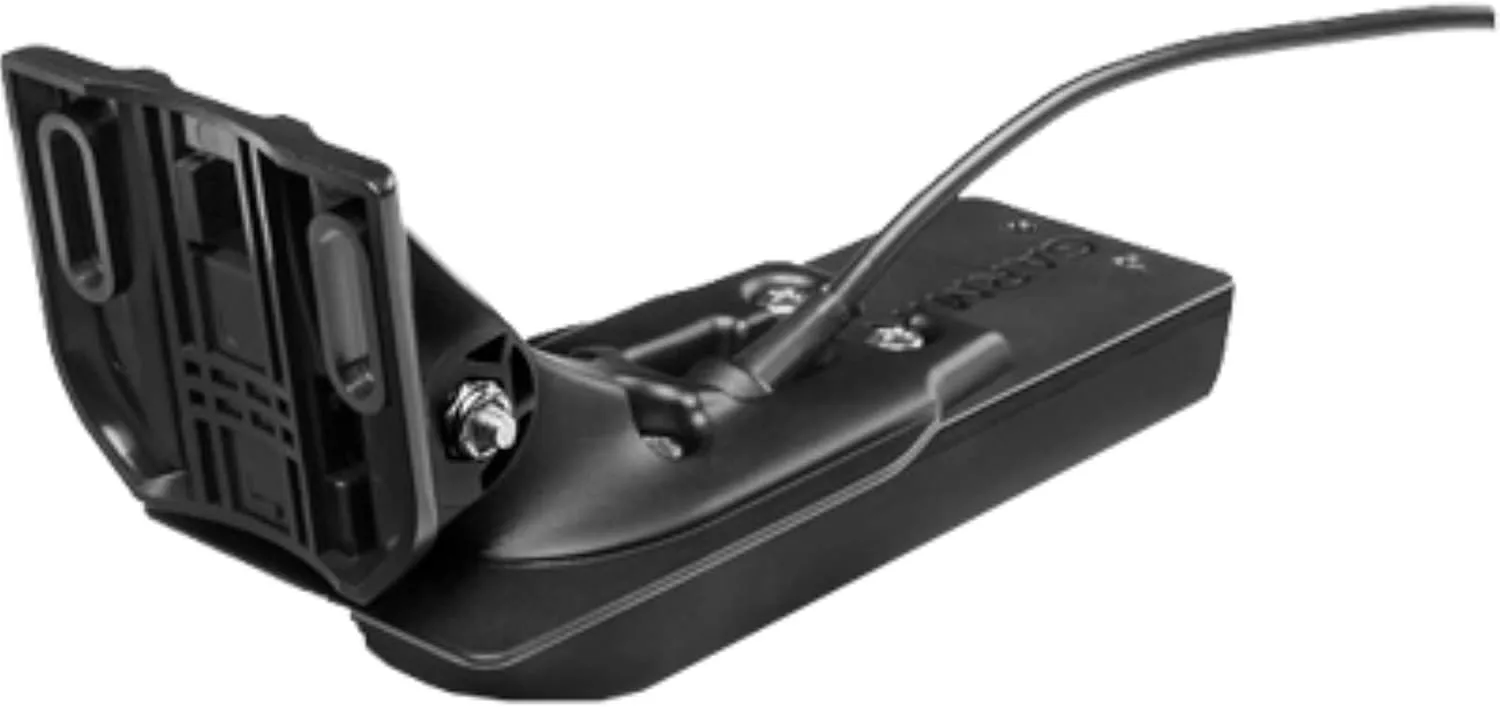

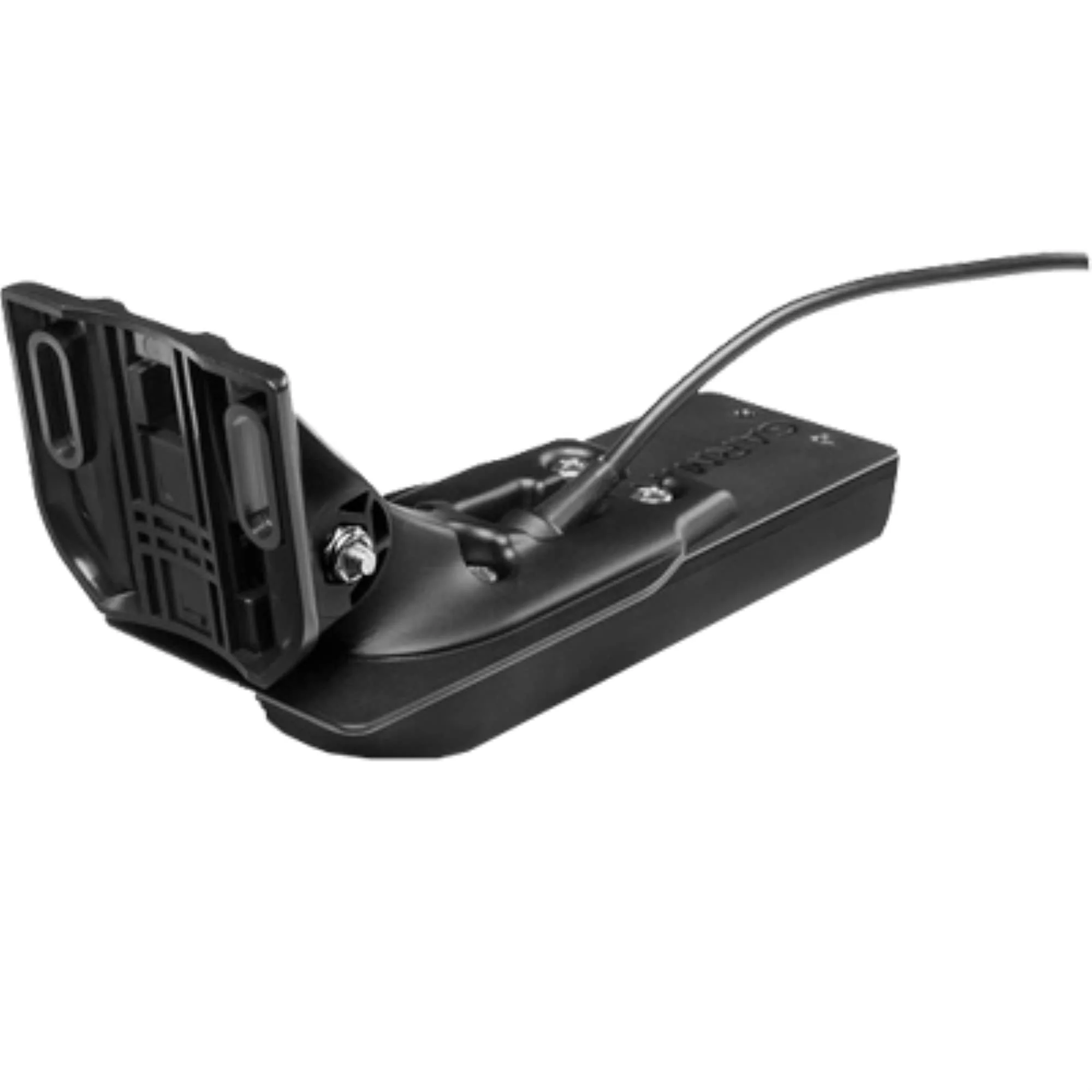

Garmin 010-12908-00 Ultra High-Definition Scanning Sonar All-in-One Transducer GT24UHD-TM with 800 kHz ClearVu Scanning
Customize
GT24UHD-TM Ultra High-Definition Scanning Sonar All-In-One Transducer All-In-One Transducer One transducer provides the highest resolution ClearVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar High wide CHIRP traditional sonar provides remarkably clear target separation and definition See incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü sonar Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts Ultra-clear View of What’s Below The GT24 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see the difference between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 — all in one transducer. Ultra Performance Ultra High-Definition scanning sonar shows you incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü scanning sonar. It’s easy to install with included transom and trolling motor mounts so you can start fishing faster. ¹For use with GPSMAP 8400xsv/8600xsv chartplotter/sonar combos WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Temperature: Yes , Speed Included: No , Pins: 8 , Mounting Style: Transom , Imaging: Standard/Down , Cable Length (Feet): 20'
- Fit type: Universal Fit
- CHIRP Beam width: 24°-16°; ClearVu Beam width: 0. 94°x60° at 800 kHz; CHIRP Maximum Depth: 800'; ClearVu Maximum Depth: 200'
- Frequency: CHIRP High Wide (150-240 kHz); UHD ClearVu CHIRP 800 kHz (760-880 kHz); Power Output: CHIRP Traditional 350 W and ClearVu 350 W
- See incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVu sonar
- High wide CHIRP traditional sonar provides remarkably clear target separation and definition
- One transducer provides the highest resolution ClearVu scanning sonar images available and amazingly clear high wide CHIRP traditional sonar
Specifications:
| Product Details | |
| Display Type | LCD |
| Model Name | GT24UHD-TM |
| Model Number | 010-12908-00 |
| Mounting Type | Trolling Motor Mount, Transom Mount |
| Power Source | Battery Powered |
| Screen Size | 8 Inches |
| Sizing & Dimensions | |
| Height | 3.3 inches |
| Length | 7.8 inches |
| Product Dimensions | 7.8 x 6.4 x 3.3 inches |
| Weight | 1.8 pounds |
| Width | 6.4 inches |
| Technical Specifications | |
| Cable Length (Feet) | 240 inches |
| Imaging | Standard/Down |
| Maximum measuring depth | 200 Feet |
| Pins | 8 |
| Speed Included | No |
| Temperature | Yes |
