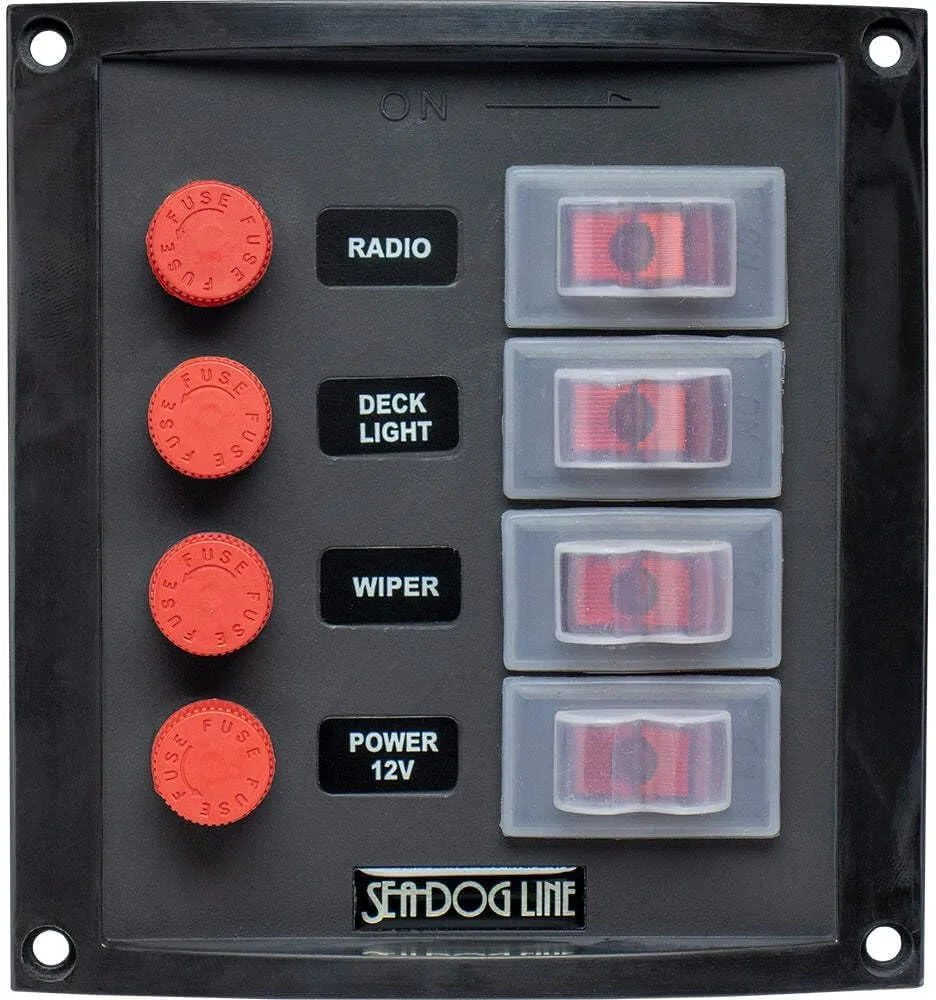

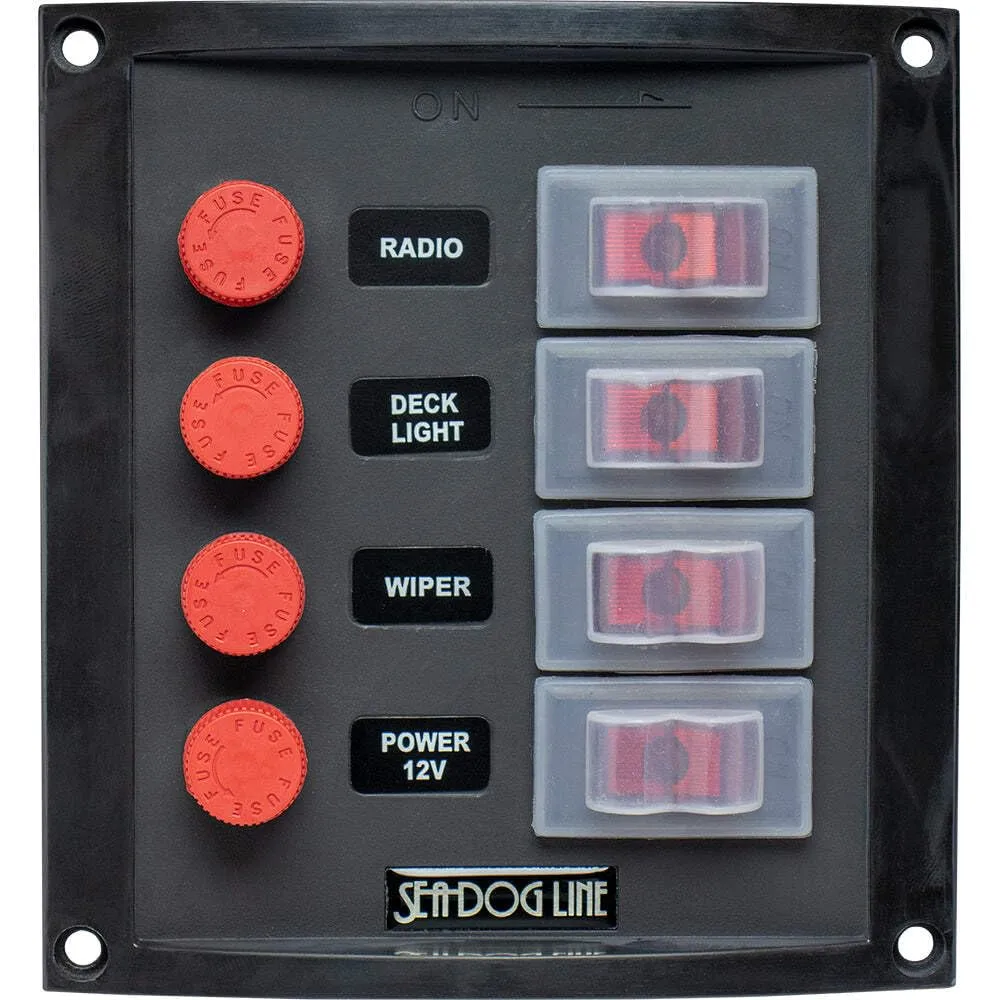

Sea-Dog Splash Guard Switch Panel Vertical - 4 Switch
Customize
Splash Guard Switch Panel Vertical - 4 Switch The Splash Guard Vertical 4-Gang Rocker Switch Panel features four 15A 12VDC illuminated SPST On/Off rocker switches and four fuse holders for use with standard AGC 1/4” x 1-1/4” glass style fuses. Individual circuit 10A max. 37A total. The addition of splash guard switch covers make this panel ideal for use where the front might be subject to light spray or water (NOT designed for total immersion). These fire resistant panels are suitable for use in engine room compartments. Includes a mounting gasket and a sheet of 20 preprinted decals to customize to your specific application. Constructed of injection molded nylon. Installs with four #6 RH fasteners (not included). CE compliant. 12VDC. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . The SEA DOG CORP vertical 4-gang panel is the perfect switch or switch accessory that you need to keep with your ever expanding tool kit of boat supplies.
- Material Fire resistant injection molded nylon construction
- 424016-1 vertical 4-gang panel
- Series splash garde
Specifications:
| Materials & Construction | |
| Color | Multicolor |
| Material | Plastic |
| Product Details | |
| Included Components | SWITCHES |
| Model Name | SEA DOG Splash Garde Vertical 4-Gang Panel |
| Number of Items | 1 |
| Size | One Size |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3 inches |
| Item Package Dimensions L x W x H | 9.5 x 6.75 x 3 inches |
| Length | 9.5 inches |
| Weight | 0.6 pounds |
| Width | 6.75 inches |
| Technical Specifications | |
| Construction | Fire resistant injection molded nylon; includes mounting gasket and 20 preprinted decals; installs with four #6 RH fasteners (not included); CE compliant |
| Electrical | Four 15A 12VDC illuminated SPST On/Off rocker switches; four fuse holders for AGC 1/4" x 1-1/4" glass fuses; individual circuit 10A max, 37A total; 12VDC |
