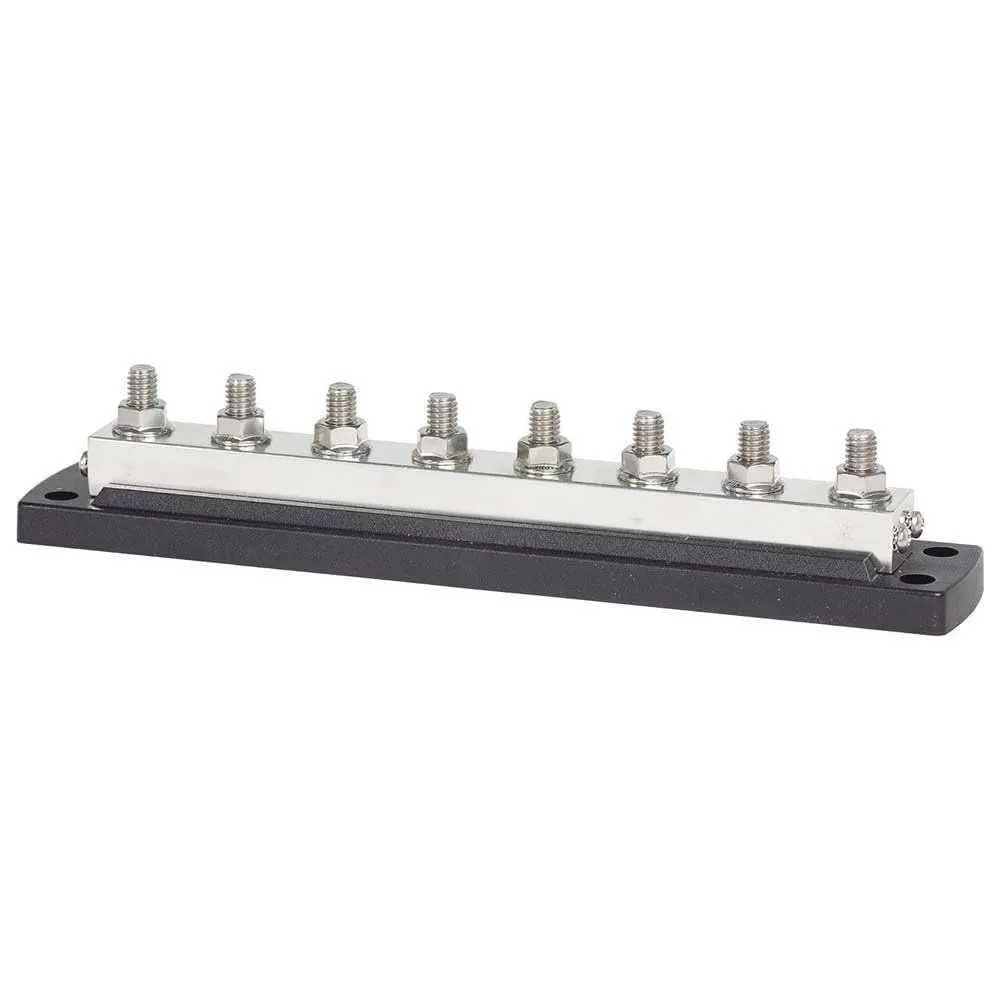

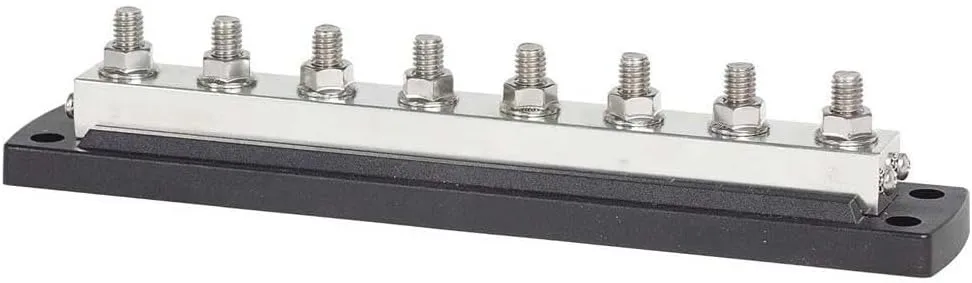

Blue Sea 2107 PowerBar 600AMP Cable Connector - 8 x 3/8" 16 Stud Terminal
Customize
2107 PowerBar 600AMP Cable Connector - 8 x 3/8" 16 Stud Terminal. Continuous Rating: 545A AC / 600A DC. Maximum Voltage: 300 V AC / 48 V DC. Number of terminal studs: 8. Terminal Type: 3/8" - 16 stud. Reinforced polycarbonate base with tin plated pure electrical copper for maximum conductivity. 4 mounting holes accept #10 (M5) screws. Compatible with electric vehicles, power tools, electric scooters, e-bikes and other high-power devices. Package and item dimensions and weights: Item Dimensions LxWxH: 13 x 3 x 3 inches; Item Weight: 2.8 Pounds; Item Package Dimensions L x W x H: 12.64 x 2.44 x 2.24 inches; Package Weight: 2.75 Pounds. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Continuous Rating: 545A AC/ 600A DC
- Max voltage: 300VAC/ 48VDC
- 4 mounting holes accept #10 (M5) screws
- Reinforced polycarbonate base with tin plated pure electrical copper for maximum conductivity
- 600A PowerBar with eight 3/8" terminal studs
Specifications:
| Materials & Construction | |
| Color | Beige |
| Material | Plastic |
| Product Details | |
| Compatible Devices | Electric Vehicles, Power Tools, Electric Scooters, E-bikes, Other High-Power Devices |
| Connectivity Technology | Direct Wired (Screw Terminal) |
| Connector Type | Screw |
| Included Components | POWERBAR 600 AMP 8X3/8-16 |
| Model Name | POWERBAR 600 AMP 8X3/8-16 |
| Number of Items | 1 |
| Size | 600A |
| Style | 8 X 3/8" Studs(600a) |
| Sizing & Dimensions | |
| Height | 3 inches |
| Item Dimensions Lx Wx H | 13 x 3 x 3 inches |
| Item Package Dimensions L x W x H | 12.64 x 2.44 x 2.24 inches |
| Length | 13 inches |
| Product Dimensions | 13 x 3 x 3 inches |
| Weight | 2.8 pounds |
| Width | 3 inches |
| Technical Specifications | |
| Amperage | 600 Amps |
| Input Voltage | 48 Volts |
| Warranty | LIMITED WARRANTY |
| Wattage | 2.88E+3 |
