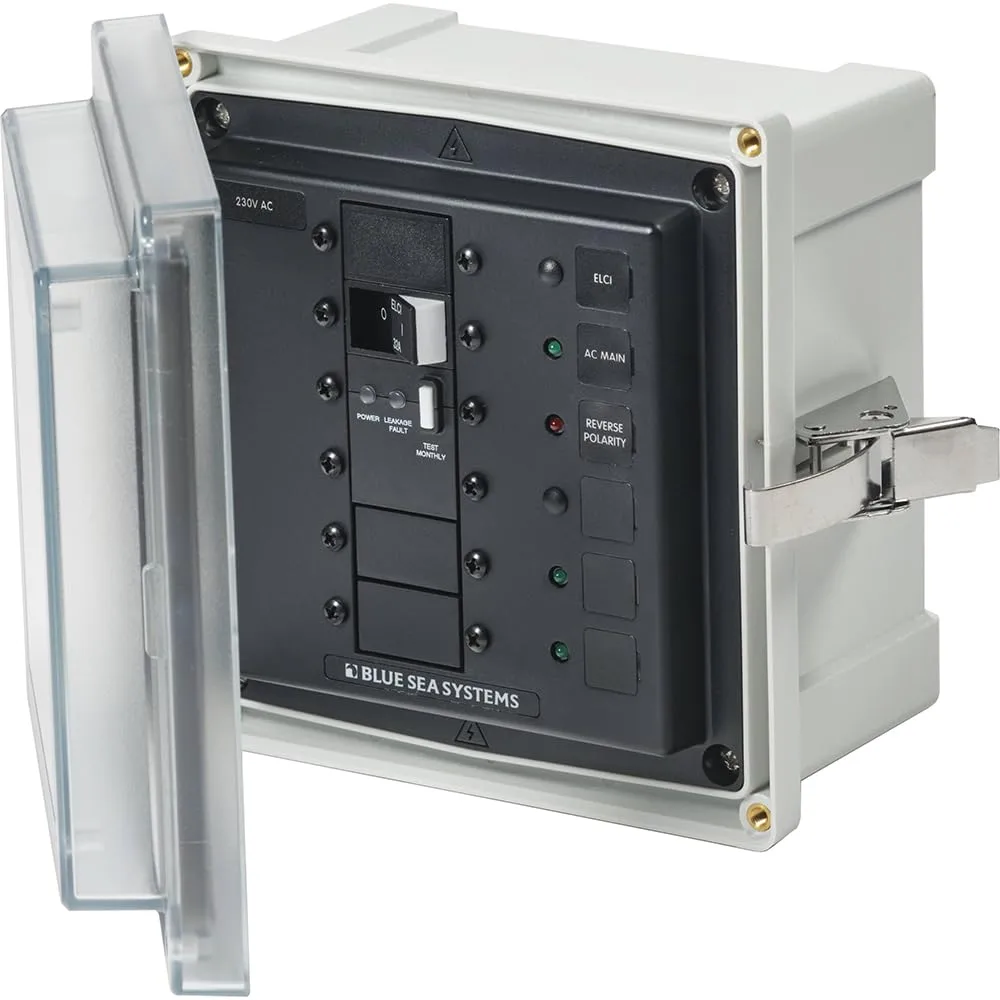

Blue Sea 3123 - SMS Panel Enclosure w/ELCI (32A) & 3 Blanks - 230V AC
Customize
3123 - SMS Panel Enclosure with ELCI (32A) & 3 Blanks - 230V AC The 3123-panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet. Features: Blank apertures for custom breaker loading Glass-filled polycarbonate base Clear cover allows easy view of circuit breaker status Overlapping cover for strength and increased gasket protection Oversized, formed in place seamless PUR gasket Easily removable stainless steel hinge pin for unobstructed installation Stainless steel latch secures cover without penetrating the enclosure Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers Includes waterproof glands LED lights for backlighting and ON indication Technical Specifications: Circuit Breaker Type - 1 x ELCI (32A) Main 230V and 3 x Blanks Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm) Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm) LEDs Installed - 1 x Red (Reverse Polarity - 230V AC and 3 x Green ON (230V AC) In the Box: 3123 Enclosure Glands x 6 Labels Mounting hardware Instruction manual *Sold as an Individual Additional marketplace data: Manufacturer: Blue Sea Systems. UPC: 632085031237. Material: Plastic. AC Adapter Current: 32 Amps. Size: One Size. Item Weight: 4.07 Pounds. Item Dimensions LxWxH: 6 x 9 x 9 inches. Package Weight: 4.15 Pounds. Item Package Dimensions L x W x H: 9 x 9 x 7 inches.
- Great Product
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| AC Adapter Current | 32 Amps |
| Included Components | Great Product |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 9 inches |
| Item Dimensions Lx Wx H | 6 x 9 x 9 inches |
| Item Package Dimensions L x W x H | 9 x 9 x 7 inches |
| Length | 6 inches |
| Product Dimensions | 6 x 9 x 9 inches |
| Size | One Size |
| Weight | 4.07 pounds |
| Width | 9 inches |
| Technical Specifications | |
| AC Adapter Current | 32 Amps |
