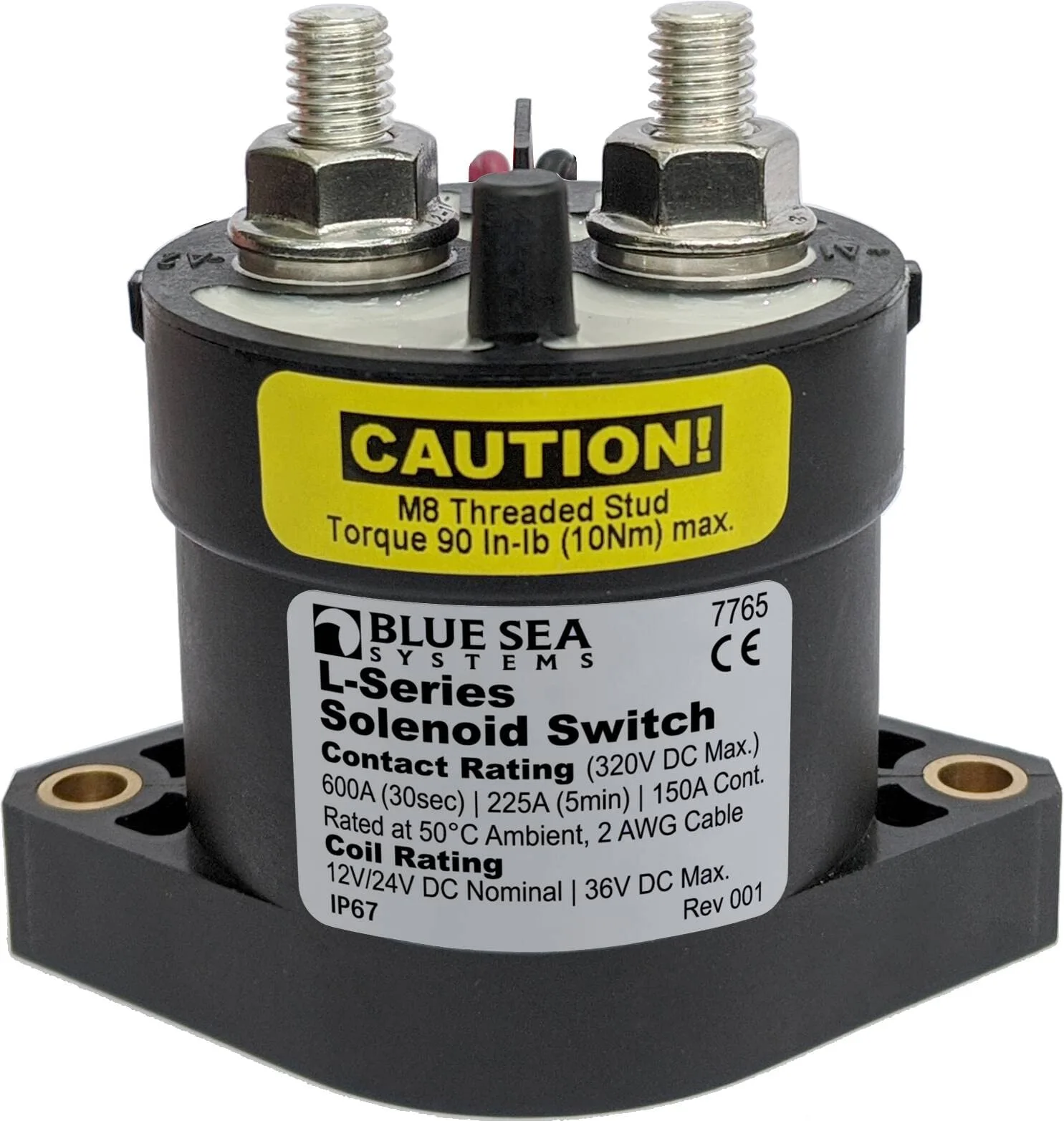

Blue Sea Systems 7765 L-Series Solenoid 150A 12/24V DC, Black
BLUE SEA SYSTEMS 7765 L-Series solenoid switch (150A) for 12/24V DC systems. IP67 rated, continuous-duty SPST normally-open contacts, hermetically sealed, ideal for marine power distribution and DC subpanels.
$302.99
Customize
UPC
632085077655 Available Quantity
0 GSA Item
No GSA Compliant
No Product Details
7765 L-Series Solenoid Switch - 150A - 12/24V DC. Ideal for switching DC subpanels, thrusters, windlass, inverters, and other medium-amp DC loads. Features continuous duty operation, SPST normally-open hermetically sealed contacts, coil control circuit that minimizes heating and amperage draw, and activation by a remote low-amperage ON/OFF switch. Rated IP67; Control Circuit Connection uses 22 AWG tinned wire. Terminal stud is M8 (accepts 5/16" terminals) with terminal stud torque up to 90 in-lb (10.17 Nm). Continuous rating: 150A; Intermittent rating: 225A (5 min); Cranking rating (30 sec): 600A. Coil voltage nominal 12/24V (control circuit 9-36V DC). Limited lifetime warranty.
- Rated IP67
- No external coil supression required
- Coil control circuit minimizes heating and amperage draw

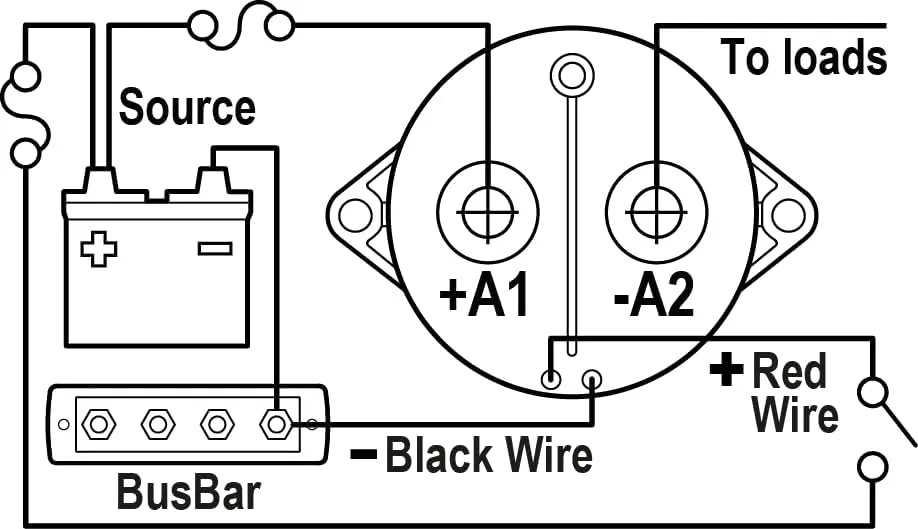

- Activated by a low amperage ON-OFF switch mounted anywhere
- Hermetically sealed contacts
- Continuous duty, SPST - Normally Open
- Control Circuit Connection: 22 AWG tinned wire, Contact Voltage: 320V DC, Max Voltage: 320V DC, Amperage Operating Current Continuous: 0.13A @ 12 V & 0.07A @ 24 V, Amperage Operating Current when changing state: 3.8A, Terminal Stud: M8 (accepts 5/16" terminals), Terminal Stud Torque: 90 in-lb (10.17 Nm) max, Control Circuit Voltage: 9-36V DC (12/24V nominal), Continuous Rating: 150A, Intermittent Rating: 225A (5 min), Cranking Rating 30 sec: 600A, Contact Form: SPST-NO
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Other |
| Product Details | |
| Coil Voltage | 24 Volts (DC) |
| Connector Type | Plug-In |
| Contact Current Rating | 150 Amps |
| Contact Material | Silver Copper |
| Contact Type | Normally Open |
| Current Rating | 150 Amps |
| Minimum Switching Voltage | 9 Volts (DC) |
| Mounting Type | DIN Rail Mount |
| Number of Terminals | 1 |
| Operation Mode | Automatic |
| Specification Met | IP67 |
| Wattage | 1.56 watts |
| Sizing & Dimensions | |
| Height | 7.32 inches |
| Length | 3.66 inches |
| Product Dimensions | 3.66 x 5.43 x 7.32 inches |
| Size | One Size |
| Weight | 0.95 pounds |
| Width | 5.43 inches |
| Technical Specifications | |
| Operation Mode | Automatic |
| Warranty | Limited Lifetime |
