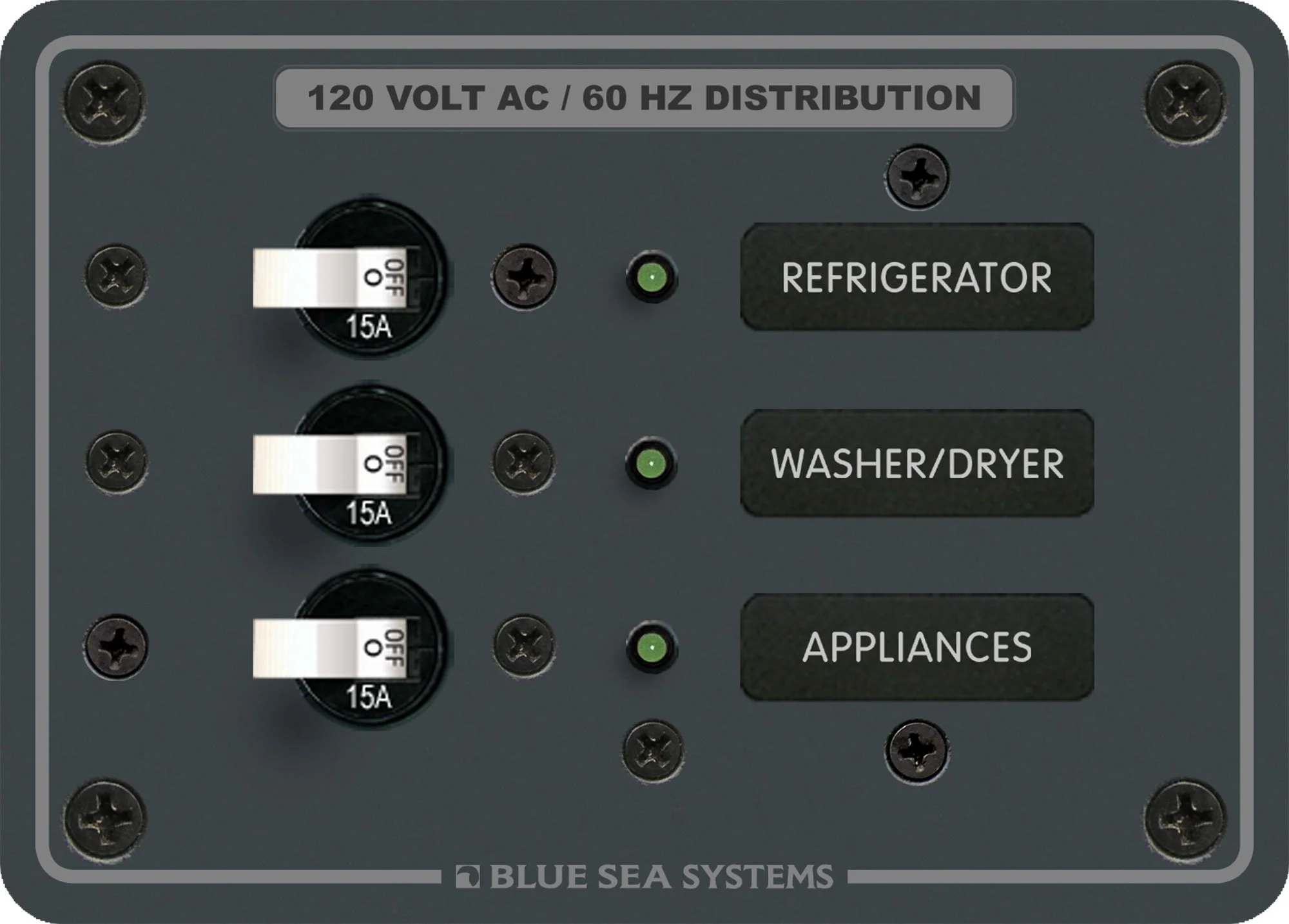

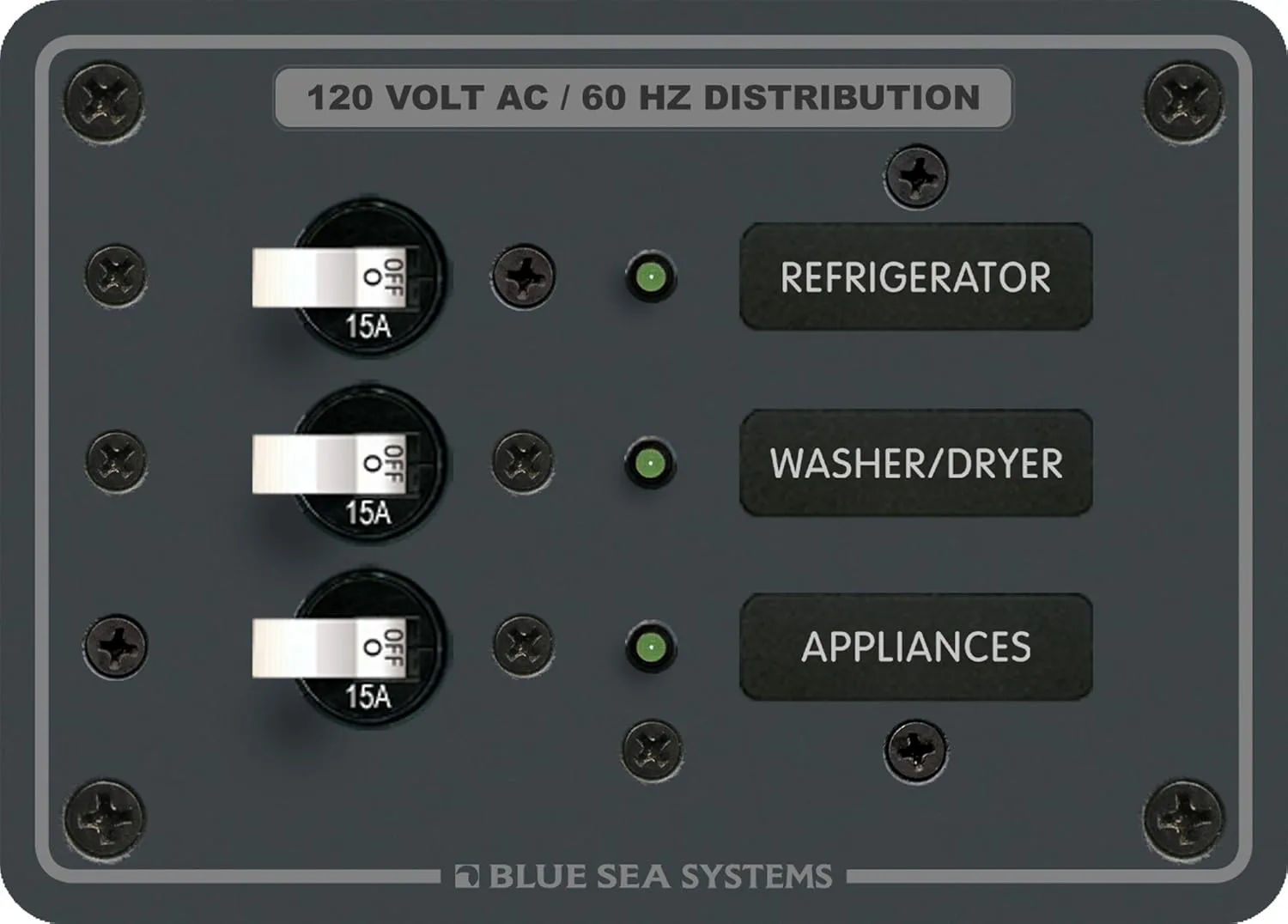

Blue Sea 8058 AC 3 Position Toggle Circuit Breaker Panel - White Switches
Customize
8058 AC 3 Position Toggle Circuit Breaker Panel - White Switches Features: All hot, neutral, and safety ground buses installed, fully pre-wired All circuit label positions are backlit on standard panels - No kit required "ON" indicating LEDs installed in all circuit posistions Maximum panel amperage - 100 Amperes Specifications: Positions: 3 Nominal Voltage: 120v AC Maximum Amperage: 100A Height: 3.75" Width: 5.25" Included: (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (1) 8031 Basic AC Panel Label Set - 30 Labels (3) 8034 LED - 120V AV Green WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., AC/DC: AC , Max Breaker Quantity: 3 , Voltage: 120v Additional marketplace details: Mounting Type: Panel Mount. Circuit Type: 3-way. Item dimensions L x W x H: 4 x 7 x 9 inches. Terminal: Screw. Connector Type: Quick Connect. Contact Type: Physical. Operating Voltage: 120 Volts. Current Rating: 15 Amps. Operation Mode: Toggle. Contact Material: Brass. International Protection Rating: IP54. Insulation Resistance: 1000 Megaohms. Includes three 15A white toggle breakers and LED indicators.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Beige |
| Material | Brass |
| Outer Material | Brass |
| Product Details | |
| Actuator Type | Toggle |
| Circuit Type | 3-way |
| Connector Type | Quick Connect |
| Contact Material | Brass |
| Contact Type | Physical |
| Current Rating | 15 Amps |
| Max Breaker Quantity | 3 |
| Mounting Type | Panel Mount |
| Number of Positions | 3 |
| Operation Mode | Toggle |
| Terminal | Screw |
| Voltage | 120v |
| Sizing & Dimensions | |
| Height | 9 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 7 x 9 inches |
| Size | One Size |
| Weight | 1.5 pounds |
| Width | 7 inches |
| Technical Specifications | |
| Connectivity Protocol | X-10 |
| Control Method | Touch |
| Included Components | (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A; (1) 8031 Basic AC Panel Label Set - 30 Labels; (3) 8034 LED - 120V AV Green |
| Insulation Resistance | 1000 Megaohms |
| International Protection Rating | IP54 |
| Operating Voltage | 120 Volts |
| Warranty | Warranty |
| Wattage | 1.2E+4 |
