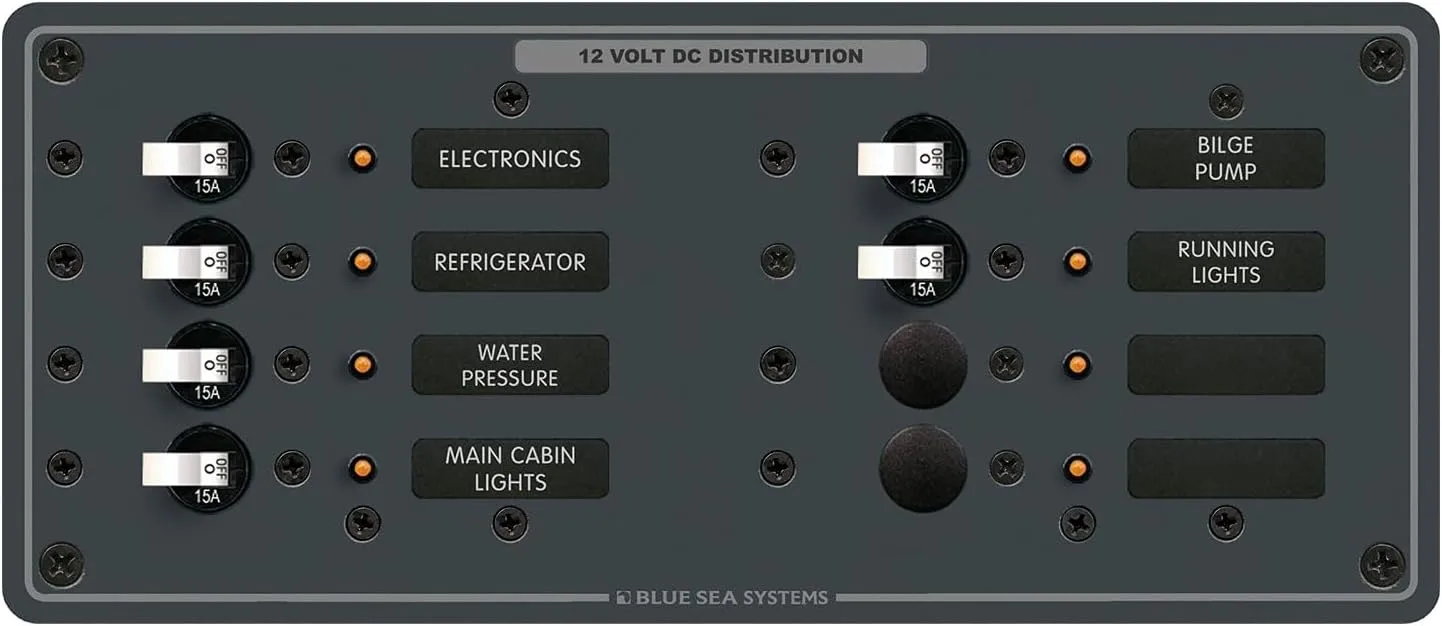

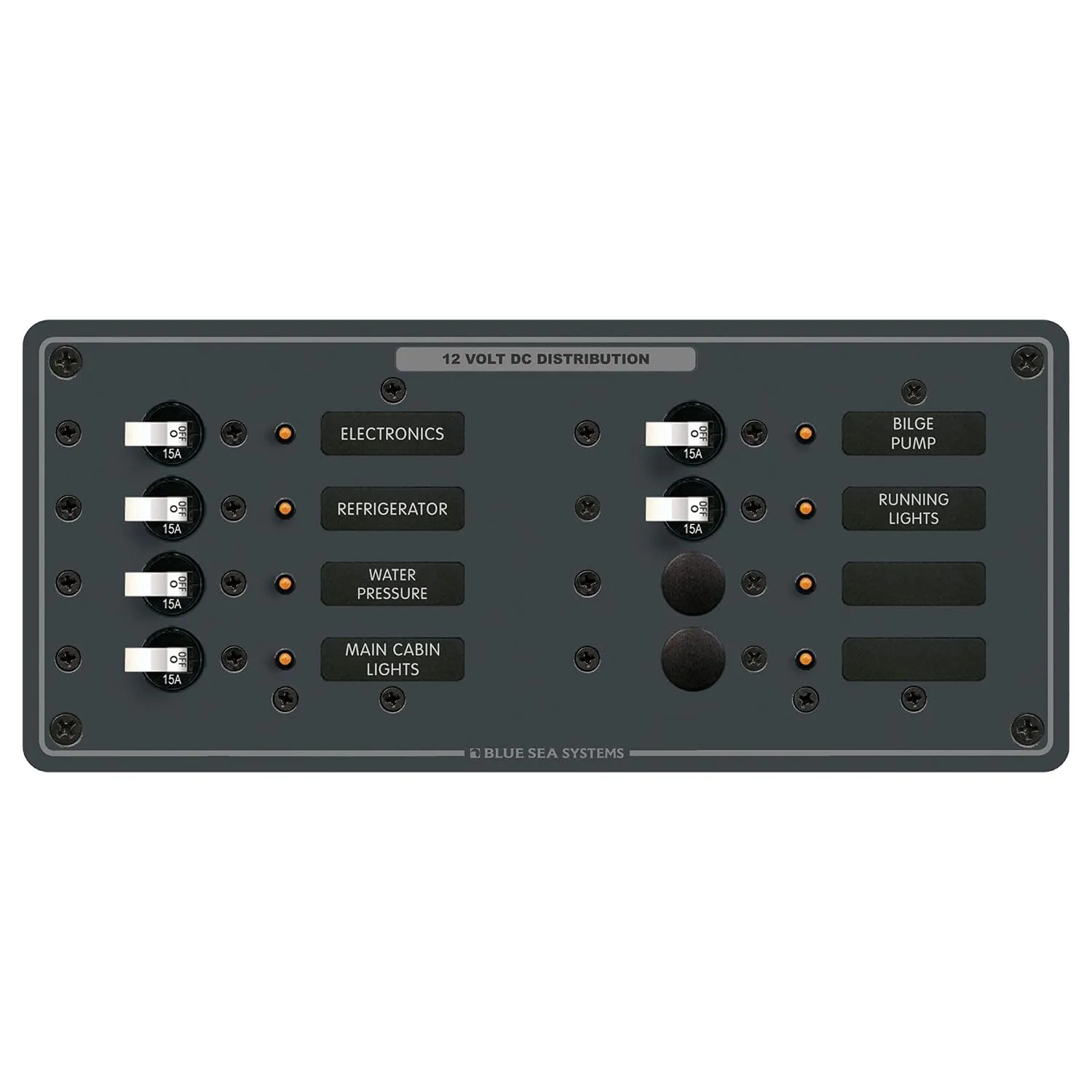

Blue Sea 8096 DC 6 Position Toggle Branch Circuit Breaker Panel - White Switches
Customize
8096 DC 6 Position Toggle Branch Circuit Breaker Panel - White Switches. Features: All positive, negative and grounding buses installed, fully pre-wired. Panels with meters include toggle switch for mounting up to 3 battery banks. All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters). All circuit label positions are backlit on standard panels - No kit required. "ON" indicating LEDs installed in all circuit positions. Specifications: Positions: 6. Nominal Voltage: 12v/24v. Maximum Amperage: 100A per bus. Height: 3.75". Width: 10.5". Depth: 2.5". Included: (6) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A. (1) 8030 Basic DC Panel Label Set - 30 Labels. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All positive, negative and grounding buses installed, fully pre-wired
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Product Details | |
| AC Adapter Current | 100 Amps |
| Ac/dc | Dc |
| Global Trade Identification Number | 00632085080969 |
| Included Components | Blue Sea Systems 8096 DC 6 Position |
| Max Breaker Quantity | 6 |
| Number Of Circuits | 6 |
| Number of Items | 1 |
| Size | One Size |
| UPC | 632085080969 |
| Voltage | 12/24v |
| Sizing & Dimensions | |
| Height | 5 inches |
| Item Dimensions Lx Wx H | 12 x 9 x 5 inches |
| Length | 12 inches |
| Product Dimensions | 12 x 9 x 5 inches |
| Weight | 2.25 pounds |
| Width | 9 inches |
| Technical Specifications | |
| AC Adapter Current | 100 Amps |
| Warranty | Warranty |
