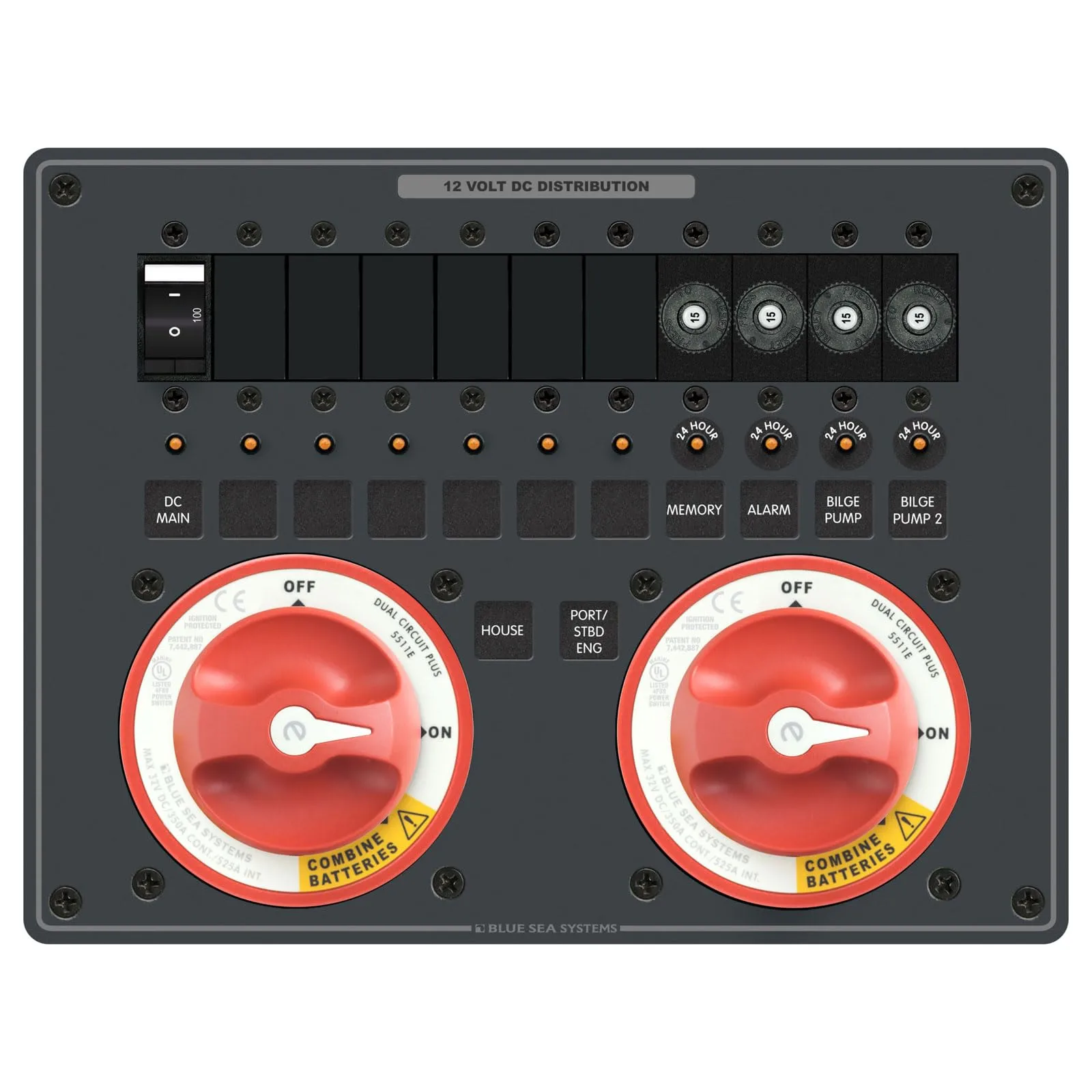

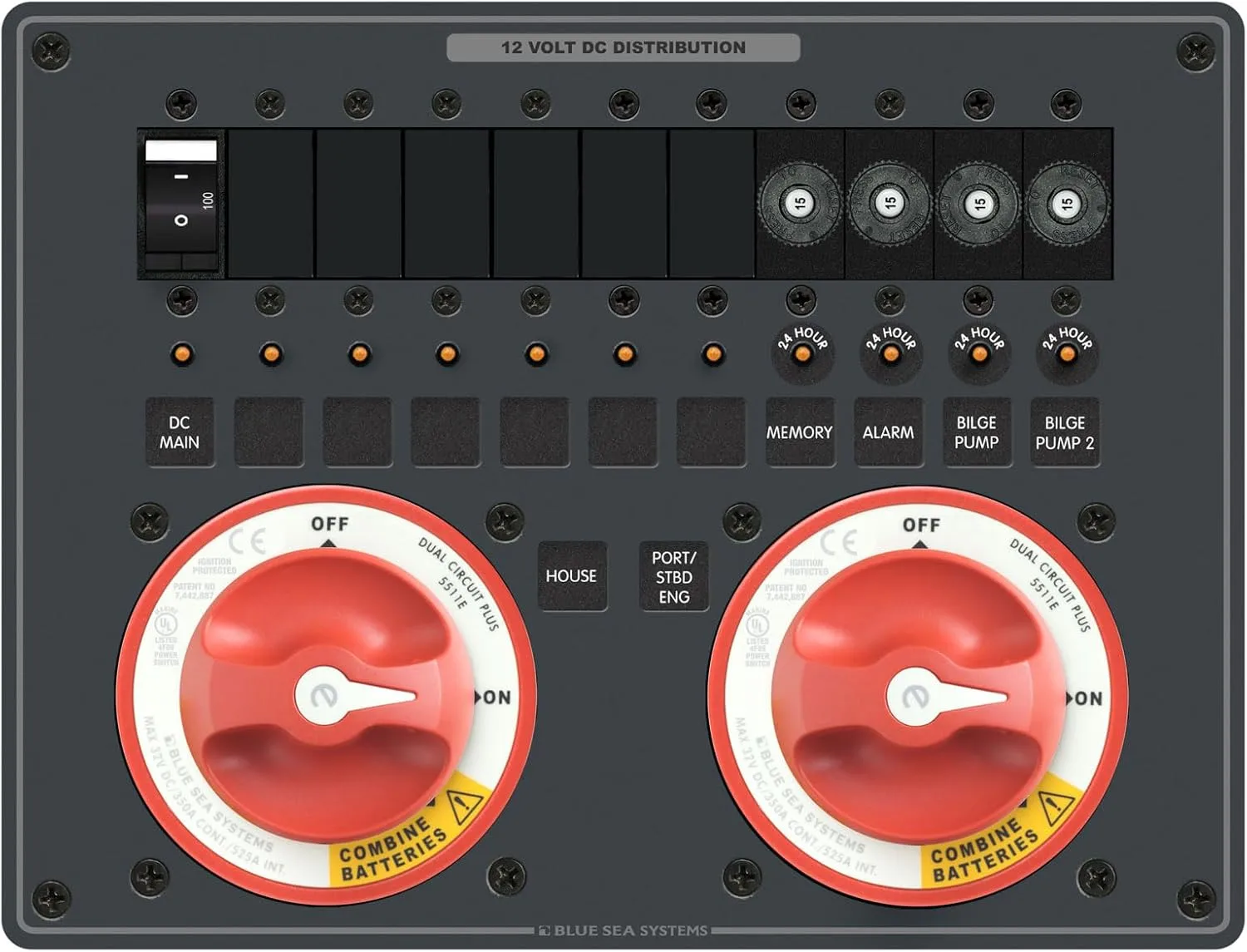

Blue Sea Systems 8693 Triple Battery Bank Management Panel for Twin Engine Configurations
Customize
e-Series Dual Circuit Plus 2 PN. 5511e (1) 100A C-Series Flat Rocker Circuit Breaker (4) 15A Push Button Thermal Circuit Breakers Designed for twin engine configurations Provides 24 hour circuit protection Provides main DC circuit protection in addition to high ampere load protection Protects electronics from sags and spikes caused by engine cranking Allows emergency cross connect between isolated battery banks Isolates the Engine circuit from the House circuit Simplifies battery switch operation Allows independent battery discharge Addition of an Automatic Charging Relay automates charging both batteries Includes 4218 - Square Format Labels and 4140 - 24 Hour Round Labels. Includes [2] e-Series, Dual Circuit Plus Battery Switches PN 5511e. Designed for twin engine configurations. Visible indication of blown condition. Package and shipping details: Package Dimensions 11.46 x 9.13 x 5.16 inches, Package Weight ~4.37 pounds. Constructed with stainless steel contact material and screw terminals; actuator is push button with ON-OFF operation mode. Proposition 65 Warning applies.
- AGC 25 per retail package
- Visible indication of blown condition
- Designed for twin engine configurations
- Includes [2] e-Series, Dual Circuit Plus Battery Switches PN 5511e
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw Terminals |
| Contact Material | Stainless Steel |
| Contact Type | Normally Open |
| Control Method | Touch |
| Global Trade Identification Number | 00632085086930 |
| Included Components | Blue Sea 8693 e-Series Dual Circuit Plus 2 5511e |
| Model Name | Blue Sea 8693 e-Series Dual Circuit Plus 2 5511e |
| Number of Items | 1 |
| Operation Mode | ON-OFF |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| UPC | 632085086930 118462873114 |
| Warranty Description | Warranty |
| Wattage | 5 watts |
| Sizing & Dimensions | |
| Height | 6 inches |
| Length | 12 inches |
| Product Dimensions | 12 x 9 x 6 inches |
| Size | One Size |
| Weight | 0.01 ounces |
| Width | 9 inches |
| Technical Specifications | |
| Contact Material | Stainless Steel |
| Operation Mode | ON-OFF |
| Terminal | Screw |
| Warranty | Warranty |
| Wattage | 5 watts |
