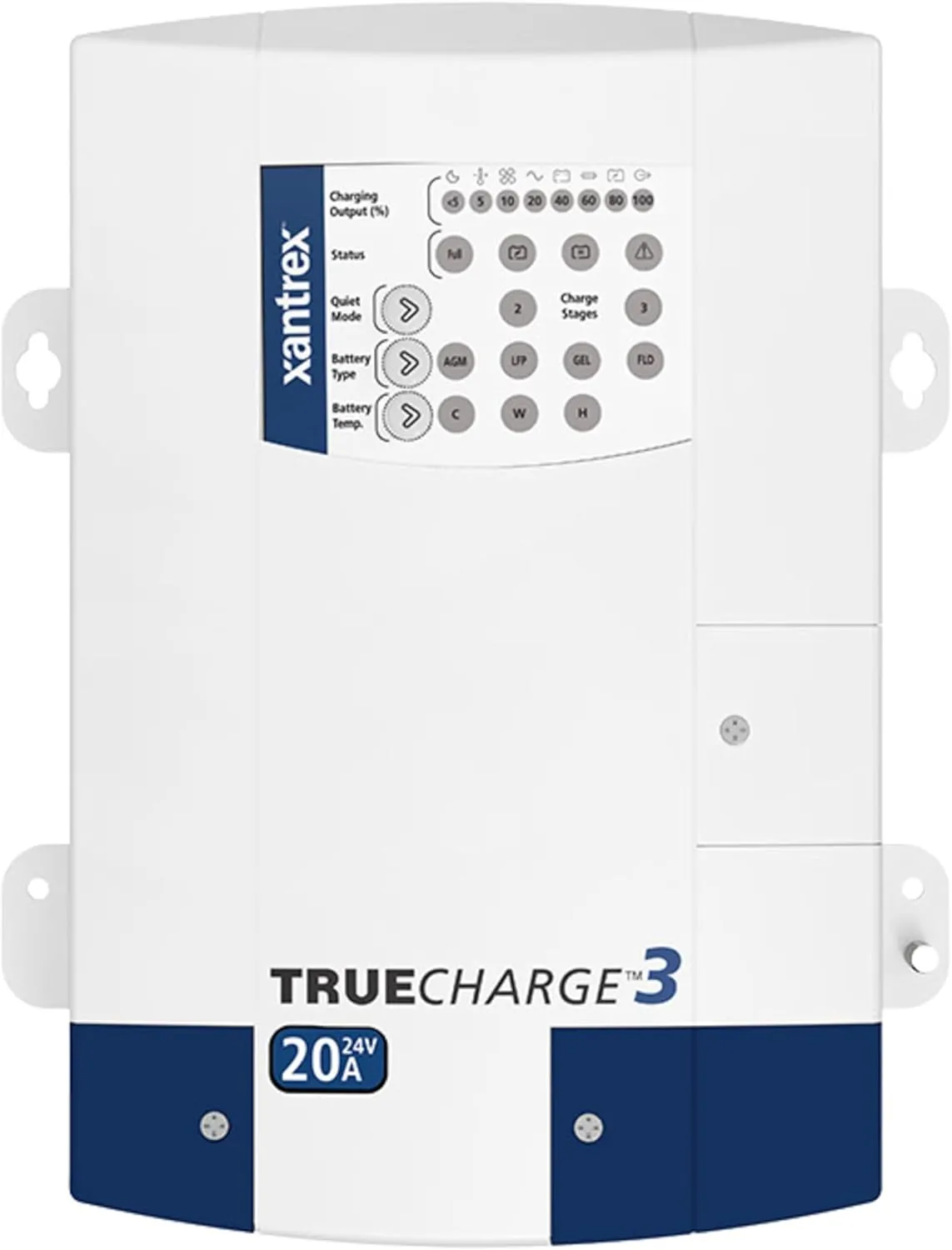

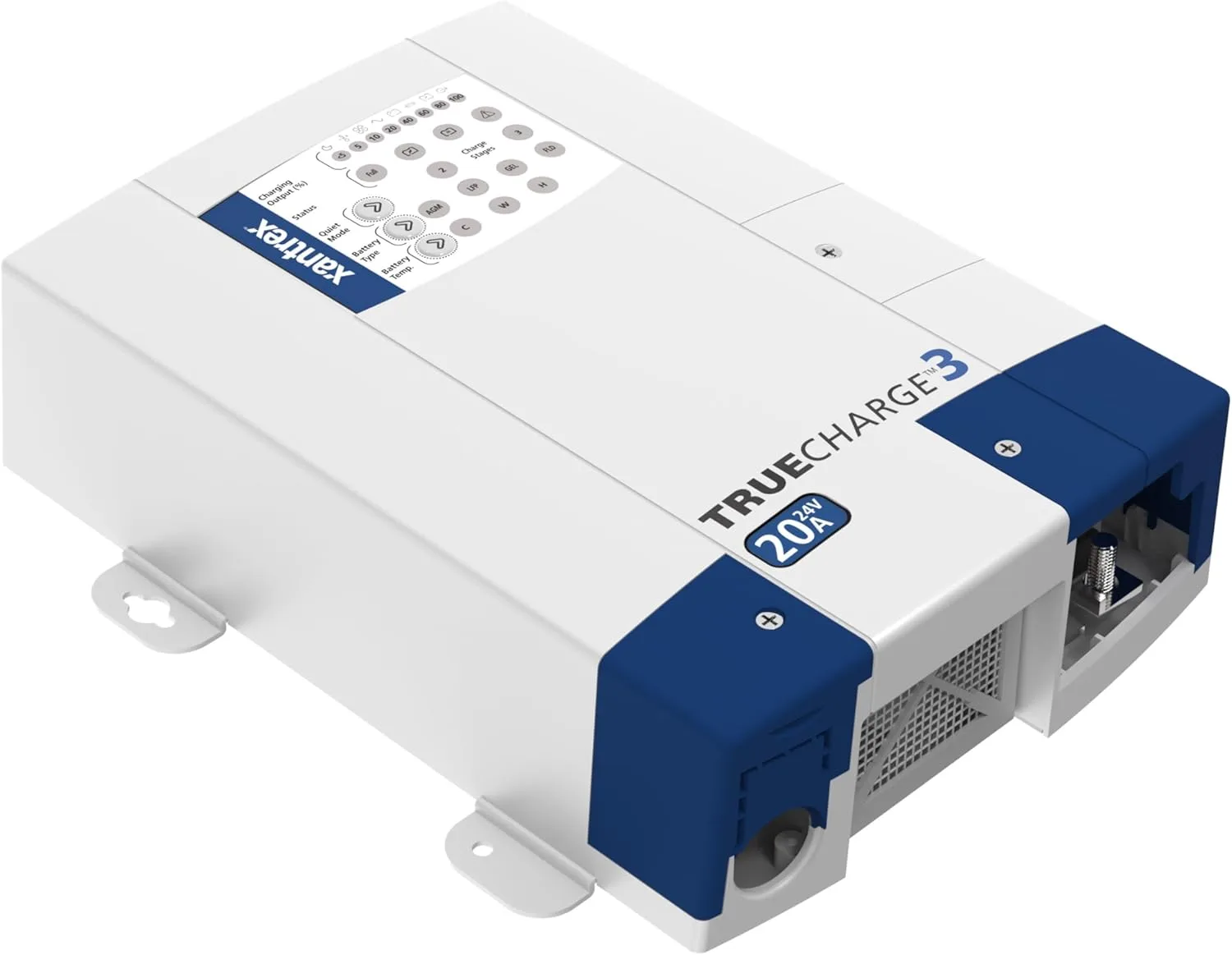

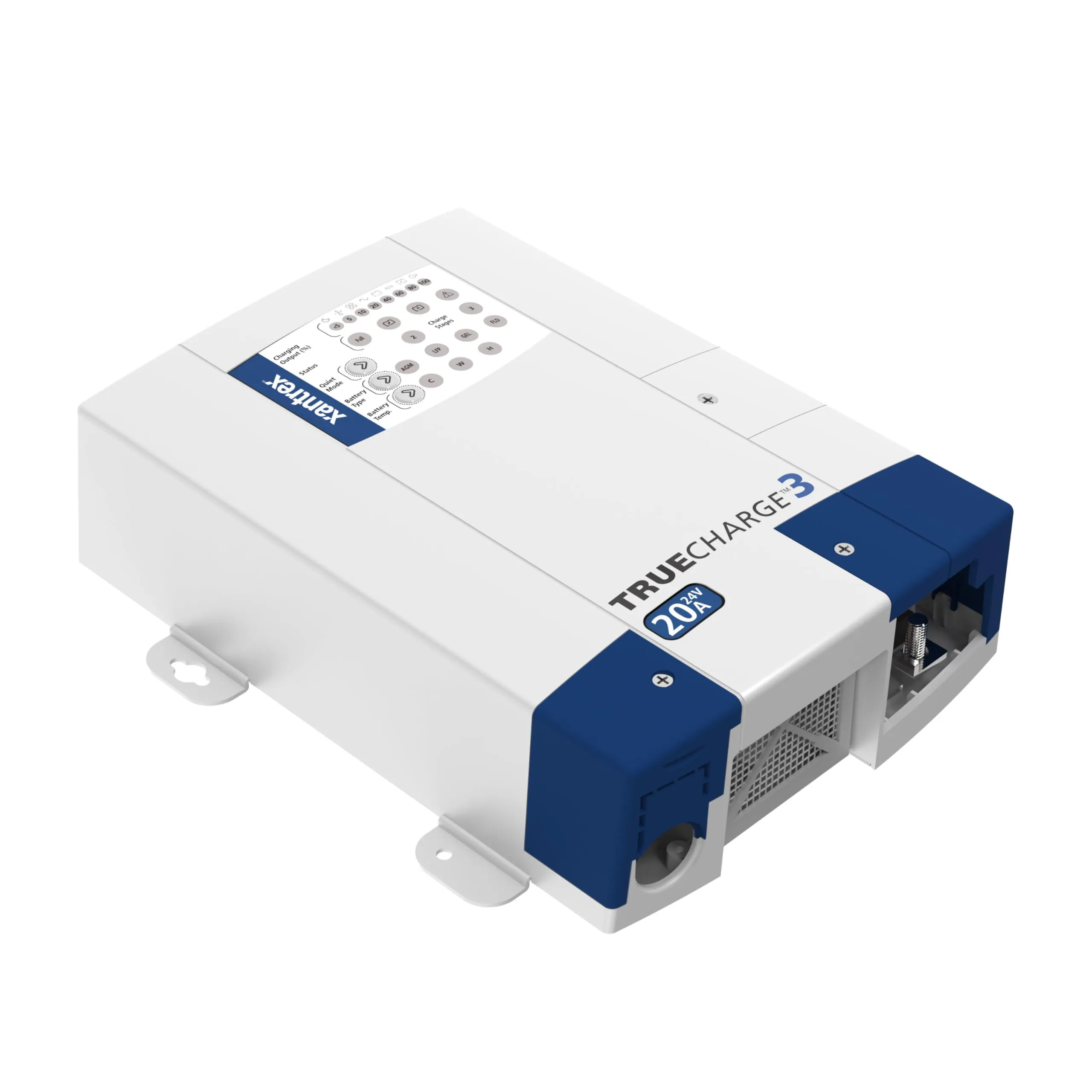

Xantrex 804-2420-10 TRUEcharge3 Multistage Charger - 24V/20A, Hardwire, 3-Bank

TRUEcharge3 24V/20A 3-bank battery charger by Xantrex. TRUEcharge3 chargers offer an ultra-compact footprint with power factor corrected multistage charging and low electrical interference. Designed for recreational and commercial marine/RV applications, TRUEcharge3 accepts wide-range AC input (90–265 Vac, 47–63 Hz) for global use. The charger is drip-proof for flexible mounting positions and includes microprocessor-controlled multistage charging with settings for flooded, gel, AGM, and LiFePO4 (Lithium-Ion) batteries. Features include battery equalization, parallel stacking (remote panel required), quiet mode, and the ability to recover deeply discharged batteries. Built-in protections include reverse-battery polarity protection, DC over-voltage protection, over-temperature protection, circuit breaker protection, and surge/spike protection. Electrical specs include nominal 20 A output current per bank, charge voltages dependent on settings (e.g., charge 28.4–31.0 Vdc; float 26.8–27.6 Vdc), and three positive battery terminals plus a common negative. Compact dimensions and lightweight design make this charger suitable for tight installations. Regulatory approvals include CSA, UL, IEC, FCC, ABYC, and DOE/CEC energy efficiency compliance.

• Small footprint and ultra-compact design
• Drip proof design for flexible mounting and safety in marine environments
• Universal input voltage capable 95-265 Vac, 47-63 Hz
• Parallel Stacking to allow two chargers to work together to combine the output current, achieving up to 120A for large battery banks; Remote panel 808-8040-10 required for stacking
• Lithium-Ion Compatible Connect TrueCharge3 battery charger with Lithium, flooded, gel, AGM
