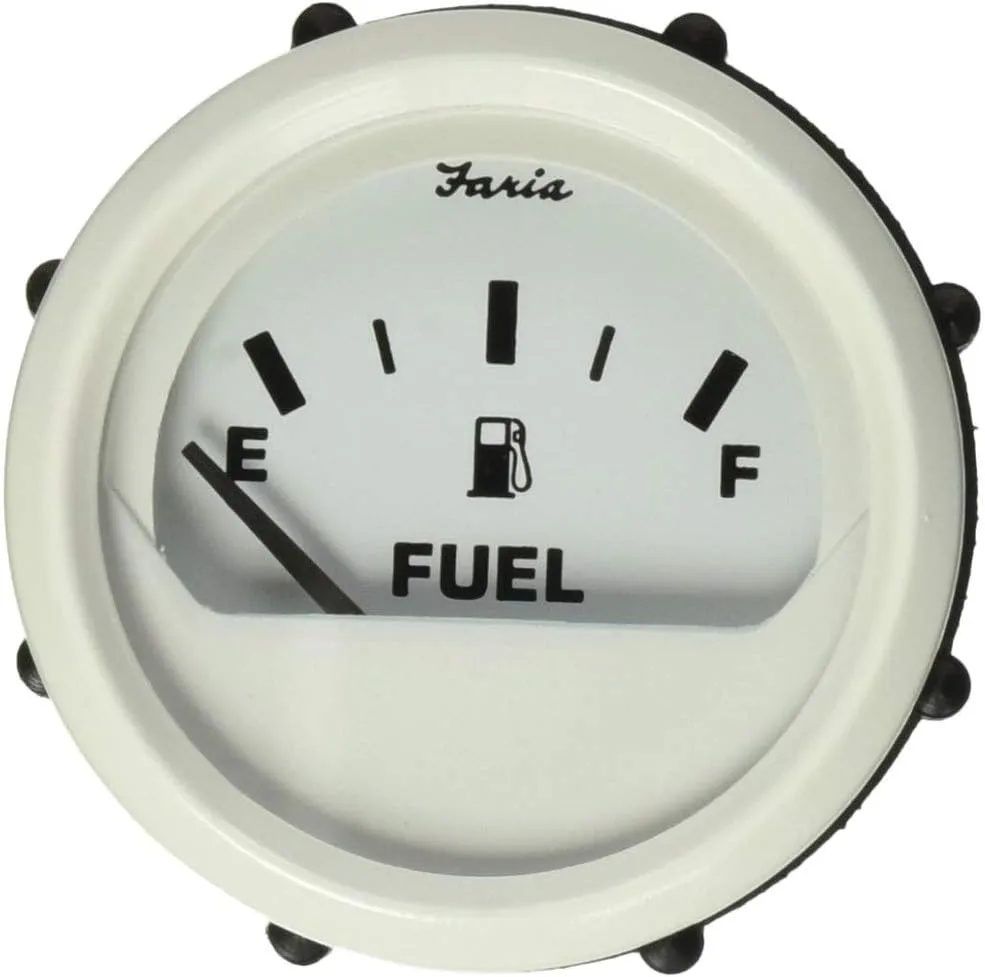

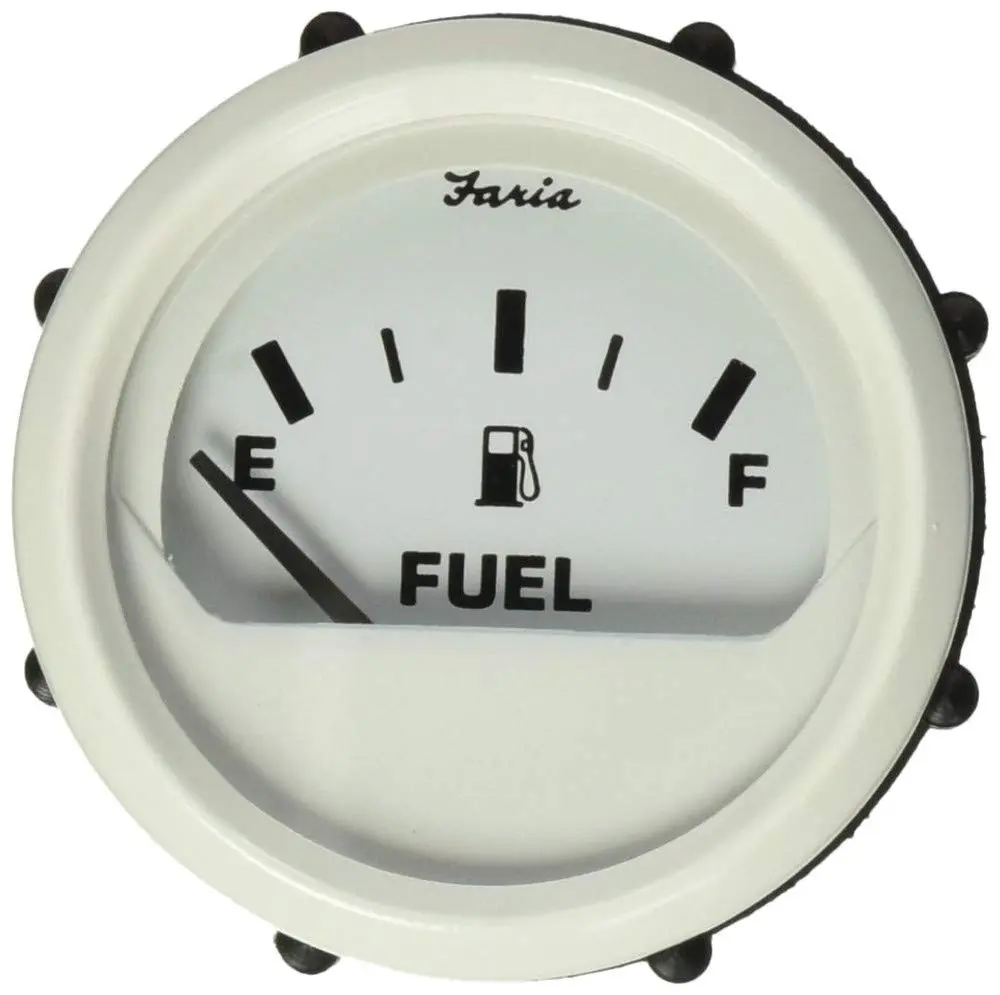

Faria Beede 13101 Dress White 2" Fuel Level Gauge (E-1/2-F)
Customize
Dress White 2" Fuel Level Gauge (E-1/2-F). Perimeter-lighted white dial with bold black graphics, white aluminum bezel, contoured black pointer and flat glass lens. Fuel Level gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc. As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel. 2" - Hole Size: 2.0625" (53mm). Specifications: 240 to 33 OHM. Anti-scratch glass lens. 12 VDC negative ground. Can be adapted for 24 VDC systems. Factory P/N GP9389. Sold as an individual (gauge cover not included). Faria's Dress White-series provides an attractive perimeter-lighted white dial with bold black graphics and an elegant white aluminum bezel for a classic marine panel look. Size 2 gauge requires a 2.0625" (53 mm) mounting hole.
- Size 2 gauge requires a 2.0625" (53 mm) mounting hole
- Flat glass lens
- White aluminum bezel
- Bold black graphics
- Perimeter-lighted white dial with contoured black pointer
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Aluminum |
| Outer Material | Aluminum |
| Product Details | |
| Box Set | No |
| Exterior | Brushed |
| Gauge Size | 2" |
| Gauge Type | Fuel Level |
| Model Number | 13101 |
| OEM Part Number | 705857 |
| Screen Size | 4 Inches |
| Series | Dress White |
| Voltage - Input Range (Volts) | 12/24 V |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 4 x 4 inches |
| Product Weight | 0.26 pounds |
| Size | 2" |
| Weight | 4.16 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Exterior | Brushed |
| Lift Type | Inverse |
| OEM Part Number | 705857 |
| UPC | 759266131019 |
