FARIA BEEDE Faria 13102 Dress Pressure Gauge (80 PSI) - 2", White
Customize

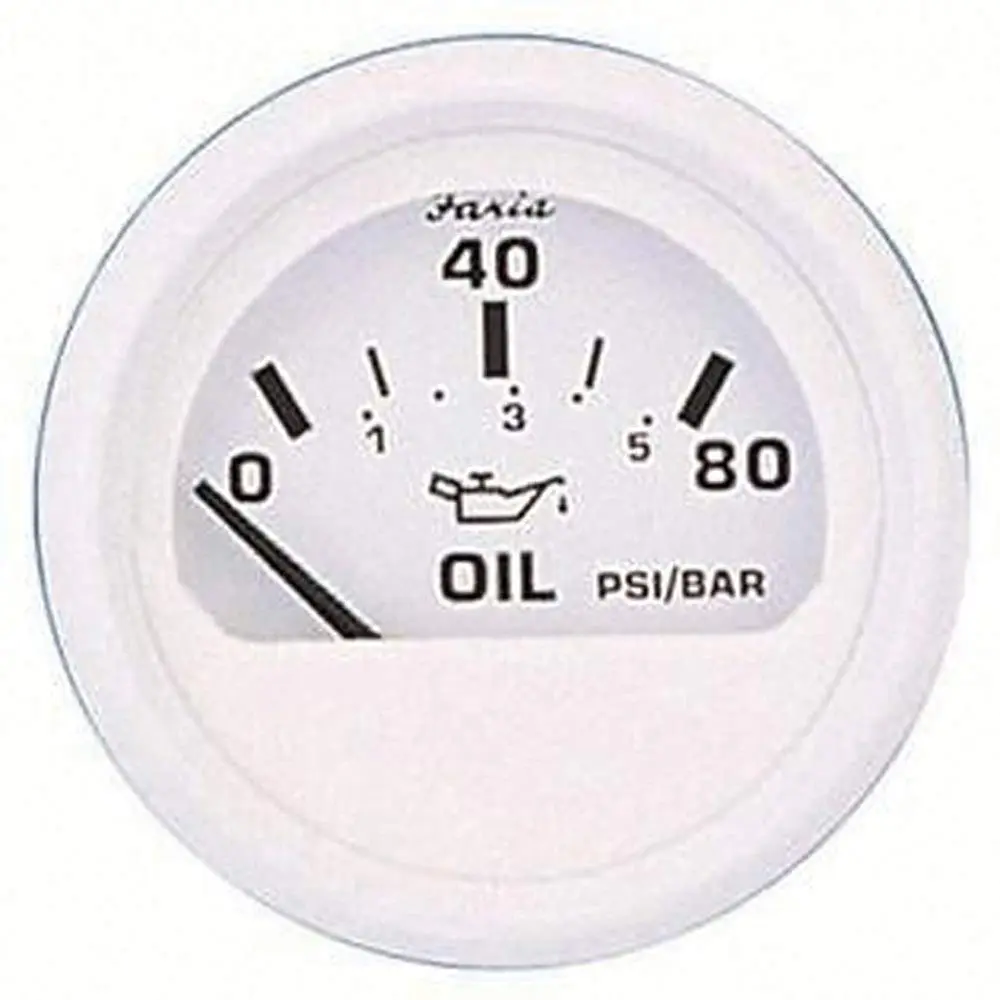

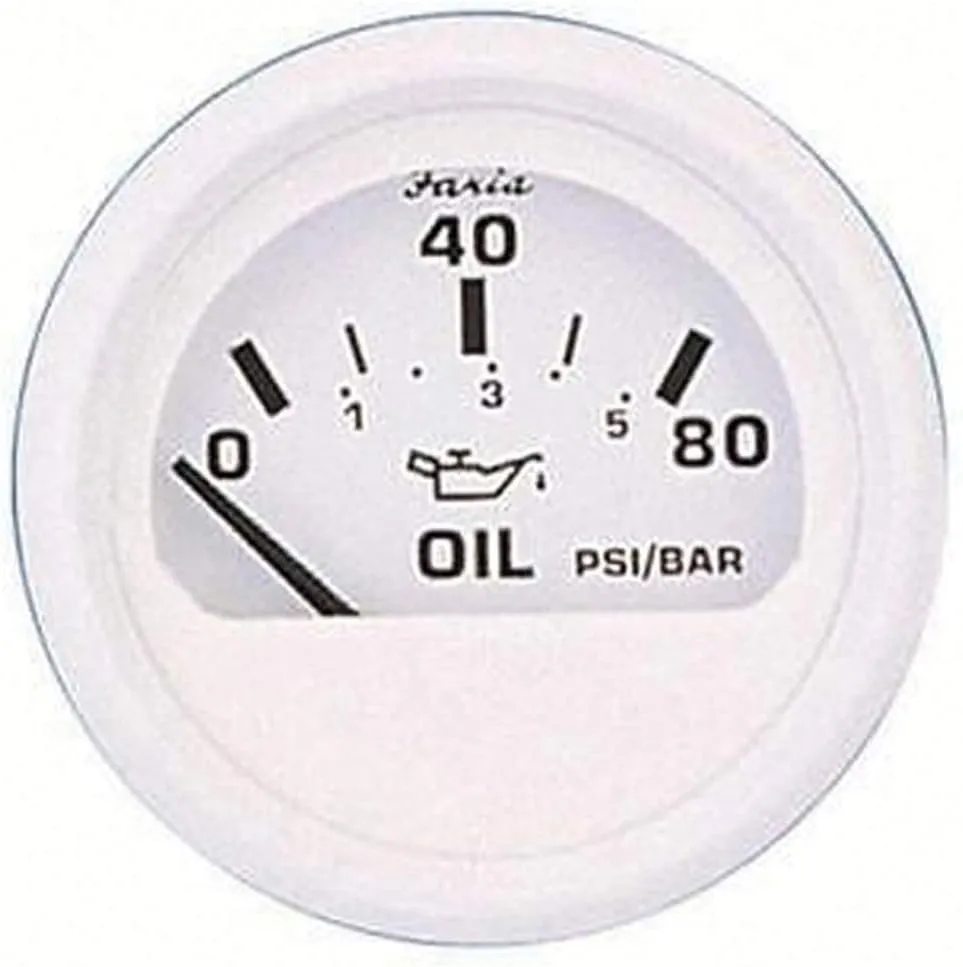

Dress White 2" Oil Pressure Gauge (80 PSI). Perimeter-lighted White dial with bold Black graphics, White aluminum bezel, contoured Black pointer and flat glass lens. A pressure gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc... As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the change in pressure. 2" - Hole size: 2.0625" (53mm). Specifications: Anti-scratch glass lens, 12 VDC negative ground, Can be adapted for 24 VDC systems, Dual Scale - Metric and Imperial. Factory P/N GP9573. Sold as an Individual. Gauge Cover not Included. Faria Beede Instruments designs rugged, reliable instrumentation that ranges from heavy-duty applications (military HMMWV, construction equipment) to marine and RV styling, providing accurate pressure monitoring for vehicles and vessels.
- leading provider of Remote Asset Management
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Aluminum, Glass |
| Outer Material | Aluminum |
| Product Details | |
| Box Set | No |
| Exterior | Brushed |
| Gauge Size | 2" |
| Gauge Type | Oil Pressure |
| Is Discontinued By Manufacturer | No |
| Item model number | 13102 |
| Lift Type | Inverse |
| Manufacturer Part No | 13102 |
| Model | DRESS WHITE OIL PRESS GAUGE |
| OEM Part Number | 705858 |
| Product Dimensions | 5 x 4 x 4 inches |
| Series | Dress White |
| UPC | 759266131026 |
| Voltage - Input Range (Volts) | 12/24 V |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 4 x 4 inches |
| Size | 2" |
| Weight | 0.04 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Voltage | 12/24 V |
