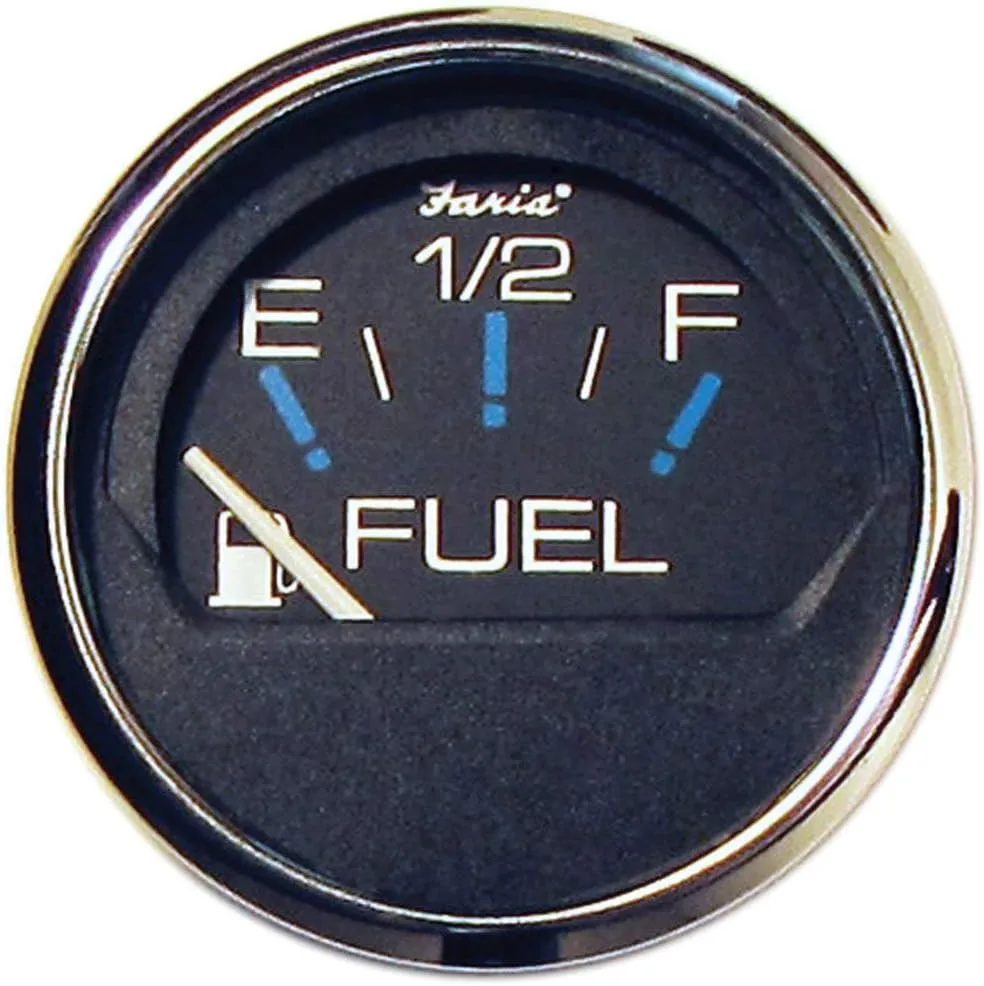

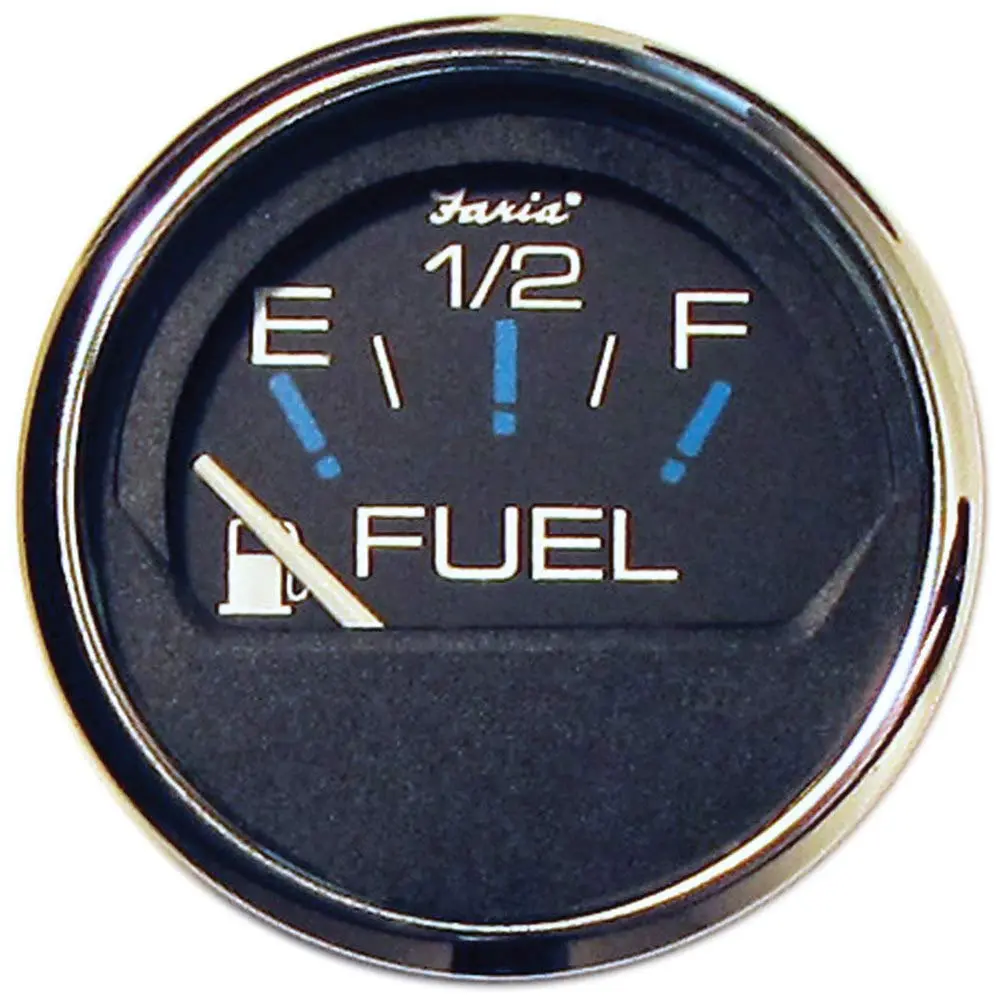

FARIA BEEDE 13701 Chesapeake Stainless Steel Fuel Level Gauge (E-1/2-F) - 2"", Black
Customize
Chesapeake Black 2" Fuel Level Gauge (E-1/2-F). Perimeter-lighted black dial with stylish blue and white graphics, polished stainless steel bezel, contoured white pointer and domed glass lens. Fuel level measurement operates by sending a low amperage current through the gauge to ground via a sending unit with variable resistance; as sender resistance varies the meter deflects to indicate fuel level. 2" hole size (2.0625" / 53 mm). Features: anti-scratch glass lens, perimeter lit backlight, 12 VDC negative ground (can be adapted for 24 VDC), polished stainless steel bezel. Factory P/N GP9368. Sold as an individual unit. Gauge cover not included. From ProductDatabase: Gauge Type: Fuel Level; Series: Chesapeake Black; Voltage - Input Range (Volts): 12/24 V; Gauge Size: 2"; Box Set: No. From marketplace marketing: polished stainless steel bezel and domed glass lens; perimeter-lit dial graphics and marine-grade styling.
- Fuel level measurement: Sending a low amperage current through the meter to ground via a sending unit with variable resistance
- Weight: 1.3 pounds
- Construction: Polished stainless steel bezel, domed glass lens
- Dial design: Perimeter-lit with stylish blue and black graphics
- Item name: Faria Chesapeake Gauges
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Product Details | |
| Box Set | No |
| Gauge Size | 2" |
| Gauge Type | Fuel Level |
| Model Name | FARIA BEEDE 13701 Chesapeake Stainless Steel Fuel Level Gauge (E-1/2-F) - 2"", Black |
| Series | Chesapeake Black |
| Voltage - Input Range (Volts) | 12/24 V |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 3 x 4 inches |
| Size | 2" |
| Weight | 0.04 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Screen Size | 3 Inches |
| Warranty | Warranty |
