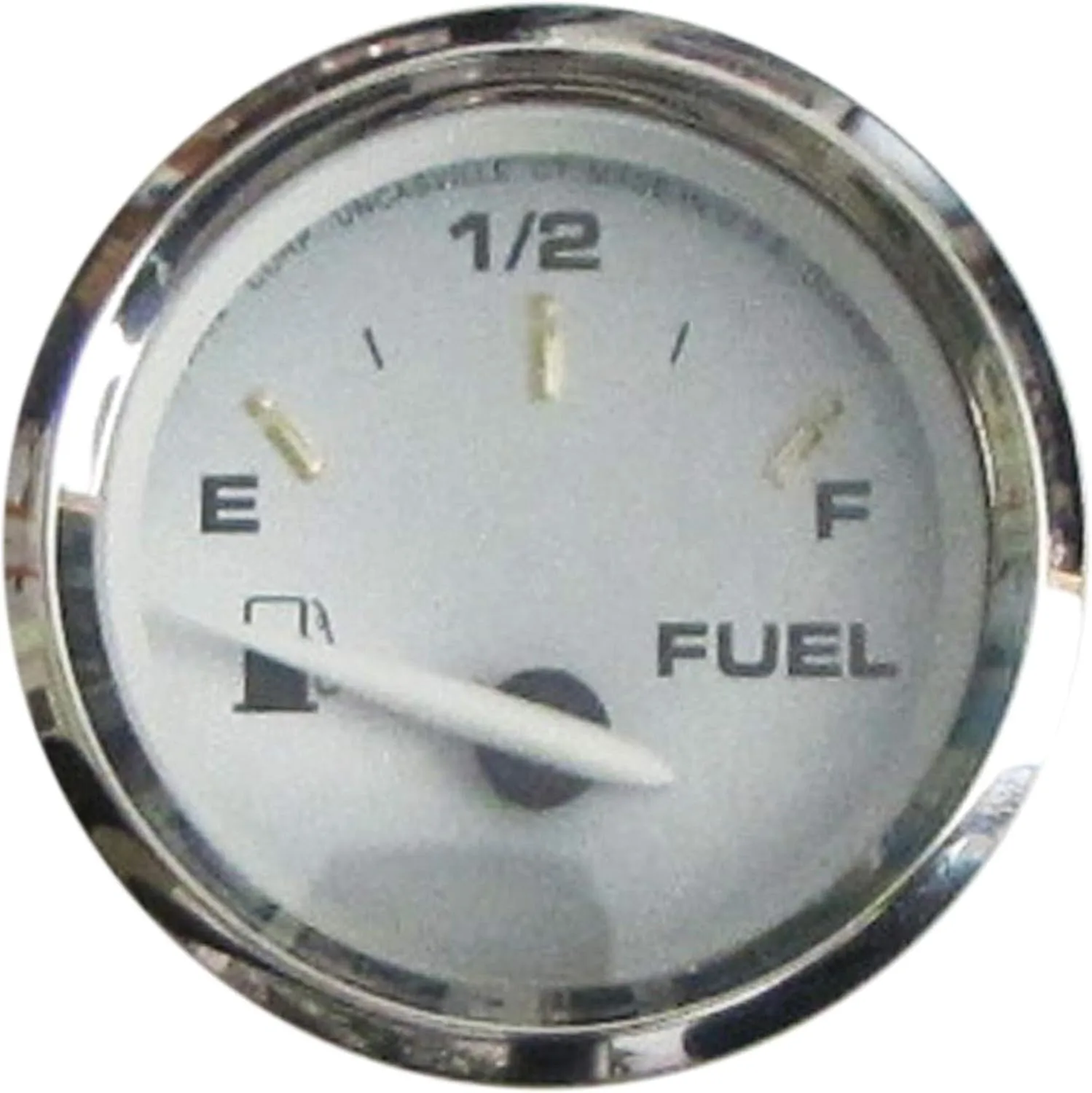

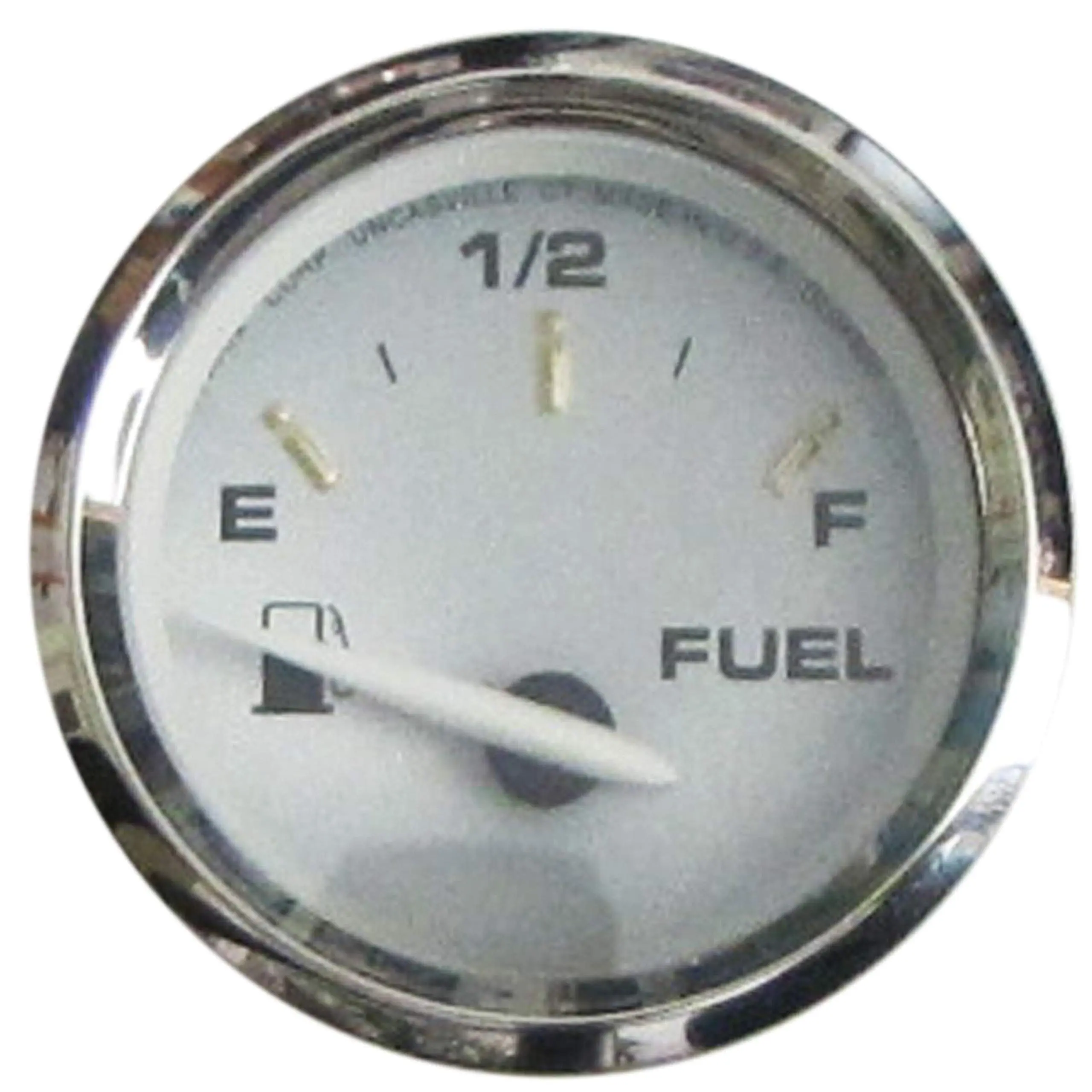

Faria 19001 Kronos Fuel Level Gauge (E-1/2-F) - 2"
Customize
Kronos 2" Fuel Level Gauge (E-1/2-F) Polished Stainless Steel bezel, flat glass lens, perimeter lighted spun aluminum dial with Gold and Black graphics. Gold increments and Logo on dial are Embossed. All instruments include two piece Newport pointer with White hub. Fuel Level gauge operates by sending a low amperage current through the gauges's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc... As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel. 2" - Hole Size: 2.0625" (53mm) Specifications: Flat Scratch Resistant Lens Polished Stainless Steel bezel LED Illuminating around the Perimeter of the Dial Newport style White Pointer Factory P/N GP7683 *Sold as an Individual **Gauge Cover not Included This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Size 2 gauge requires a 2.0625" (53 mm) mounting hole. Two-piece Newport pointer with black hub. Gold increments and logo are embossed. Gold and black graphics. Perimeter-lighted spun-aluminum dial. Item dimensions: 5 x 4 x 4 inches. Package dimensions: 4.5 x 4 x 3.2 inches. Item weight: 0.3 pounds. Package weight: 0.16 kilograms.
- Size 2 gauge requires a 2.0625" (53 mm) mounting hole
- Two-piece Newport pointer with black hub
- Gold increments and logo are embossed
- Gold and black graphics
- Perimeter-lighted spun-aluminum dial
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Aluminum, Stainless Steel |
| Outer Material | Aluminum, Stainless Steel |
| Product Details | |
| Box Set | No |
| Gauge Size | 2" |
| Gauge Type | Fuel Level |
| Included Components | Faria 19001 Kronos Fuel Level Gauge (E-1/2-F) - 2" |
| Model Name | Faria 19001 Kronos Fuel Level Gauge (E-1/2-F) - 2" |
| Series | Kronos |
| Voltage - Input Range (Volts) | 12/24 V |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 4 x 4 inches |
| Size | 2" |
| Weight | 4.8 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Item dimensions L x W x H | 5 x 4 x 4 inches |
| Item Package Dimensions L x W x H | 4.5 x 4 x 3.2 inches |
| Number of Items | 1 |
| UPC | 759266190016 |
| Warranty Description | Warranty |
