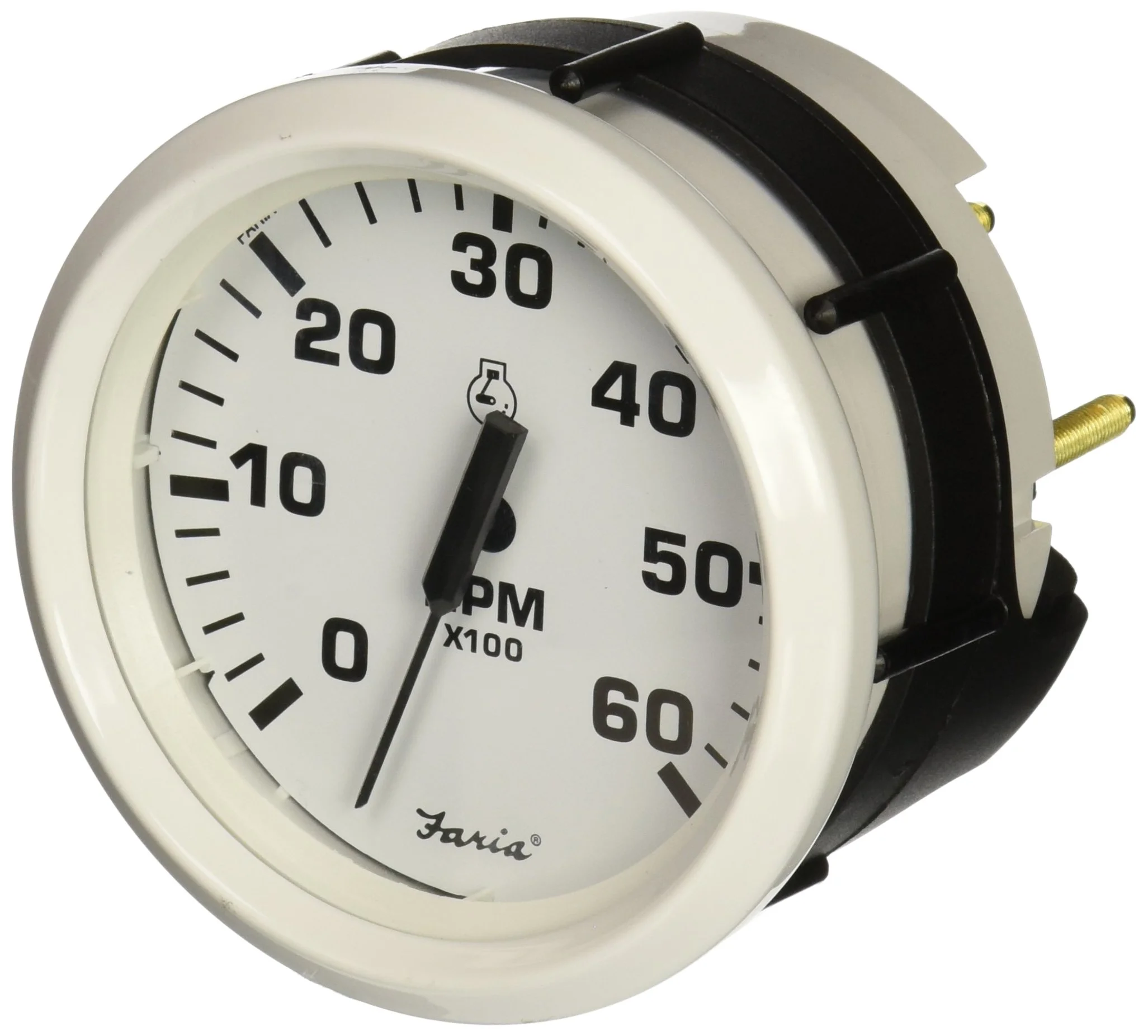

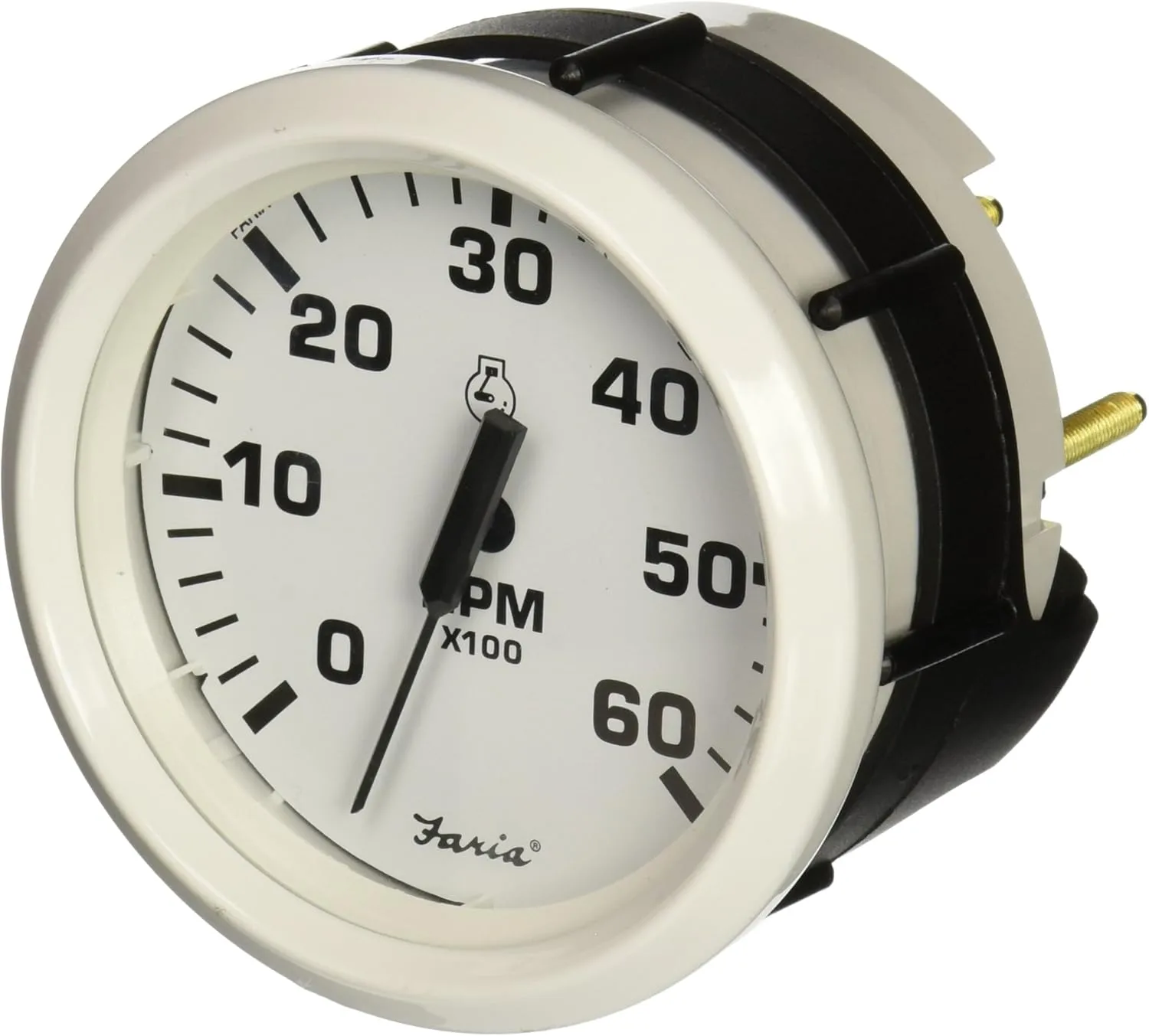

Faria - 3003.3484 33103 Dress Tachometer (6000 RPM) Gas - 4" , White
Customize
Dress White 4" Tachometer - 6000 RPM (Gas) (Inboard & I/O). Perimeter-lighted White dial with bold Black graphics, White aluminum bezel, contoured Black pointer and flat glass lens. Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed. By selecting the right tachometer and setting the switch on the back to the correct position, you let the tachometer know how many pulses are sent per each engine revolution. 4" - Hole size: 3.375" (85mm). Anti-scratch glass lens. 12 VDC negative ground. Can be adapted for 24 VDC systems. Factory P/N TC9691. Sold as an Individual. Gauge Type: Tachometer. Series: Dress White. Voltage - Input Range (Volts): 12/24 V. Gauge Size: 4".
- Flat glass lens
- Black aluminum bezel with burnished edge
- Stylish blue & white graphics
- Perimeter-Lighted black dial
Specifications:
| Materials & Construction | |
| Material | Aluminum |
| Product Details | |
| Box Set | No |
| Gauge Size | 4" |
| Gauge Type | Tachometer |
| Is Discontinued By Manufacturer | No |
| Item model number | 3003.3484 |
| Manufacturer Part No | 3003.3484 |
| OEM Part Number | 706151 |
| Series | Dress White |
| Voltage - Input Range (Volts) | 12/24 V |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 6 inches |
| Product Dimensions | 6 x 5 x 5 inches |
| Size | 4" |
| Weight | 9.6 ounces |
| Width | 5 inches |
| Technical Specifications | |
| Gauge Size | 4" |
| Voltage - Input Range (Volts) | 12/24 V |
