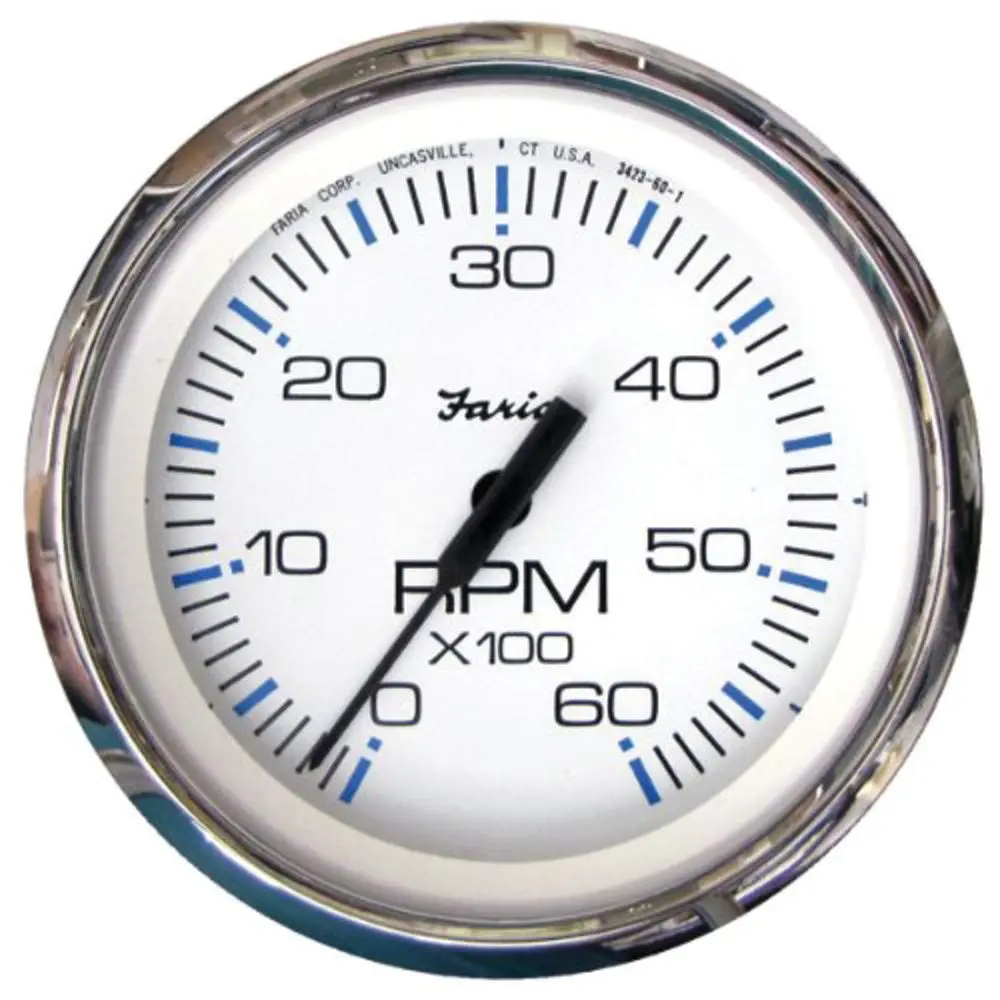

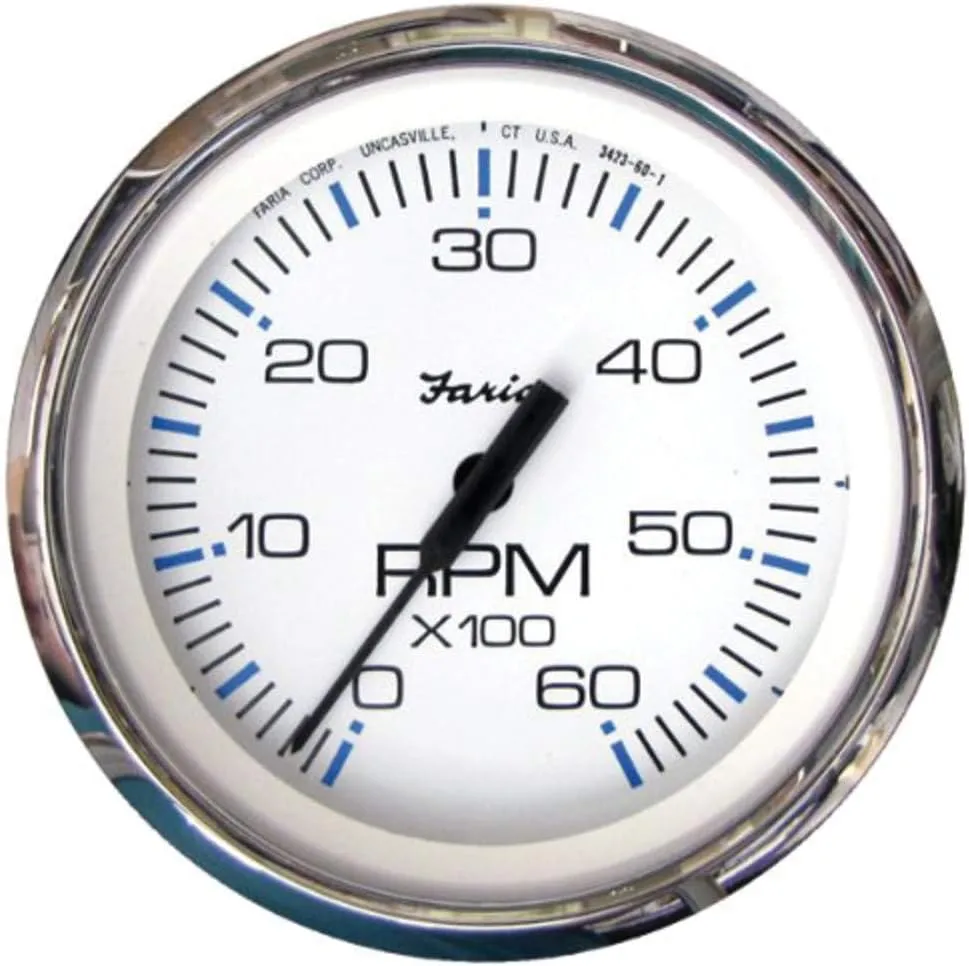

Faria Chesapeake White SS 4" Tachometer - 6000 RPM (Gas) (Inboard & I/O)
Customize
Chesapeake White SS 4" Tachometer - 6000 RPM (Gas) (Inboard & I/O). Perimeter-lighted white dial with stylish blue and white graphics, polished stainless steel bezel, contoured white pointer and domed glass lens. Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed. By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution. 4" - Hole size: 3.375" (85mm). Anti-scratch glass lens. Plastic case for corrosion resistance and long life. 12 VDC negative ground (can be adapted for 24 VDC systems). Factory P/N TC9796. Sold as an individual unit. Gauge cover not included. (Manufacturer/Model: Faria Beede Instruments, Model 33807).
- "size 4 gauge requires a 3.375" (85 mm) mounting hole"
- domed glass lens
- polished stainless steel bezel
- stylish blue and white graphics
- perimeter-lighted black dial with a contoured white pointer
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Box Set | No |
| Exterior | Brushed |
| Gauge Type | Tachometer |
| Is Discontinued By Manufacturer | No |
| Manufacturer Part No | 33807 |
| OEM Part Number | 707235 |
| Series | Chesapeake White |
| UPC | 759266338074 |
| Voltage - Input Range (Volts) | 12/24 V |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 5 x 5 inches |
| Screen Size | 4.9 inches |
| Weight | 4 ounces |
| Width | 5 inches |
| Technical Specifications | |
| Country of Origin | USA |
| Item dimensions L x W x H | 5 x 5 x 5 inches |
