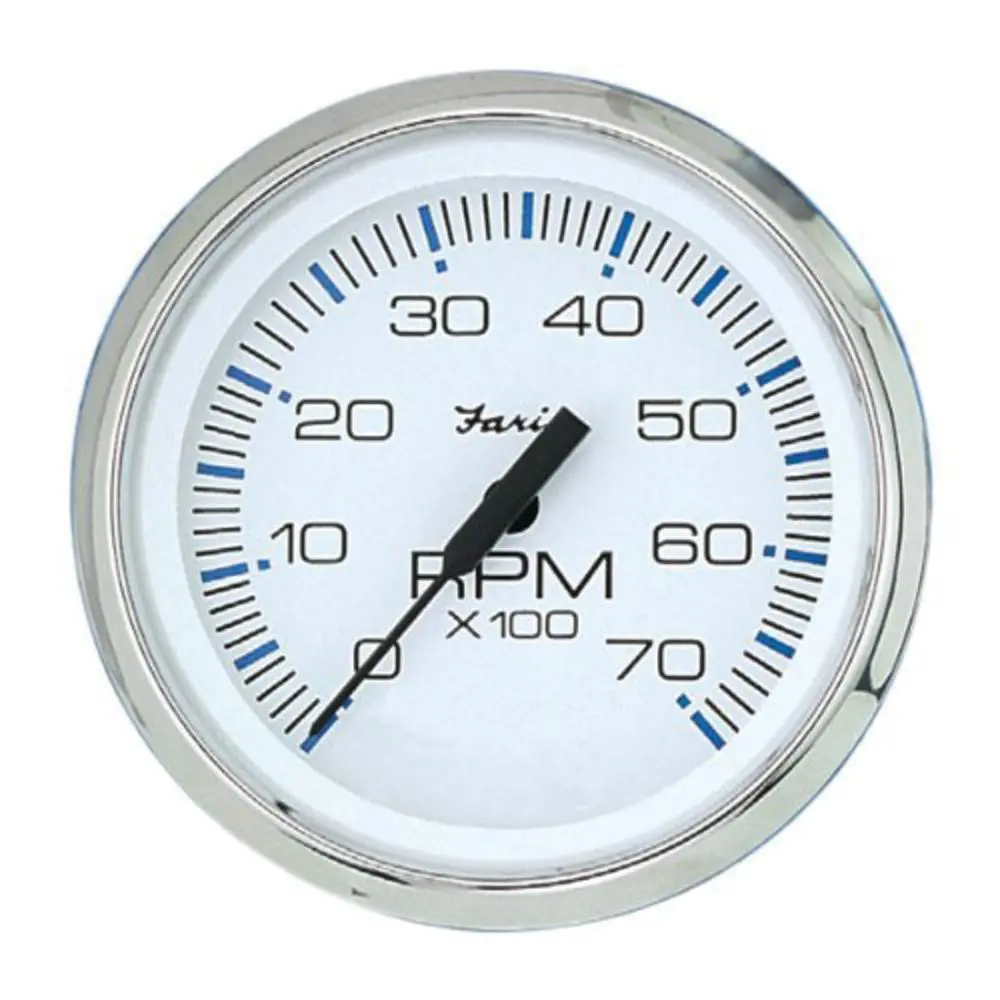

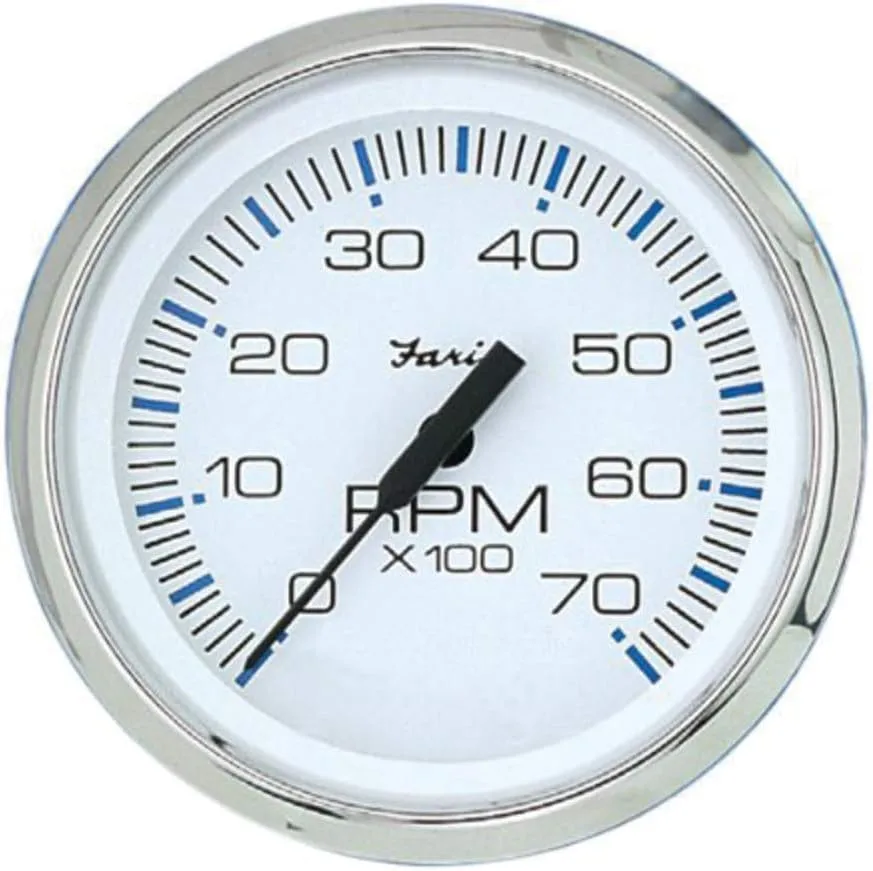

Faria 33817 Chesapeake Stainless Steel Tachometer (7000 RPM) - 4" , White
Customize
Chesapeake White SS 4" Tachometer - 7000 RPM (Gas) (All Outboards). Perimeter-lighted White dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens. Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed. By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution. 4" - Hole size: 3.375" (85mm). Specifications: Anti-scratch glass lens. Plastic cases for corrosion resistance and long life. 12 VDC negative ground. Can be adapted for 24 VDC systems. Factory P/N TC9002. Sold as an Individual. Gauge Type: Tachometer. Series: Chesapeake White. Voltage - Input Range (Volts): 12/24 V. Gauge Size: 4". Box Set: No. Additional marketing/spec details: American & metric scales & icons. Flat glass lens. Black aluminum bezel with burnished edge. Stylish blue & white graphics. Perimeter-lighted black dia.
- American & metric scales & icons
- Flat glass lens
- Black aluminum bezel with burnished edge
- Stylish blue & white graphics
- Perimeter-lighted black dia
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Plastic, Stainless Steel |
| Outer Material | Plastic |
| Product Details | |
| Gauge Size | 4" |
| Gauge Type | Tachometer |
| Item model number | 33817 |
| Manufacturer Part No | 3003.3526 |
| OEM Part Number | 707236 |
| Series | Chesapeake White |
| Voltage - Input Range (Volts) | 12/24 V |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 5 x 5 inches |
| Size | 4 Inches |
| Weight | 10.6 ounces |
| Width | 5 inches |
| Technical Specifications | |
| Country of Origin | USA |
| Screen Size | 4 Inches |
