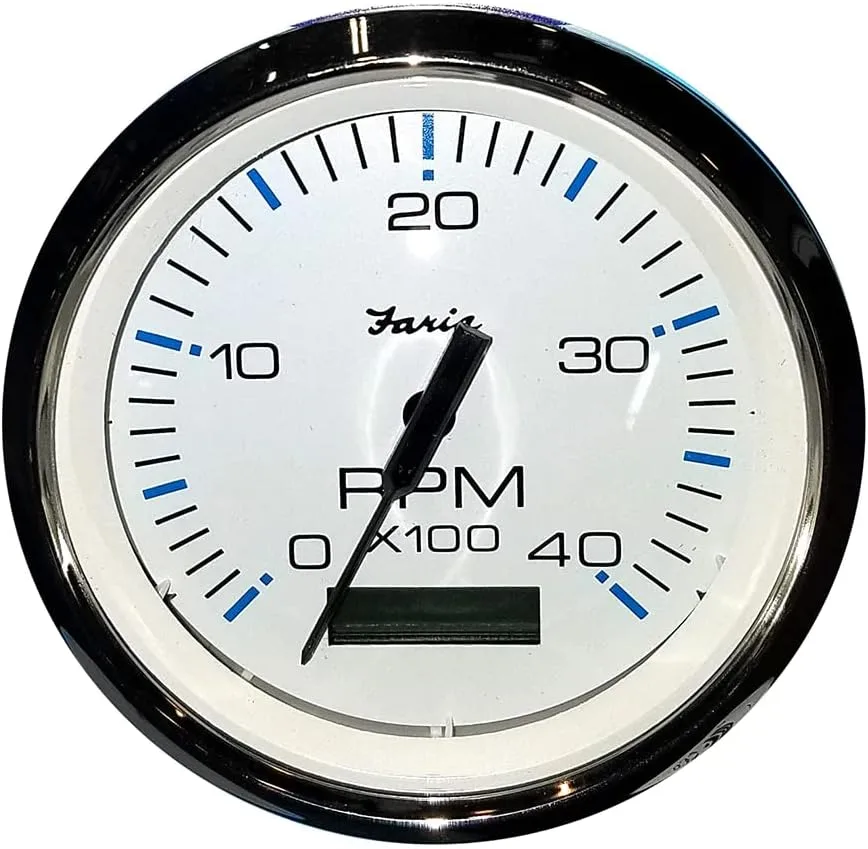

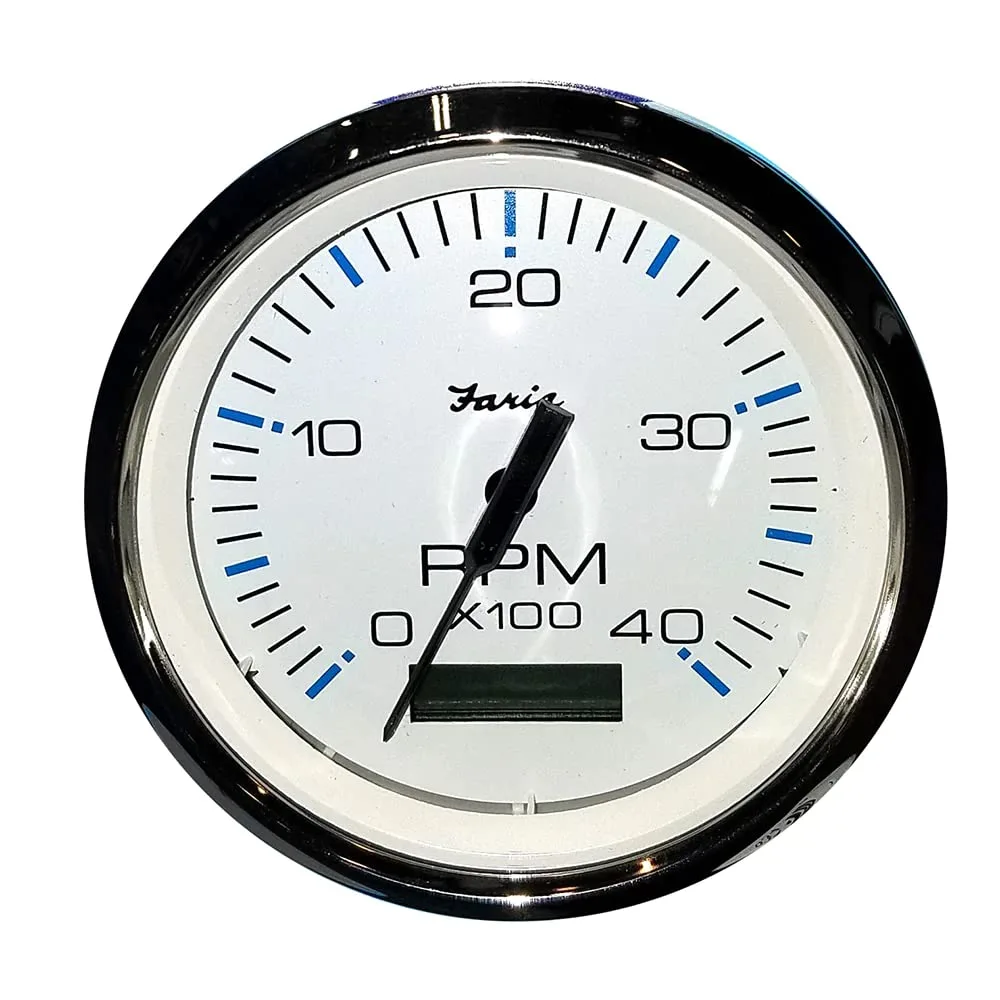

Faria Beede Instruments Faria 33834 Chesapeake Tachometer Gauge with Hourmeter Diesel - White SS, 4"
Customize
Chesapeake White SS 4" Tachometer with Hourmeter (4000 RPM) (Diesel) Mech. Takeoff & Var. Ratio Alt. Perimeter-lighted White dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens. Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12vDC, Ground and one of the signal sources listed above. By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution. 4" - Hole size: 3.375" (85mm). Specifications: Anti-scratch glass lens. Plastic cases for corrosion resistance and long life. 12 VDC negative ground. Can be adapted for 24 VDC systems. Scale - 0 to 10000 Hours. Factory P/N TD9108. *Sold as an Individual **Gauge Cover not Included. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Features include a 7 character LCD display, rugged reliable construction, multiple signal sources, availability for gas or diesel engines, and a wide range of scales.
- 7 character LCD display
- Rugged, Reliable construction
- Multiple signal sources
- Available for gas or diesel engines
- Wide range of scales
Specifications:
| Materials & Construction | |
| Material | Plastic |
| Product Details | |
| Box Set | No |
| Gauge Size | 4" |
| Gauge Type | Tachometer - Diesel |
| Screen Size | 4 Inches |
| Series | Chesapeake White |
| UPC | 759266338340 |
| Voltage - Input Range (Volts) | 12/24 V |
| Sizing & Dimensions | |
| Height | 5.12 inches |
| Length | 5.71 inches |
| Product Dimensions | 5.71 x 5.2 x 5.12 inches |
| Size | 4" |
| Weight | 0.68 pounds |
| Width | 5.2 inches |
| Technical Specifications | |
| Country of Origin | China |
