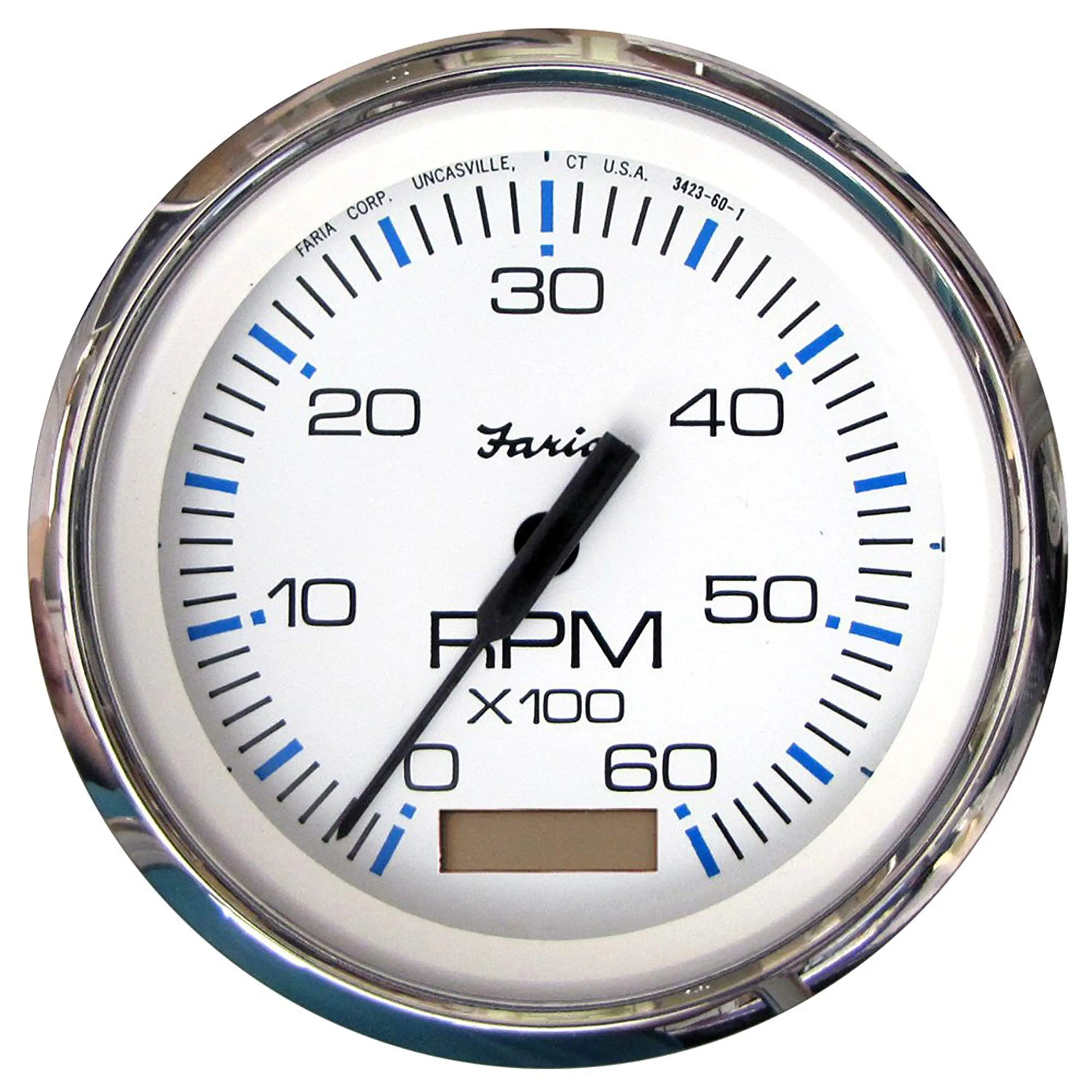

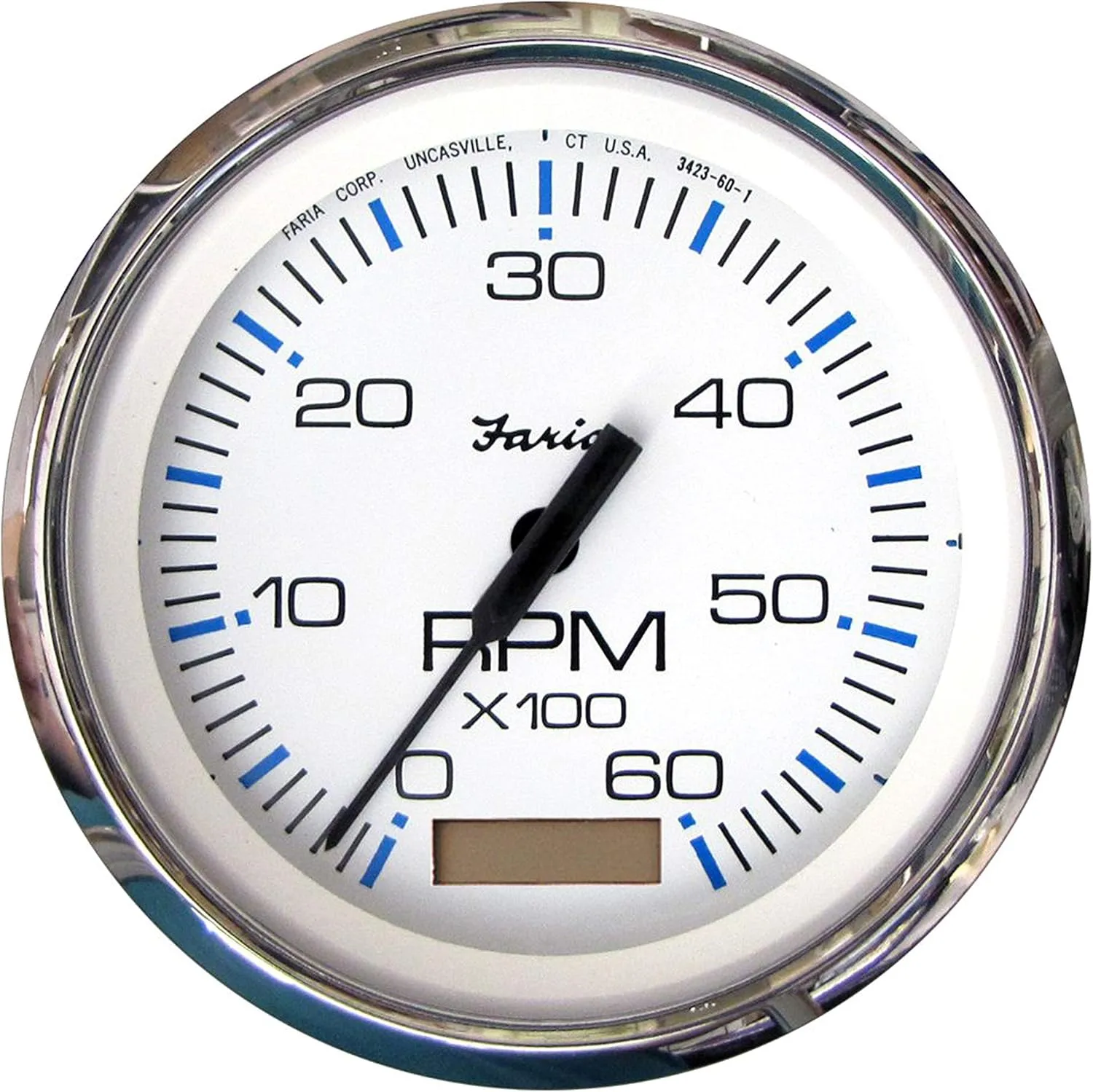

Faria Chesapeake White SS 4" Tachometer w/Hourmeter - 7000 RPM (Gas) (Outboard)
Customize
Chesapeake White SS 4" Tachometer with Hourmeter - 7000 RPM (Gas) (Outboard). Perimeter-lighted white dial with stylish blue and white graphics, polished stainless steel bezel, contoured white pointer and domed glass lens. Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed. By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution. 4" - Hole size: 3.375" (85mm). Anti-scratch glass lens and plastic cases for corrosion resistance and long life. 12 VDC negative ground and can be adapted for 24 VDC systems. 7 character LCD display showing 0-999999.9 hours, updates in 0.1 increments. Factory P/N TCH008. Sold as an individual gauge. (Gauge cover not included.)
- 7 character LCD display
- Rugged Reliable construction
- Multiple signal sources
- Available for gas or diesel engines
- Wide range of scales
Specifications:
| Materials & Construction | |
| Color | Beige |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Box Set | No |
| Gauge Size | 4" |
| Gauge Type | Tachometer W/Hourmeter |
| Included Components | Faria 33832 Chesapeake Tachometer Gauge with Hourmeter 7000 RPM - White SS, 4" |
| Number of Items | 1 |
| Series | Chesapeake White |
| Voltage - Input Range (Volts) | 12/24 V |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 6 inches |
| Product Dimensions | 6 x 5 x 5 inches |
| Size | 4 Inches |
| Weight | 0.68 pounds |
| Width | 5 inches |
| Technical Specifications | |
| Package Dimensions | 5.98 x 5.24 x 5 inches |
| Screen Size | 4 Inches |
