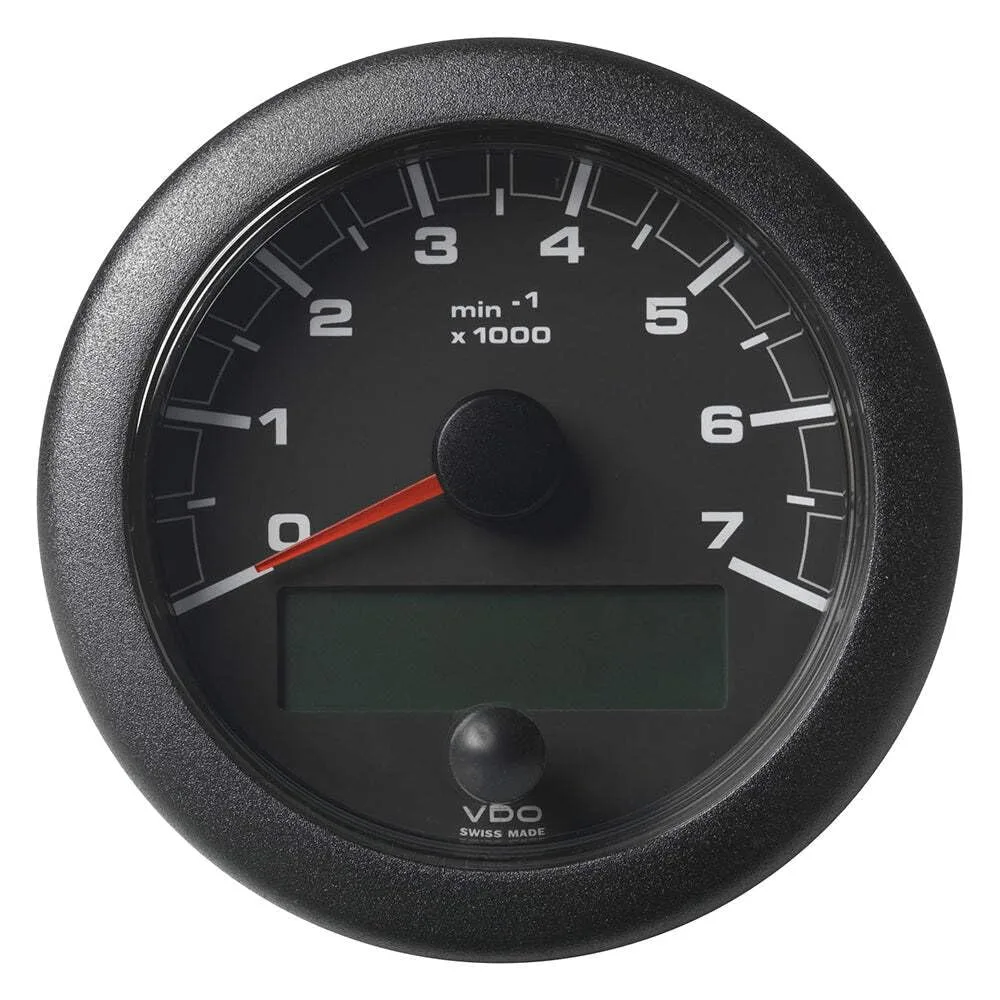

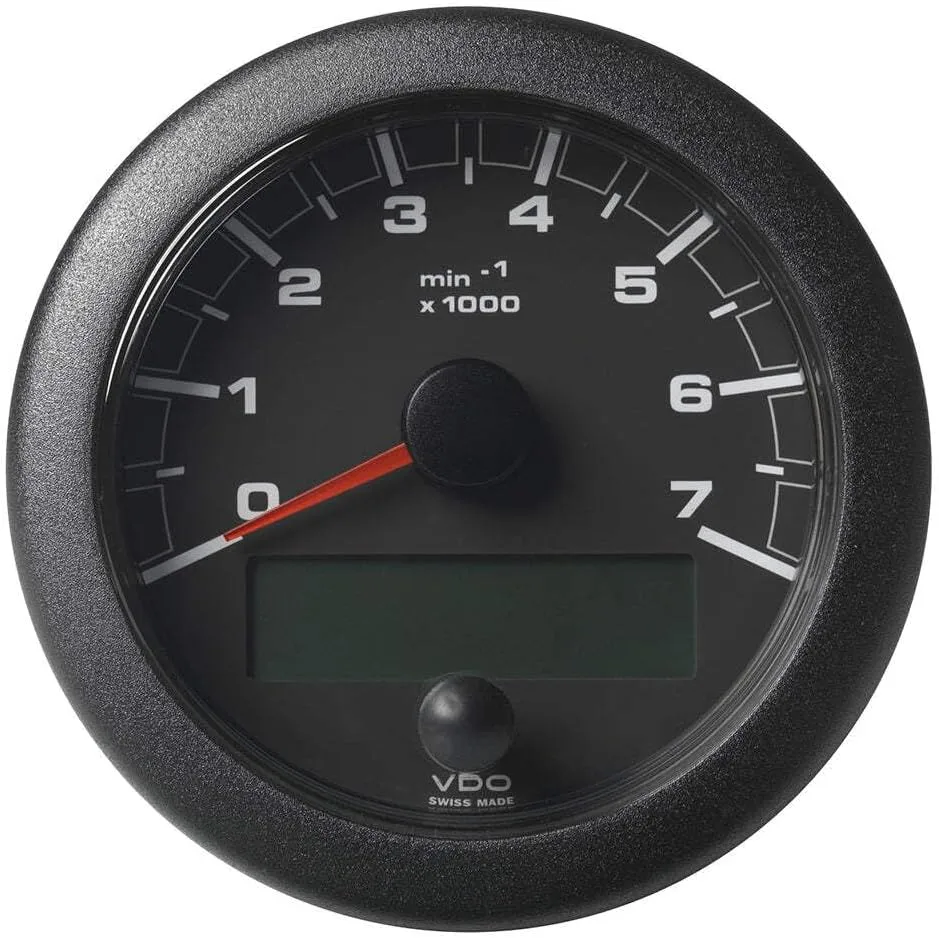

Veratron 3-3/8" (85MM) OceanLink NMEA 2000 Tachometer - 7000 RPM - Black Dial & Bezel
Customize
3-3/8" (85MM) OceanLink NMEA 2000 Tachometer - 7000 RPM - Black Dial & Bezel. The new OceanLink Tachometer automatically presents all the key data ranging from oil pressure and fuel consumption to operating hours on a generously proportioned inverted dot matrix digital display. Besides a CAN interface with NMEA 2000 certified and SAE J1939 data protocol it features two inputs for analog sensors. The innovative EasyLink data connection makes the installation easy and cost effective. Satellite instruments for further dynamic measurement values receive updates from the central instrument every 20 msec. OceanLink Technical Information: 1x NMEA 2000 input, 1x J1939 and analog input, Reverse polarity protection, Protection rating IPX5, Operating temperature range -20 °C / +70 °C, 12/24V. Package includes gauge (no box set). WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Great Product
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Box Set | No |
| Gauge Size | 3-3/8" |
| Gauge Type | Tachometer W/System Check |
| Included Components | Great Product |
| Number of Items | 1 |
| Series | Oceanlink |
| Size | One Size |
| Voltage - Input Range (Volts) | 12/24v |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 8 x 4 inches |
| Size | 3-3/8" (85MM) |
| Weight | 13.62 ounces |
| Width | 8 inches |
| Technical Specifications | |
| Interface | NMEA 2000, SAE J1939, 2 analog inputs |
| Operating Temperature Range | -20 °C / +70 °C |
| Protection Rating | IPX5 |
