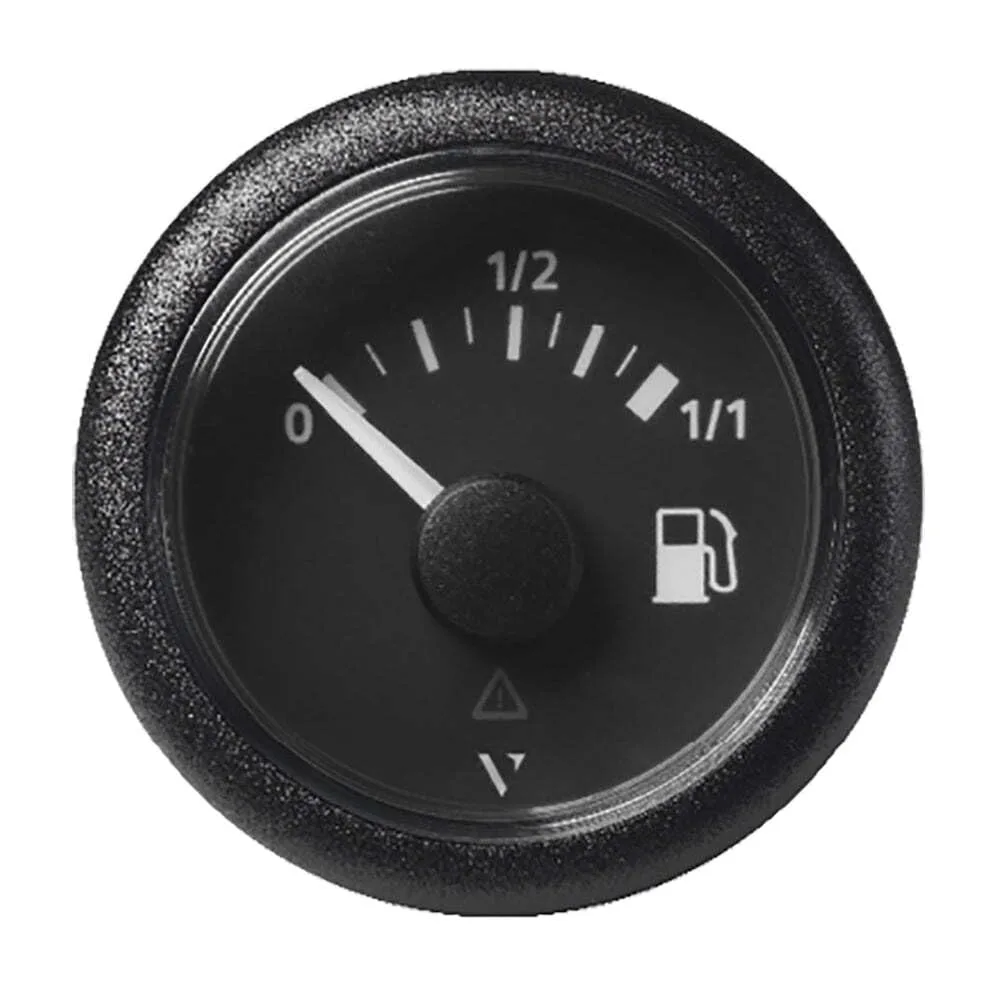

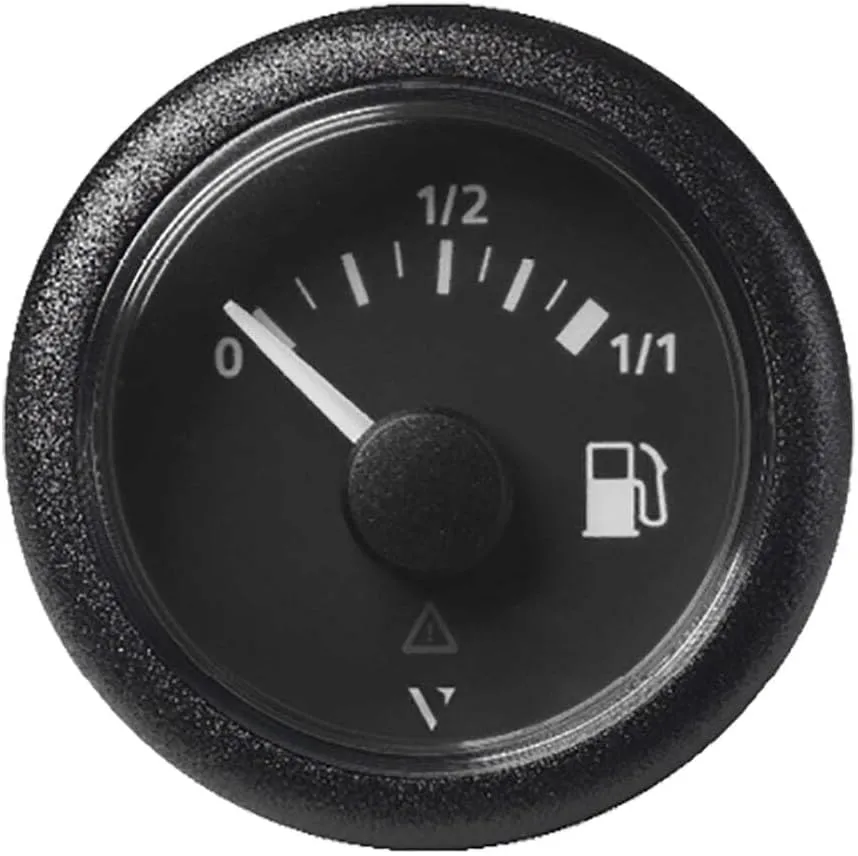

Veratron 52mm (2-1/16") ViewLine Fuel Tank Level Gauge - 0 to 1/1 - Black Dial & Round Bezel
Customize
52mm (2-1/16") ViewLine Fuel Tank Level Gauge - 0 to 1/1 - Black Dial & Round Bezel. Veratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring. More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use. ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio. The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in identical color. Interchangeable bezel option. Features: 8 pole Tyco/Hirschmann MQS plug; Red LED Via Plus And Min Warning Light; Operating voltage 12 - 24 V; Input signal: standard Ω values; Optional make-point switch can be connected; Reverse polarity protection; Anti-fog double lens; Front side protection rating IP67; 52 mm installation diameter; 50 mm installation depth. In the Box: Gauge, Connection Cable, Bezel, Rubber Seal, Spinlock, Installation Instructions, Safety Instructions. Sold as an individual. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Great Product.
- Great Product
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Box Set | No |
| Color | No Color |
| Gauge Size | 2-1/16" |
| Gauge Type | Fuel Level |
| Included Components | Great Product |
| Material | Plastic |
| Model Name | A2C59514079 |
| Number of Items | 1 |
| Part Number | A2C59514079 |
| Series | Viewline |
| Size | One Size |
| Voltage - Input Range (Volts) | 12/24 V |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Item Dimensions Lx Wx H | 4 x 4 x 2 inches |
| Item dimensions L x W x H | 4 x 4 x 2 inches |
| Item Package Dimensions L x W x H | 4 x 4 x 2 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 4 x 2 inches |
| Weight | 1.001 pounds |
| Width | 4 inches |
| Technical Specifications | |
| Front side protection rating | IP67 |
| Voltage - Input Range (Volts) | 12/24 V |
| Warranty | Warranty |
