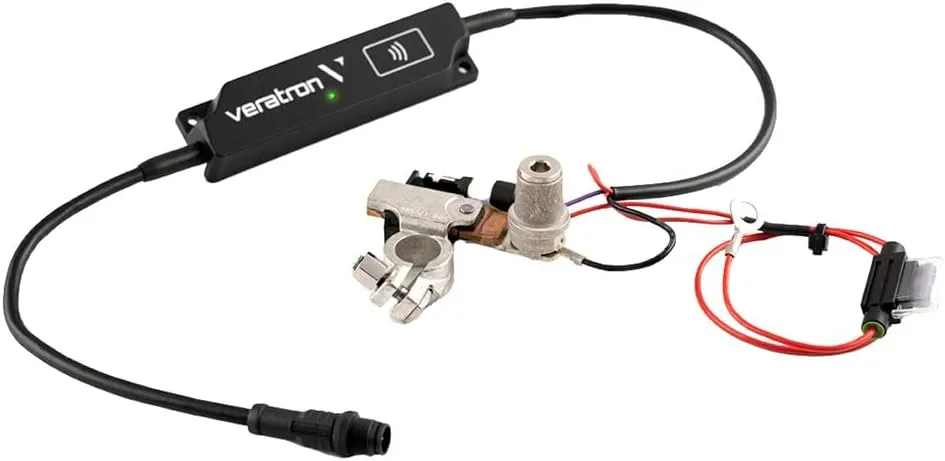

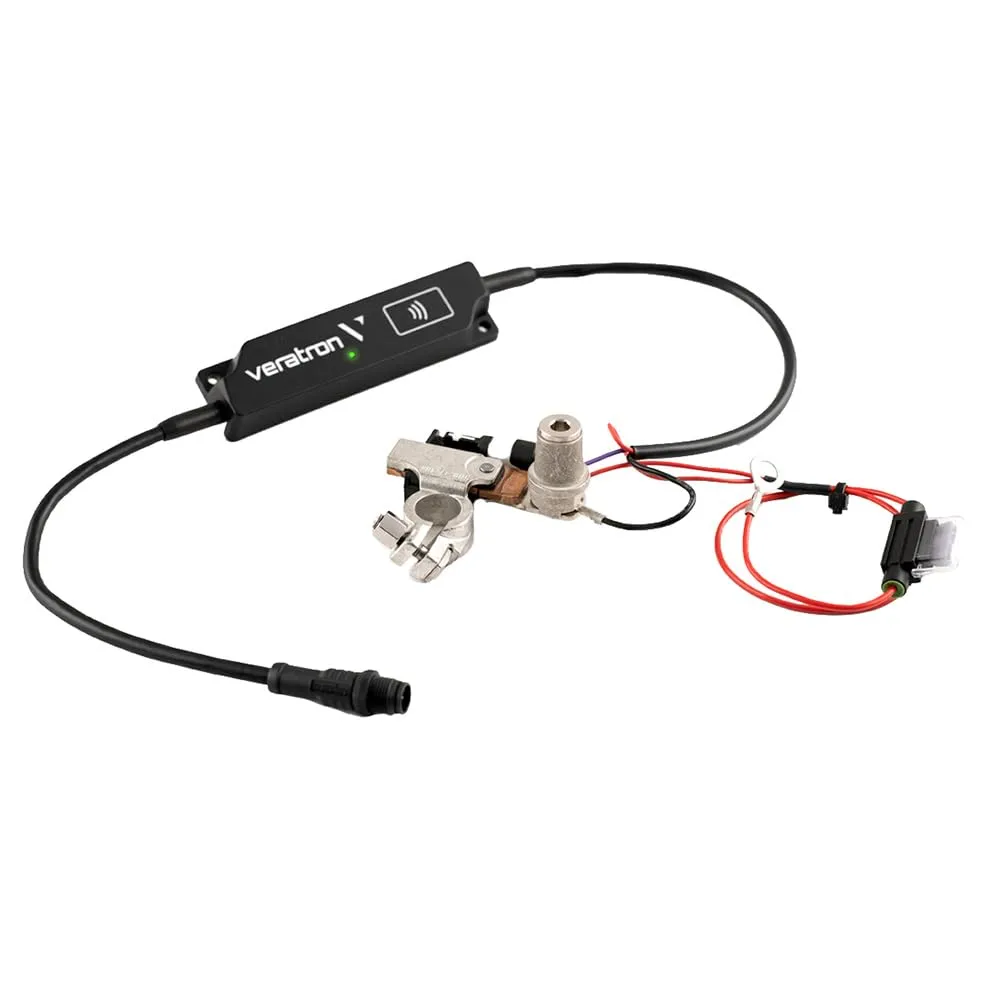

Veratron LinkUp Intelligent Battery Sensor Gateway - 12V - 500AH
Customize
LinkUp Intelligent Battery Sensor Gateway - 12V - 500AH Easily installed LinkUp gateway modules replace the original wiring, delivering power to the LinkUp device and sensor from the NMEA 2000 backbone while still compliant with the NMEA 2000 certification. Thanks to their passive wireless receiver, the configuration is done in a snap using your mobile device, and the LinkUp Configurator app is available for Android and iOS devices. The sensor parameters are configured to type, instance, and warning threshold on the mobile device and then tapped against the LinkUp device for instant data download. Features: NMEA 2000 certified Wireless configuration through companion mobile App Status LED Plug-and-Play installation and configuration Specifications: Operating voltage - 6-18V Permanent load current - ±200A Maximum current - ±1500A Maximum battery capacity - 500Ah Threaded GND bolt - M6 Power consumption - ≤ 15 mA (normal mode) Output signal - NMEA 2000 Dimensions - 125mm x 32mm (+cables) Protection class - IP X9/K (LinkUp) IP6K7 (Sensor) Operating temperature - -40°C to +115 °C Flammability - UL94 Housing material - PC-FR Compliance - CE, UKCA, Reach, RoHS, ISO8846:1990 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | B00042502 |
| Part Number | B00042502 |
| Product Dimensions | 17"L x 4"W |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 17 inches |
| Product Dimensions | 17 x 4 x 4 inches |
| Size | 17L x 4W |
| Weight | 1.1 pounds |
| Width | 4 inches |
| Technical Specifications | |
| Item Dimensions Lx Wx H | 17 x 4 x 4 inches |
| Item Package Dimensions L x W x H | 17 x 4 x 4 inches |
