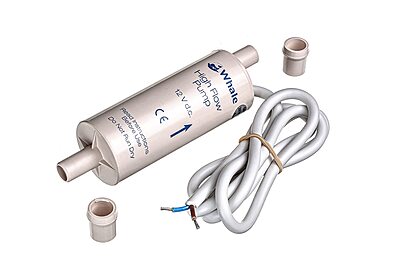

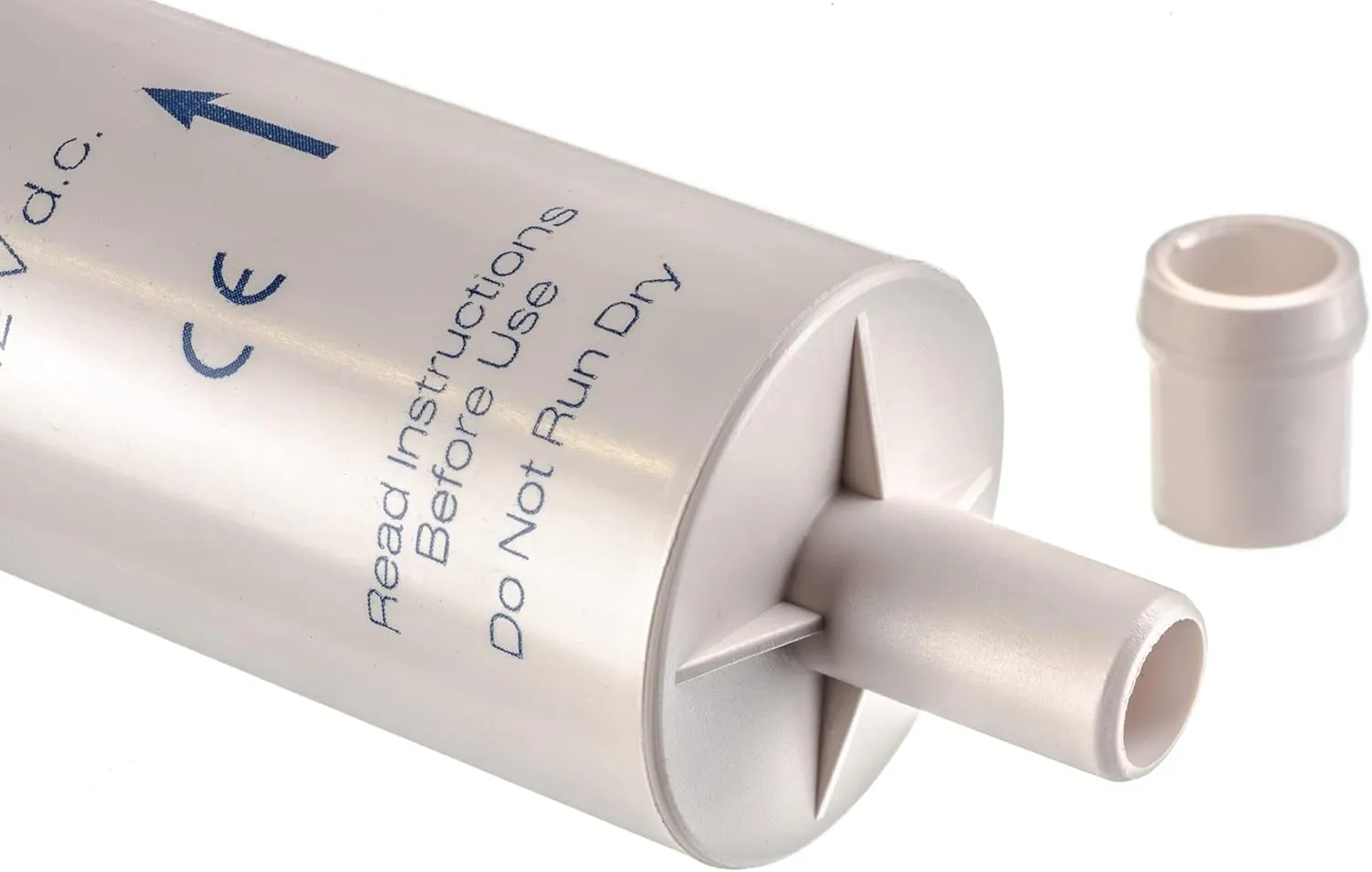

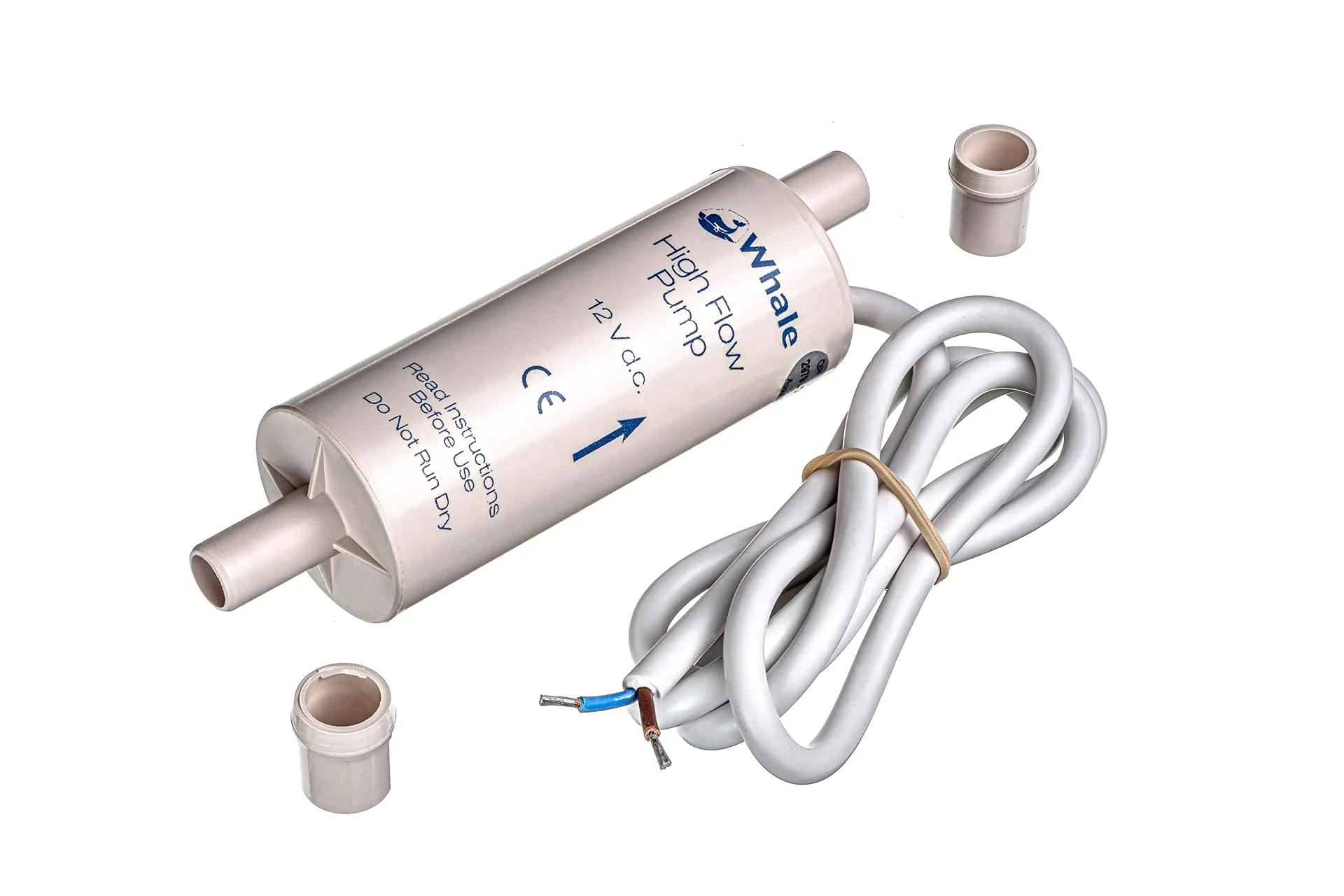

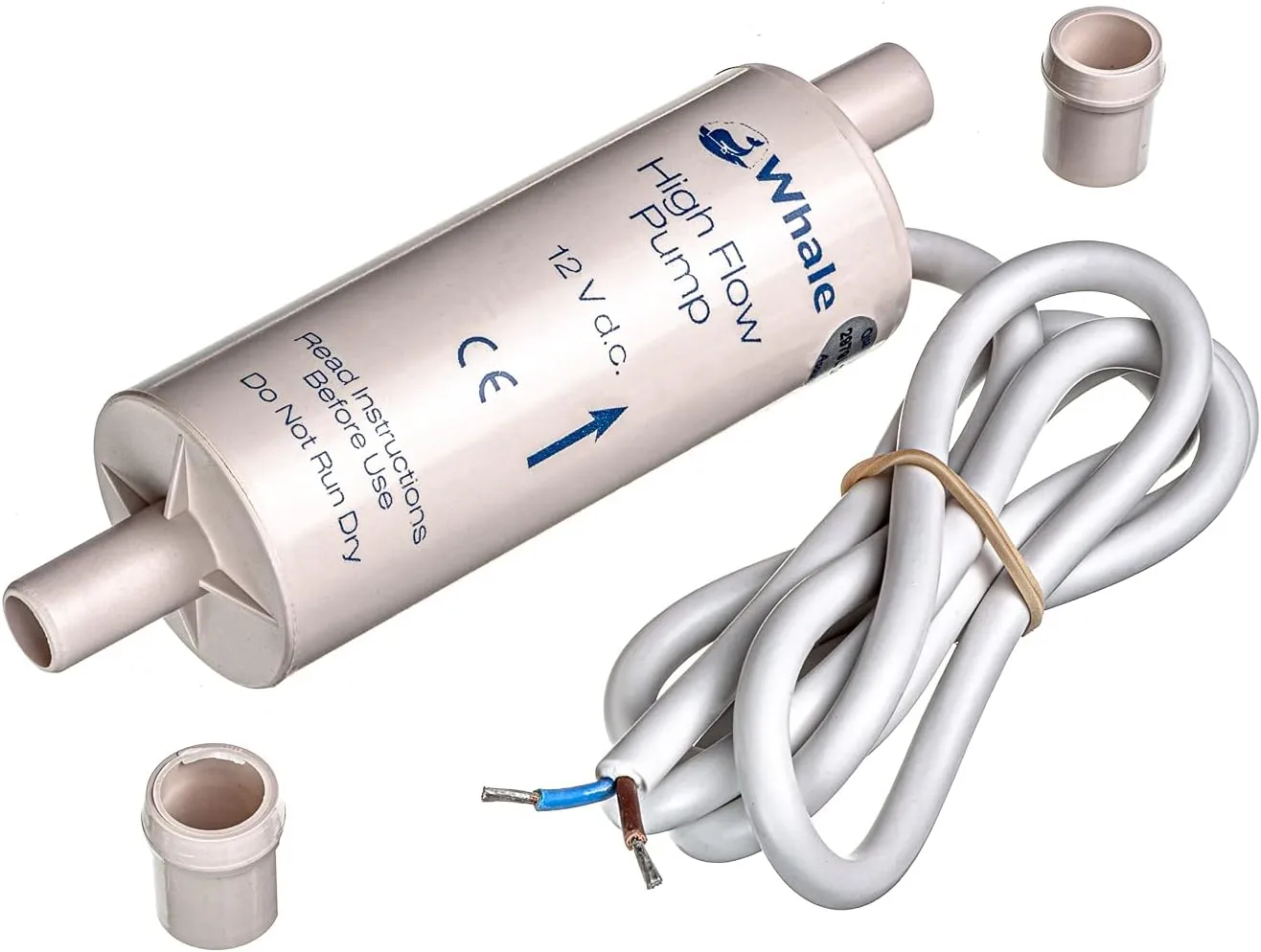

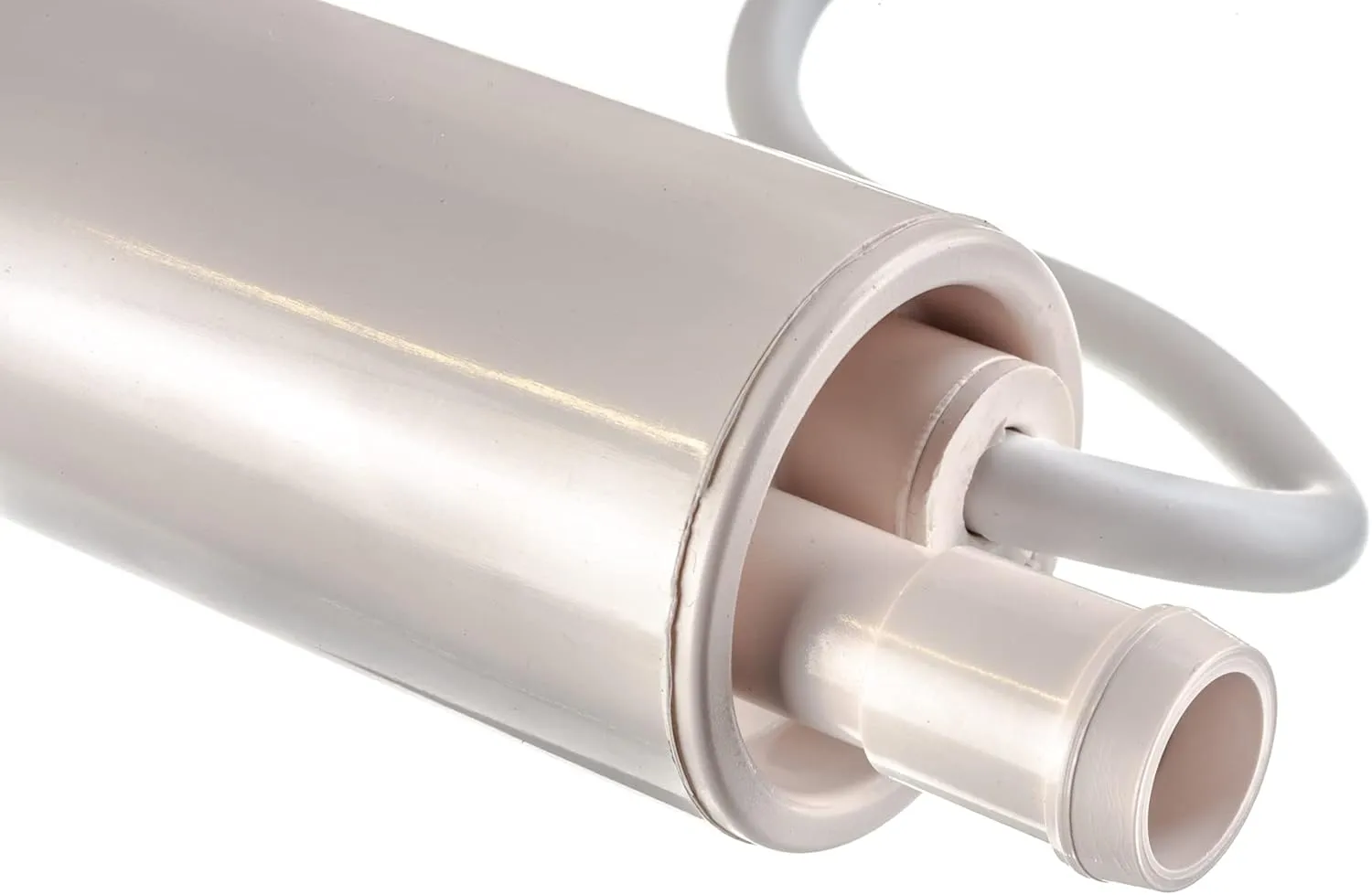

Whale Inline Booster High Flow Electric Galley Pump - 12V

Inline Booster High Flow Electric Galley Pump - 12V. This high-performance Whale pump fits inline to increase the flow rate. The narrow design is ideal for dropping into the water tank. Compact, quiet, lightweight design for use with pressure switch and microswitch systems. An inexpensive way to upgrade a manual water system. Also suitable for pumping diesel. Low power consumption. Specifications: Pump Type: Inline. Weight: 015 kg (0.3 lbs.). Voltage: 12 VDC. Recommended Fuse Size: 5 amps. Cable Length: 1m (3 ft.). Hose Connection: Suitable for 10 mm (3/8 in.) or 13 mm (1/2 in.) flexible hose use WX1511B (stern adapter 11-15 mm) and connect WX1504 (15 mm (5/8 in.) equal straight). Filter Included: No. Length: 129 mm (5-1/16 in.). Width: 36 mm (1-7/16 in.). Materials: Pump Body: ABS; Seal: Nitrile; Strainer: Polyurethane; Impeller: PBT; Cable: PVC. Performance: Discharge Head: Flow rate per minute/current draw @ 12VDC — 0 m (0 ft.): 15.8 liters (4 US gallons) 3.8 amps; 1 m (3 ft.): 14.8 liters (4 US gallons) 3.7 amps; 3 m (10 ft.): 12.8 liters (3.5 US gallons) 3.5 amps. 1 Year Warranty. CE certified. ISO 88846. ISO 10133. ABYC H-23. IP67.

• For best performance install the pump in the suction pipe between the main pump and water tank, not between the main pump and tap.
• Straight forward installation, fits neatly unsupported into pipework
• Ideal for two or three outlets
• Operates with a microswitch tap, pressure switch or separate switch
• Low cost pump with low power consumption
• Simple, Compact, Quiet, Lightweight, Narrow Economical design
• Boost flow in manual or electric pumps
