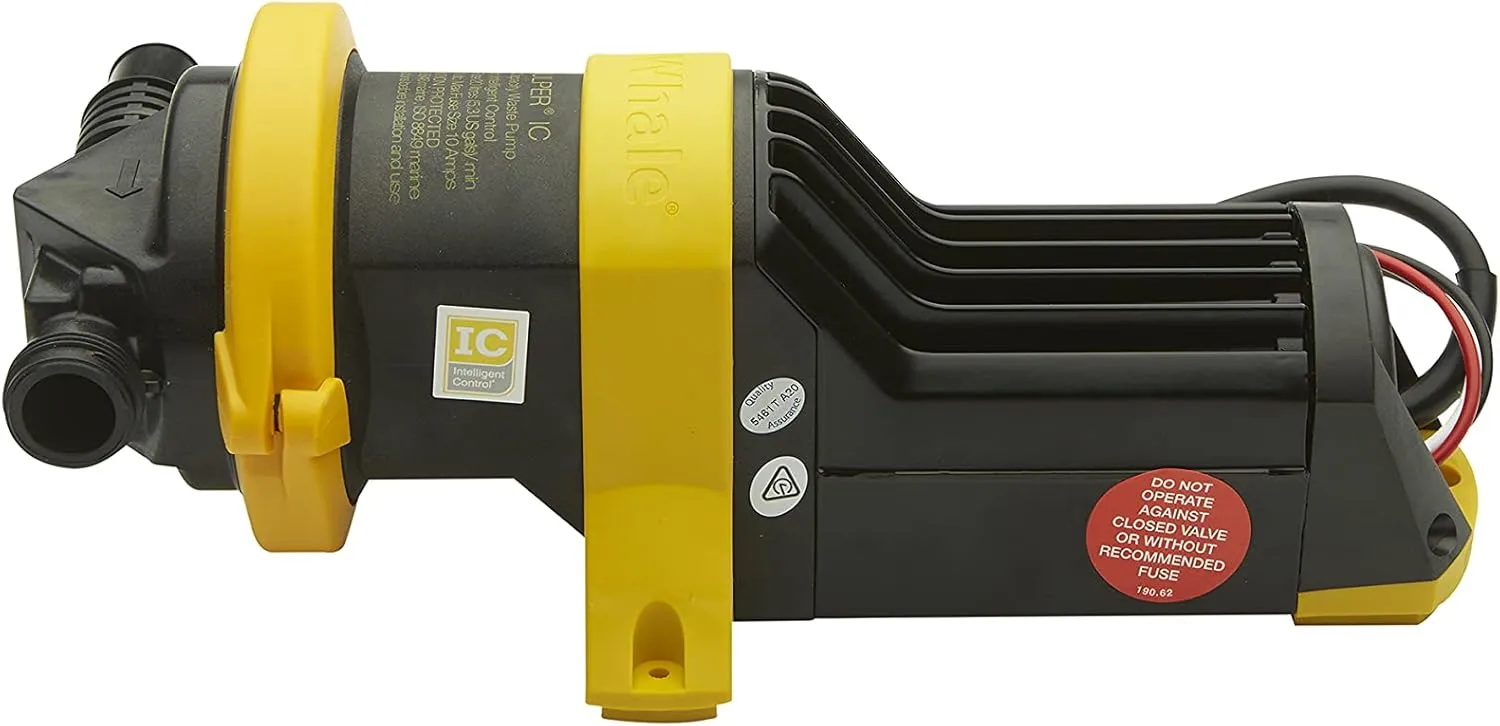

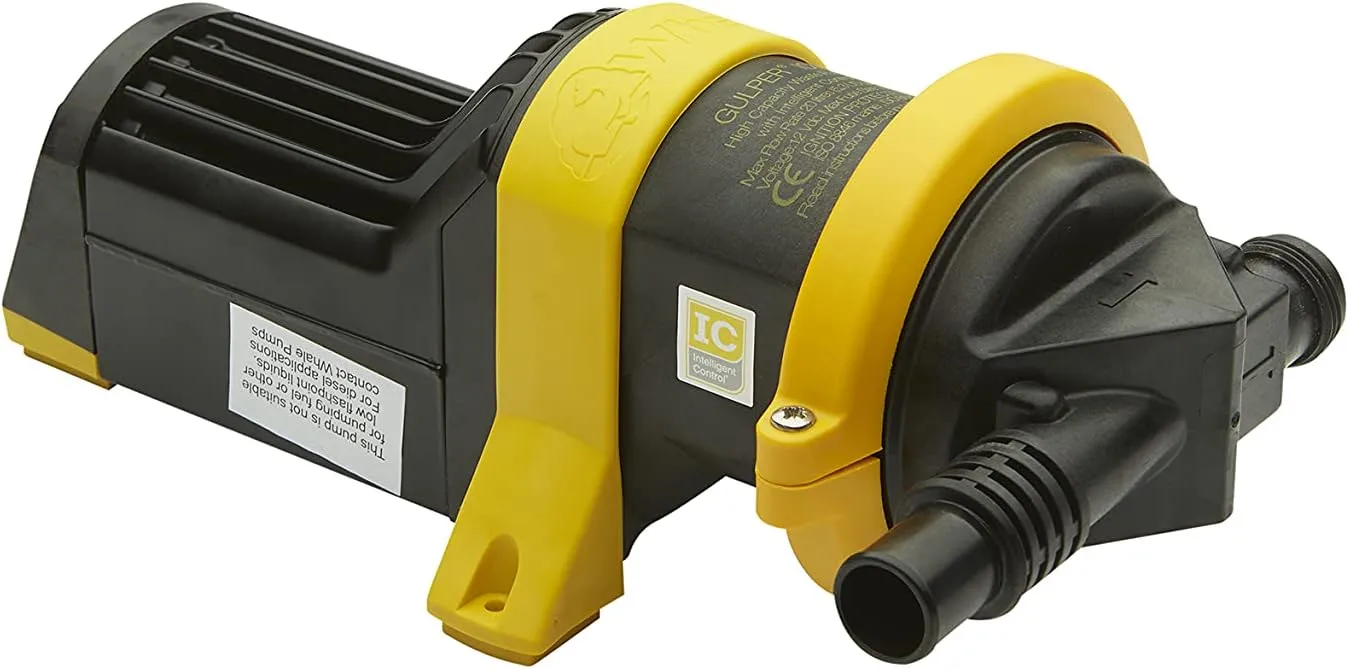

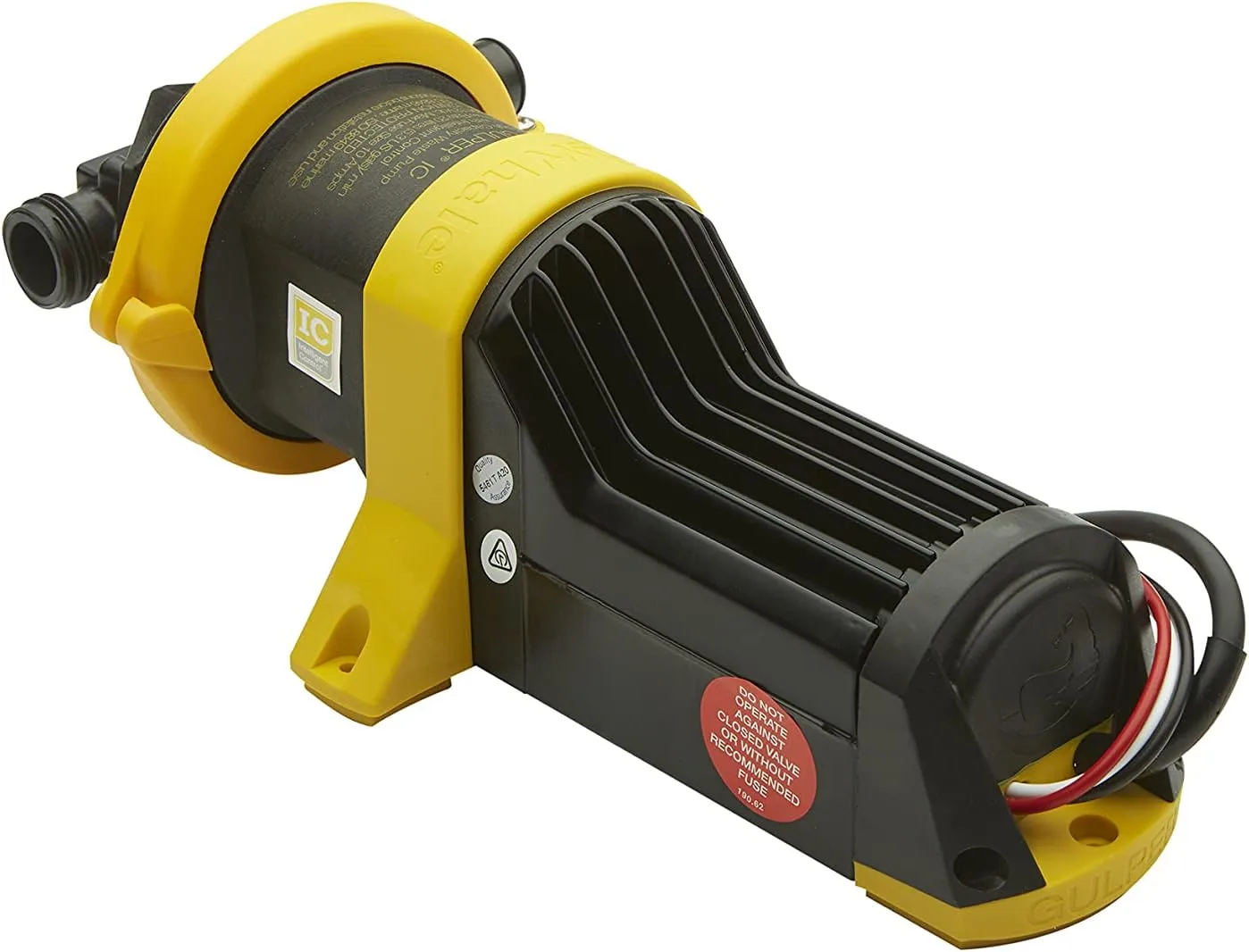

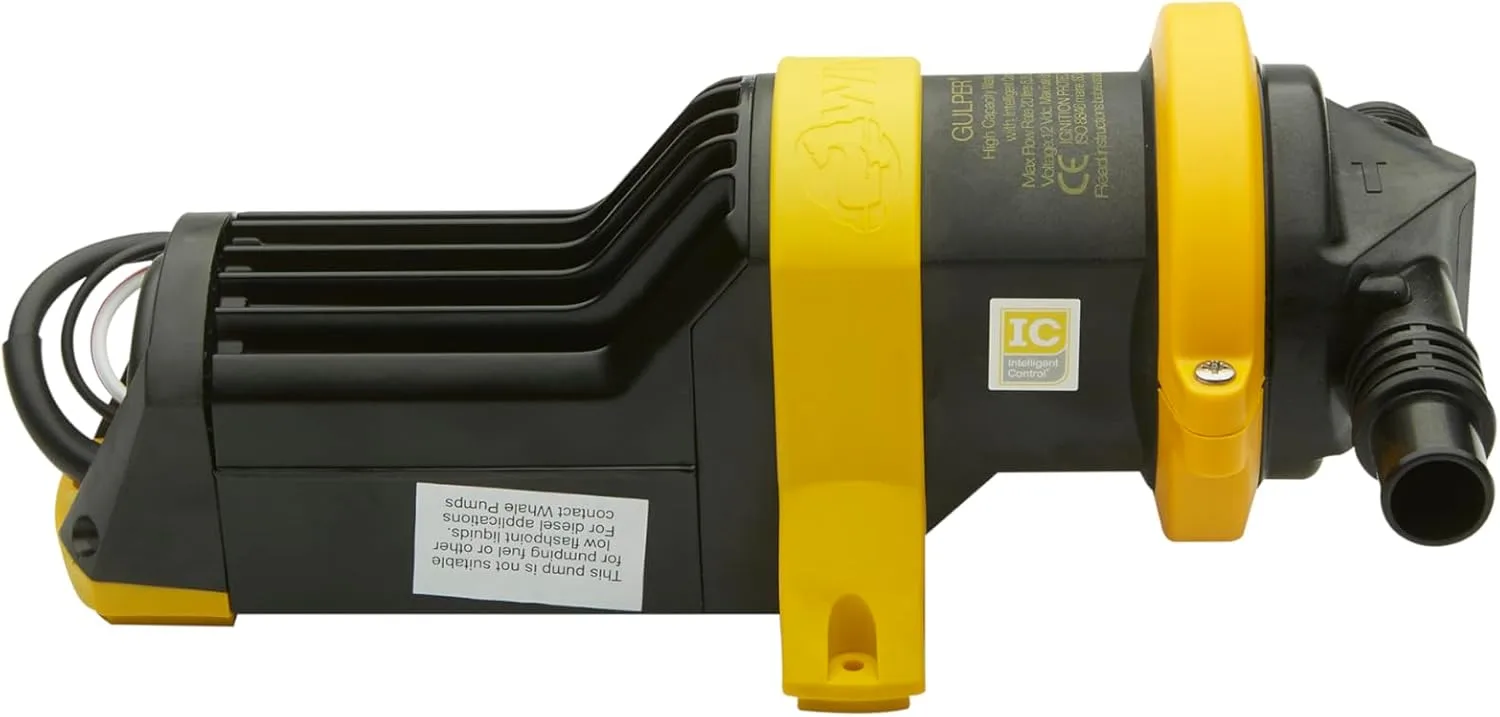

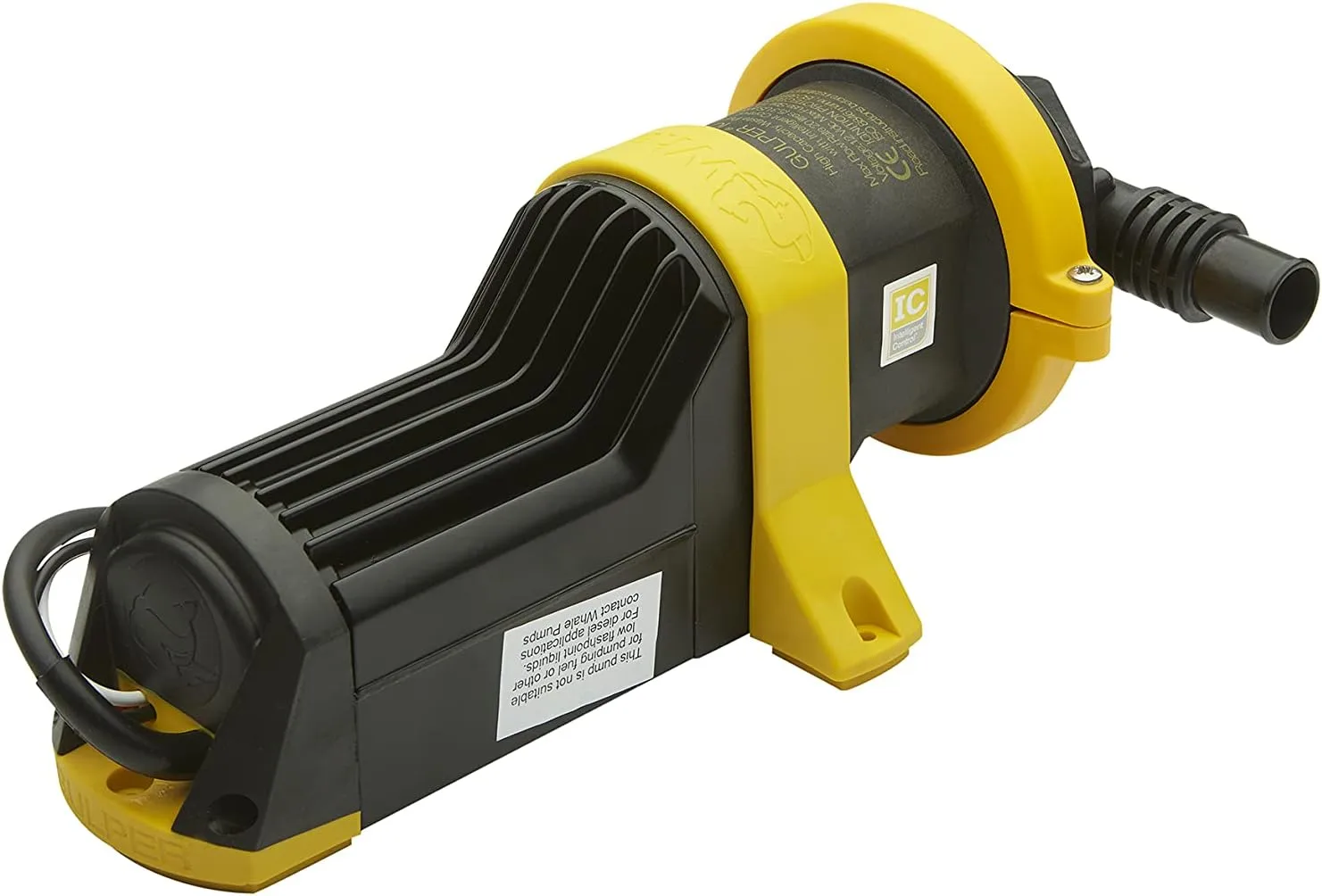

Whale WM8284, Gray IC Waste Pump, 12V, Automatic Waste Removal from 2 Drains, 5 Gal./Minute, Compact, Service-Free
Customize
Grey IC Waste Pump 12V Unique Intelligent Control means Gulley IC Kit is all you need to manage waste from multiple drains through one pump Electrical signals are sent from the Two Way Manifold IC only when grey waste water needs to be pumped out Complete prewired grey waste system that handles waste from multiple drains using the high capacity Gulper IC pump. Features and Benefits Senses waste level through wall - not in contact with water Quiet drainage Removes the need to install a bulky grey waste tank Service free - No moving parts to clog or burn Fully potted circuitry - protected against water ingress WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . This Whale Gray IC Waste Pump uses innovative, built-in Intelligent Control to manage gray waste removal from two drains, operating only when water is present and needs to be pumped away. The Two-Way Manifold IC senses when water needs to be pumped, and delivers electrical signals to activate the pump. The compact pump fits in areas that could not accommodate sumps or waste tanks, and it delivers fast drainage with a flow rate of 5 gallons (19 liters) per minute. It is easy to install and is service-free as there are no moving parts to clog or burn. The kit includes a plug-and-play Gulper IC pump and a Two-Way Manifold IC with 13 feet (4m) of cable. The pump will deliver a long service life as it self-primes, can be run dry without causing damage, and it has a soft start for its own protection. It also operates with low-current controlled switching to prevent switch failure from high currents. This 12V DC pump weighs 5.3 pounds and uses barbed outlet connections of 3/4" (19mm) and 1" (25mm).

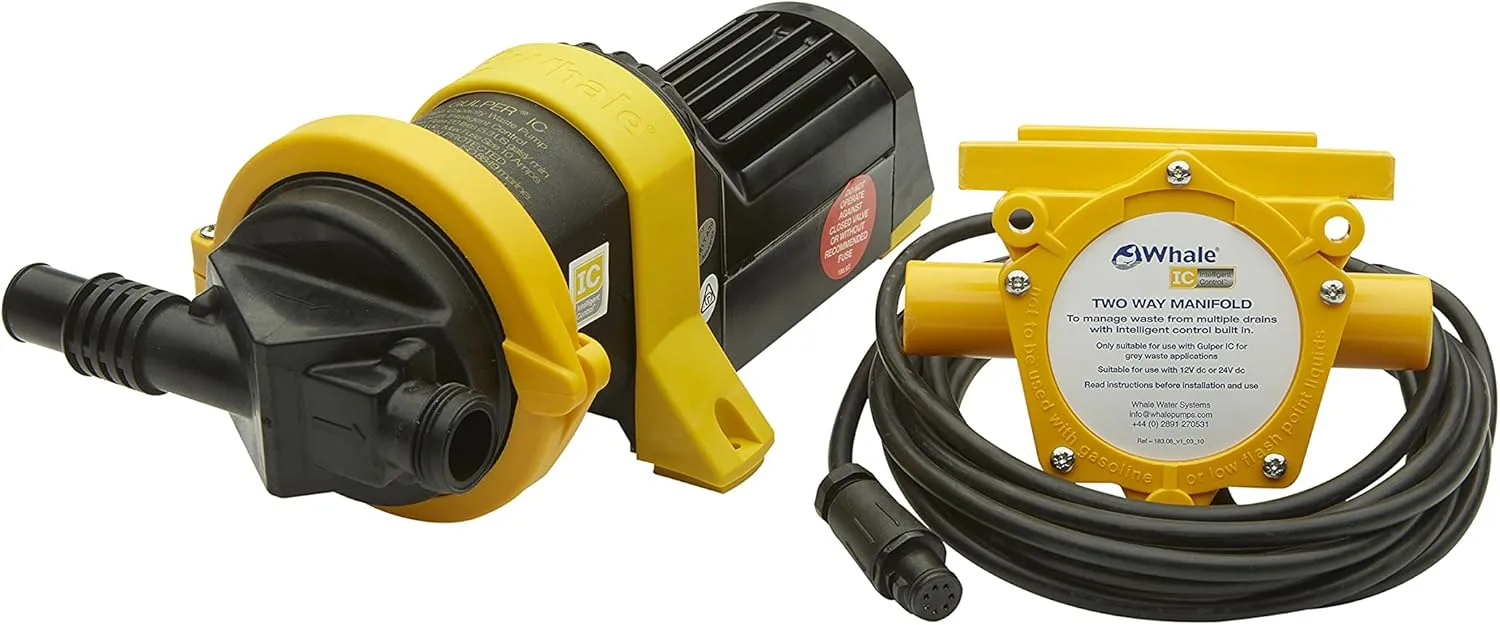

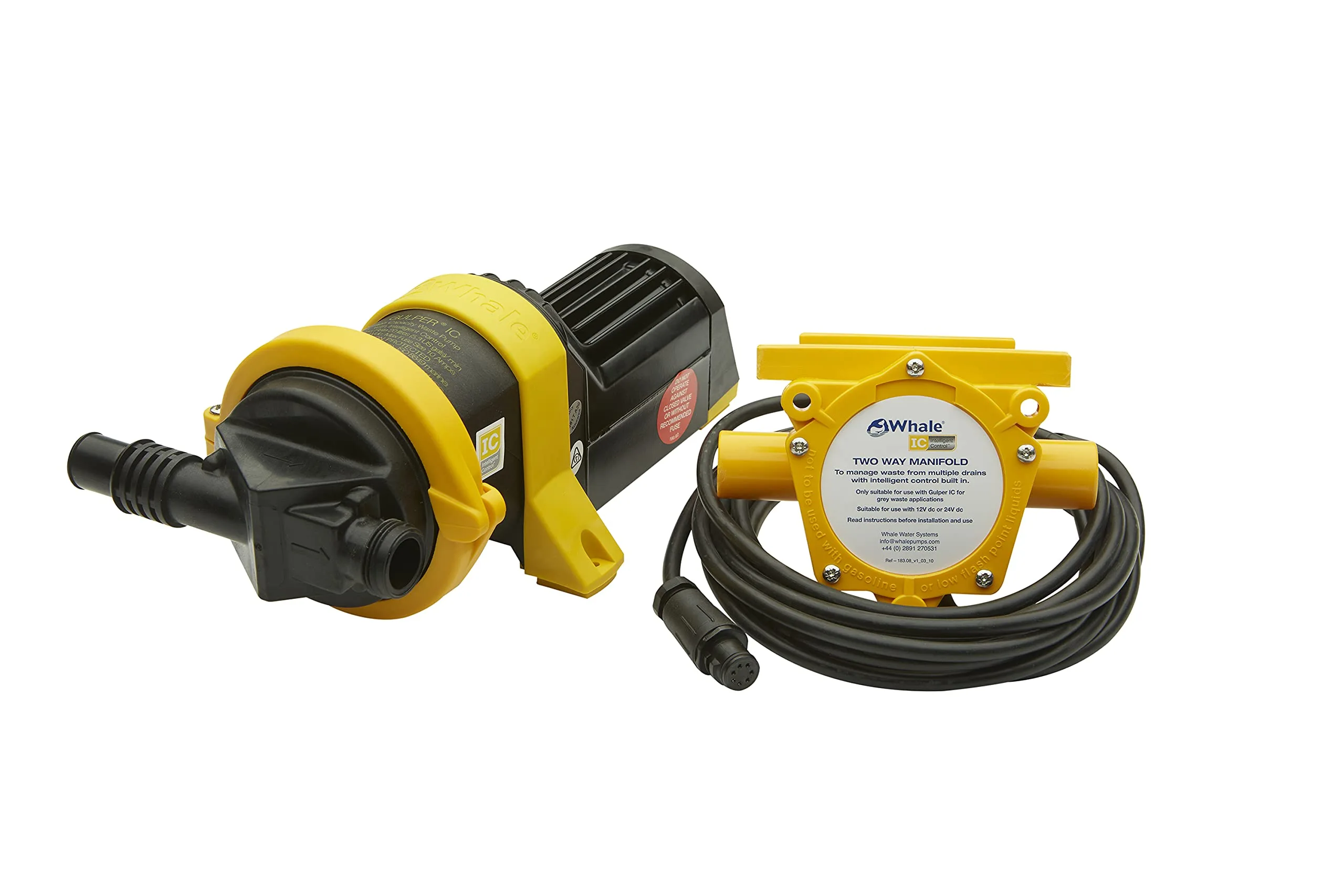

- Includes plug-and-play 12V Gulper IC pump and Two-Way Manifold IC with 13 feet (4m) of cable
- Delivers fast drainage with flow rate of 5 gallons (19 liters) per minute; install easily and is service-free with no moving parts to clog or burn
- Compact, self-priming pump fits in areas too compact for sumps or waste tanks

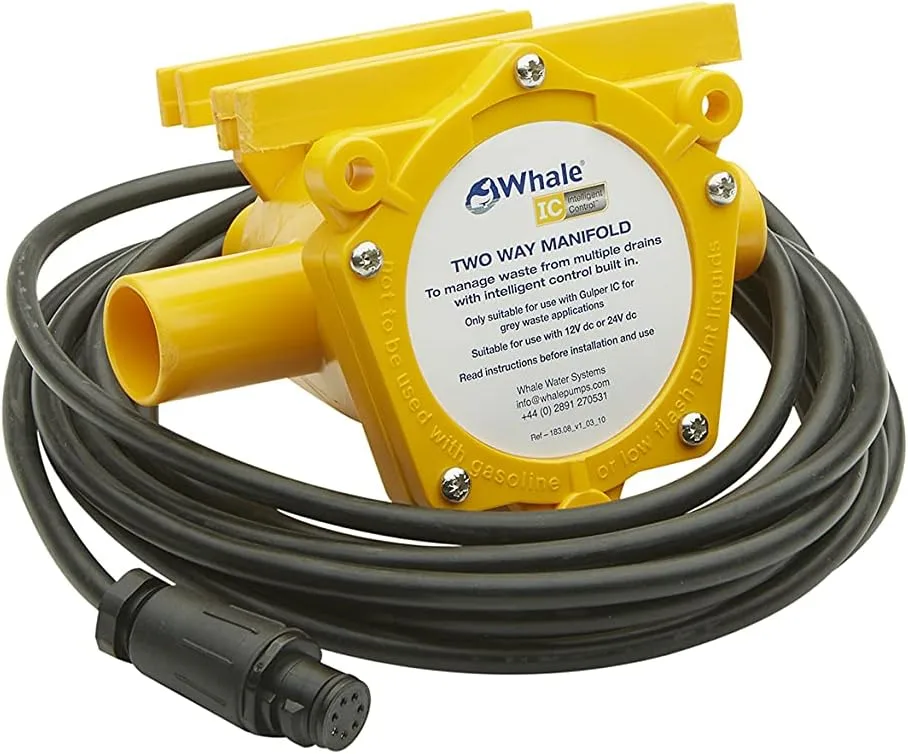

- Two-Way Manifold IC senses presence of water and delivers electrical signals to activate pump
- Innovative, built-in Intelligent Control manages gray waste removal from two drains so the pump runs only when water needs to be removed
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |
| EU Spare Part Availability Duration | 5 Years |
| Included Components | End Product & Information |
| Inlet Size | 3/4" Or 1" |
| Maximum Flow Rate | 5 Gallons Per Minute |
| Model Name | Whale Boating Tools |
| Number of Items | 1 |
| Operation Method | Automatic |
| Outlet Size | 3/4" Or 1" |
| Power Source | DC Power Source |
| Style | Bilge |
| Type | Waste Pumps |
| UPC | 766478945716 |
| Voltage | 12 Volts |
| Sizing & Dimensions | |
| Height | 6 inches |
| Length | 12 inches |
| Product Dimensions | 12 x 8 x 6 inches |
| Size | One Size |
| Weight | 5.3 pounds |
| Width | 8 inches |
| Technical Specifications | |
| Gallons Per Minute | 5 Gpm |
