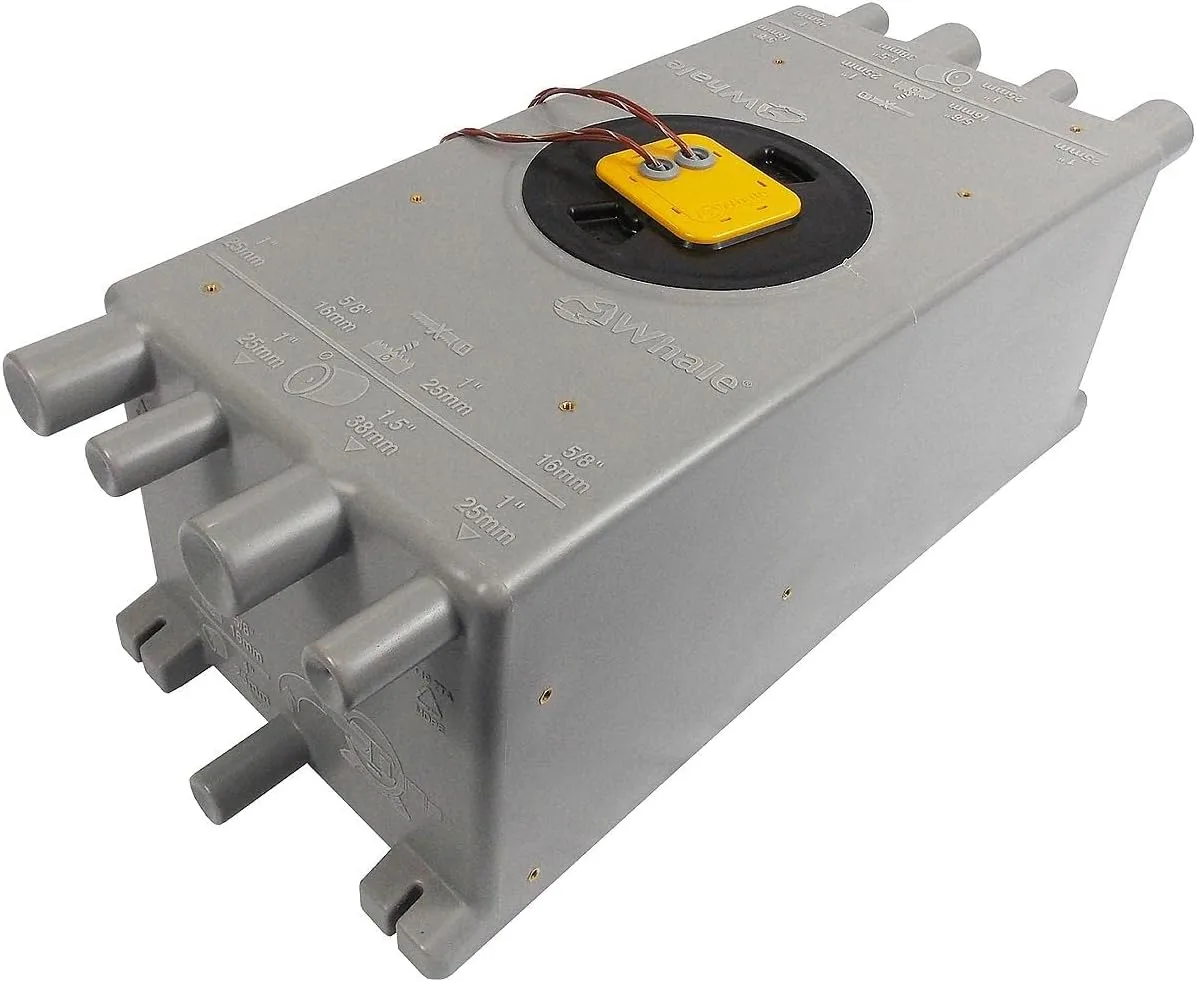

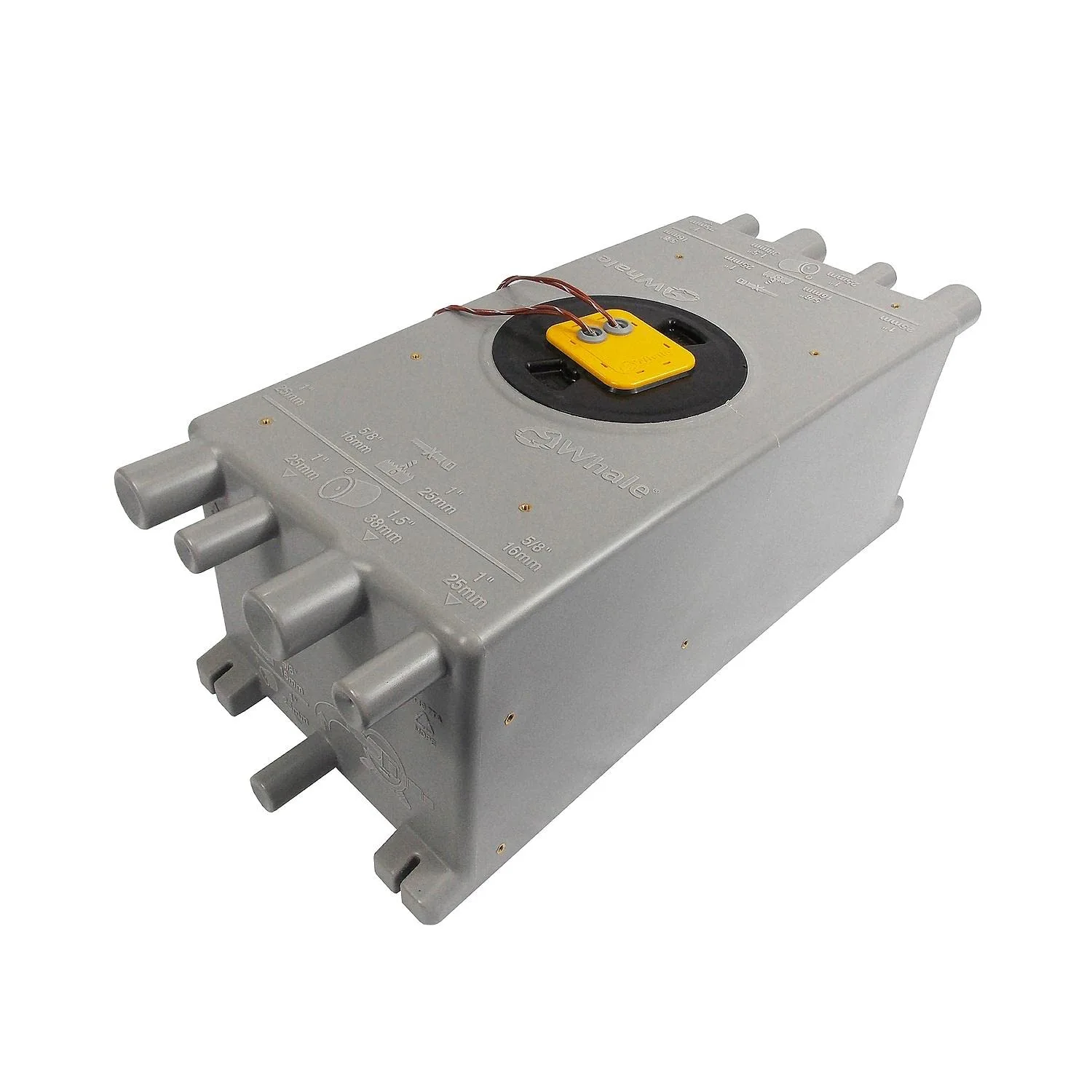

Whale GT0810B Gray Waste Tank, 2.1-Gal. (8 Liters) Capacity, Sealed Electronics, 1 Sensor, Works with 12V or 24V Pump

Grey Waste Tank - 8 Liter - 2.1 Gallons - 1 Sensor This tank has a unique ‘triple seal’ lid that isolates electronics from the harsh grey waste environment for advanced durability. Features: Integrated sensors for automatic pump control; a solid-state switch protected against water ingress Easy wiring - connect any 12V or 24V DC pump system (up to 20 amps with no relay required) Ports shaped for drilling accuracy (8-liter and 20-liter tanks only) Double switch models - the second sensor can be wired to a high-level alarm or second pump Pumps can be top- or side-mounted on a 20-liter tank Specifications: Capacity: 8 liters (2.1 gallons) No. of Sensors: 1 Electrical Connections: Tinned wire ends Inlet Hose Connections: 19mm (¾") x 2, 25mm (1") x 3, 38mm (1½") x 3 Outlet Hose Connections: 19mm (¾") x 1, 25mm (1") x 1 Materials: Tank: MDPE, Seals: EPDM/Neoprene, Monprene , Lid: Glass-filled Polypropylene, ABS, Polyurethane Service Kits (Lid & Sensor Array): AK1005 This Whale Gray Waste Tank has a unique and innovative triple-seal lid that isolates the electronics from harsh gray waste for the most reliable operation and durability. This 2.1-gallon (8 liters) tank has an integrated sensor for automatic pump control, and the solid-state switch is protected against water ingress. The tank is constructed and wired for the easy addition of any 12V or 24V pump system (up to 20 amps with no relay required). The pump can be side-mounted, and is sold separately. The tank is also designed for the easy installation of inlet and outlet hoses, with ports shaped for drilling accuracy. Two inlet hose connections are ¾-in. (19mm); three are 1-in. (25mm); and three are 1.5-in. (38mm). There is one ¾-in. (19mm) outlet hose connection, and one of 1-in. (25mm). Premium, durable materials ensure a long, reliable service life. The tank is made of MDPE, the seals are EPDM/Neoprene and Monprene , and the lid is made of glass-filled polypropylene and ABS. The tank is backed by a 3-year . Whale designs and manufactures reliable marine water system products which are easy to install and use; providing boaters with hot and cold water, waste management and durable bilge pumps for peace of mind.

• Durable tank is made of MDPE, seals are EPDM/Neoprene and Monprene , and lid is glass-filled polypropylene and ABS
• Inlet and outlet ports are shaped for drilling accuracy; 2 inlet connections are ¾-in. (19mm); 3 are 1-in. (25mm); and 2 are 1. 5-in. (38mm); one outlet connection is ¾-in. (19mm), and one is 1-in. (25mm)
• Tank is designed for easy addition of any 12V or 24V pump (up to 20 amps with no relay required); pump can be side-mounted
• 2. 1-gallon (8 liters) tank has integrated sensor for automatic pump control; solid-state switch is protected from water ingress

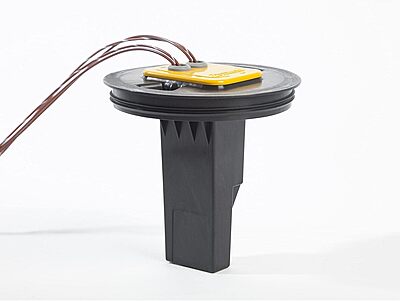

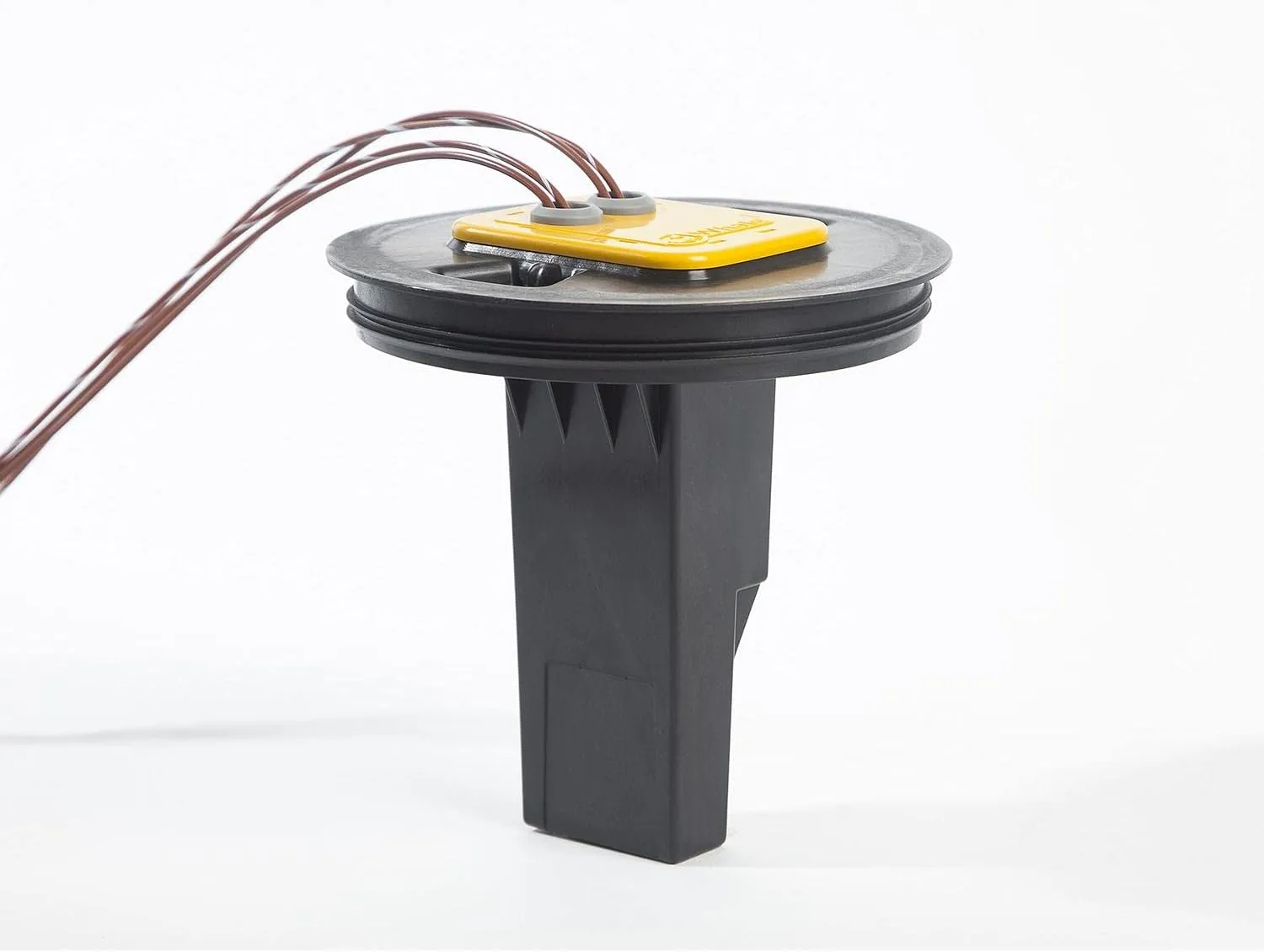

• Innovative triple-seal lid isolates internal electronics from harsh gray waste for reliable operation and durability
