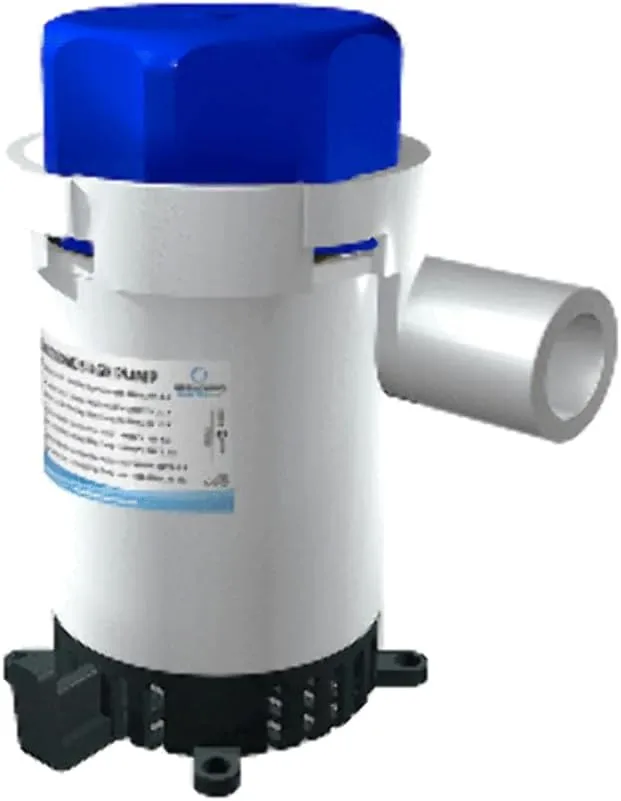

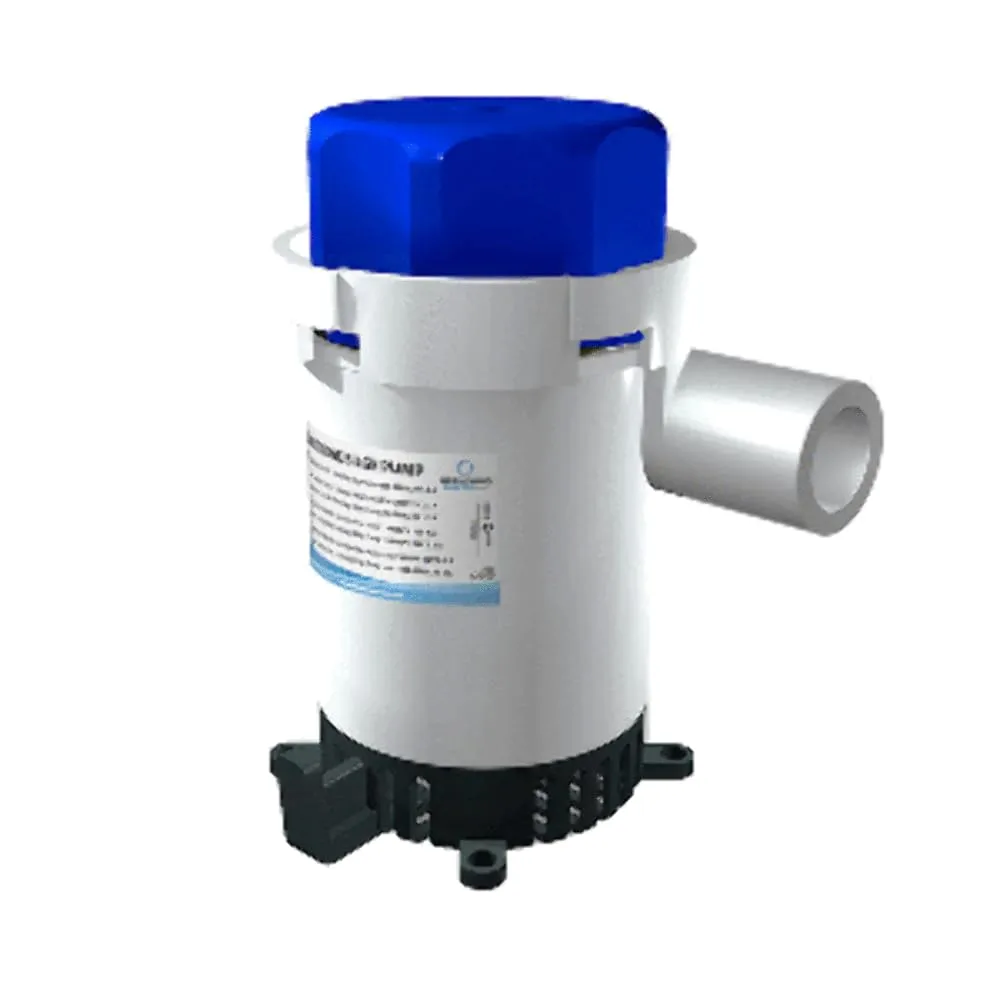

Cartridge Bilge Pump 1100GPH - 12V Submersible bilge pump 12V with pump capacity 75 L/min (1100 GPH) and 65 L/min (1000 GPH) at 0,9m (3ft) head. Stainless steel shaft, compact and easy to install. Features: Tough thermoplastic ABS housing with detachable universal base plate with strainer and pin (for “T-slot”) to attach a level switch for automatic operation Replaceable cartridge motor Easy maintenance and low power consumption Specifications: Fixed 29 mm (1,15’) straight discharge port Amperage: 4A Fuse Size: 5A Length: For pleasure boats from 8m (25 Ft) to 10m (30 Ft), Gallons Per Hour: 1100 GPH , Gallons Per Minute: 18 GPM , Operation: Non-Automatic , Type: Electric , Volts: 12v , Outlet Size: 1-1/8"
- Powerful
- Compact Design
- Replaceable Cartridge
- 1100 GPH
Specifications:
| Materials & Construction |
| Color | White |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details |
| Model | 01-02-005 |
| Operation | Non-Automatic |
| Power Source | Corded Electric |
| Style | Bilge Pump |
| Type | Electric |
| Sizing & Dimensions |
| Height | 4.6 inches |
| Length | 3.1 inches |
| Product Dimensions | 3.1"L x 4"W x 4.6"H |
| Weight | 10.1 ounces |
| Width | 4 inches |
| Technical Specifications |
| Amperage | 4A |
| Country of Origin | Italy |
| Fuse Size | 5A |
| Gallons Per Hour | 1100 Gph |
| Gallons Per Minute | 18 Gpm |
| Maximum Flow Rate | 1.1E+3 Gallons Per Minute |
| Outlet Size | 1-1/8" |
| Power Source | Corded Electric |
| Voltage | 12 Volts (DC) |
