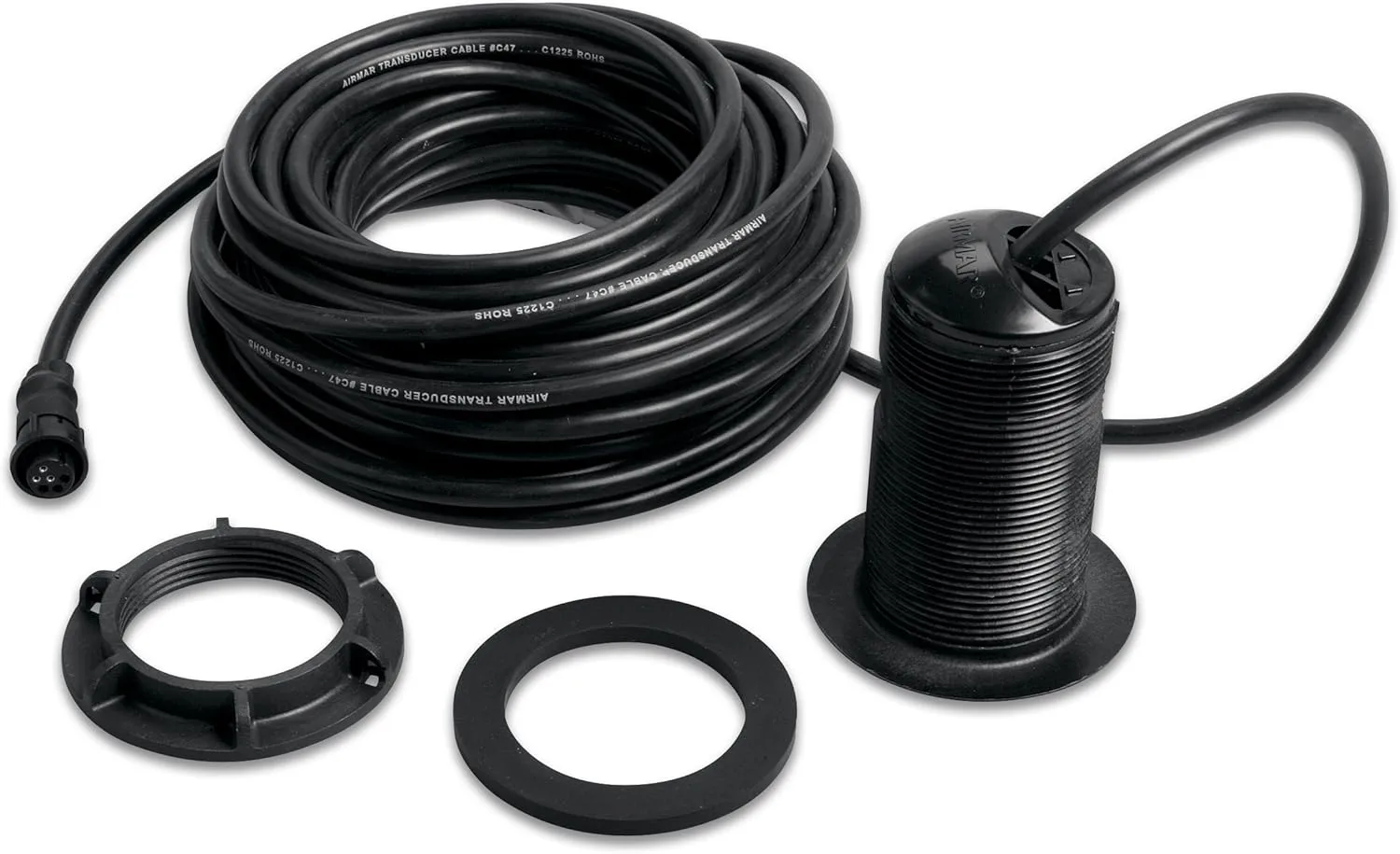

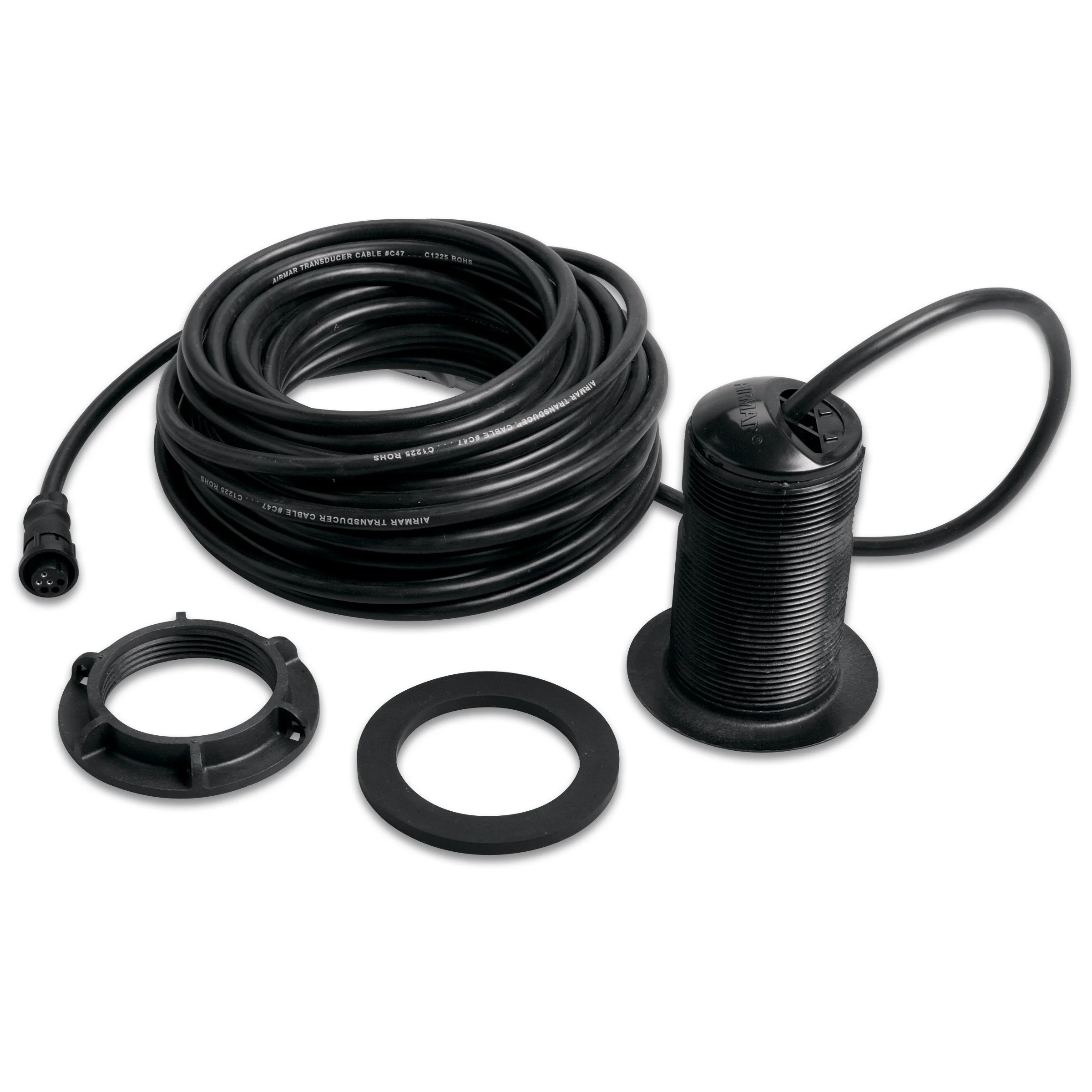

Garmin 010-10218-22 Airmar P19 Plastic Thru-Hull Mount Transducer, Black
Customize
This Garmin Airmar P19 Plastic Thru-Hull Mount Transducer (model 010-10218-22) is a low-profile plastic thru-hull transducer designed for cruising powerboats and sailboats. The P19 provides strong, reliable depth returns with a nearly flush housing that minimizes drag (housing extends only ~5 mm outside the hull). It performs well at high speeds and is suited for fiberglass and metal hulls. This 8-pin 500 W transducer provides depth to approximately 900 ft and operates effectively across 77/200 kHz. The element is tilted 20° (fixed) to provide built-in deadrise compensation (suitable for 16° to 24° hull deadrise), delivering a vertical beam for more accurate depth readings. Right-angle cable exit reduces headroom and offers protection when stepped on. Kit includes installation instructions and a rubber washer for tightening to irregular hull surfaces. Optional temperature sensor available. Applications: cruising powerboats and sailboats. Mounting style: Thru-Hull. Cable length: 30'.
- Product Type - FISHING EQUIPMENT
- Item Package Quantity - 1
- Item Package Weight - 1.6 Pounds
- Item Package Dimension: 7.87L x 6.14W x 3.43H inches
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Cable Length (Feet) | 30' |
| Chirp | No |
| Imaging | Standard |
| Item model number | 010-10218-22 |
| Mounting Style | Thru-Hull |
| Other display features | Wireless |
| Pins | 8 |
| Speed Included | No |
| Temperature | Yes |
| Whats in the box | Garmin Airmar P19 Plastic Thru-Hull Mount Transducer |
| Sizing & Dimensions | |
| Height | 5.12 inches |
| Length | 3.15 inches |
| Product Dimensions | 3.15 x 3.15 x 5.12 inches |
| Weight | 1 pounds |
| Width | 3.15 inches |
| Technical Specifications | |
| Is Discontinued By Manufacturer | No |
