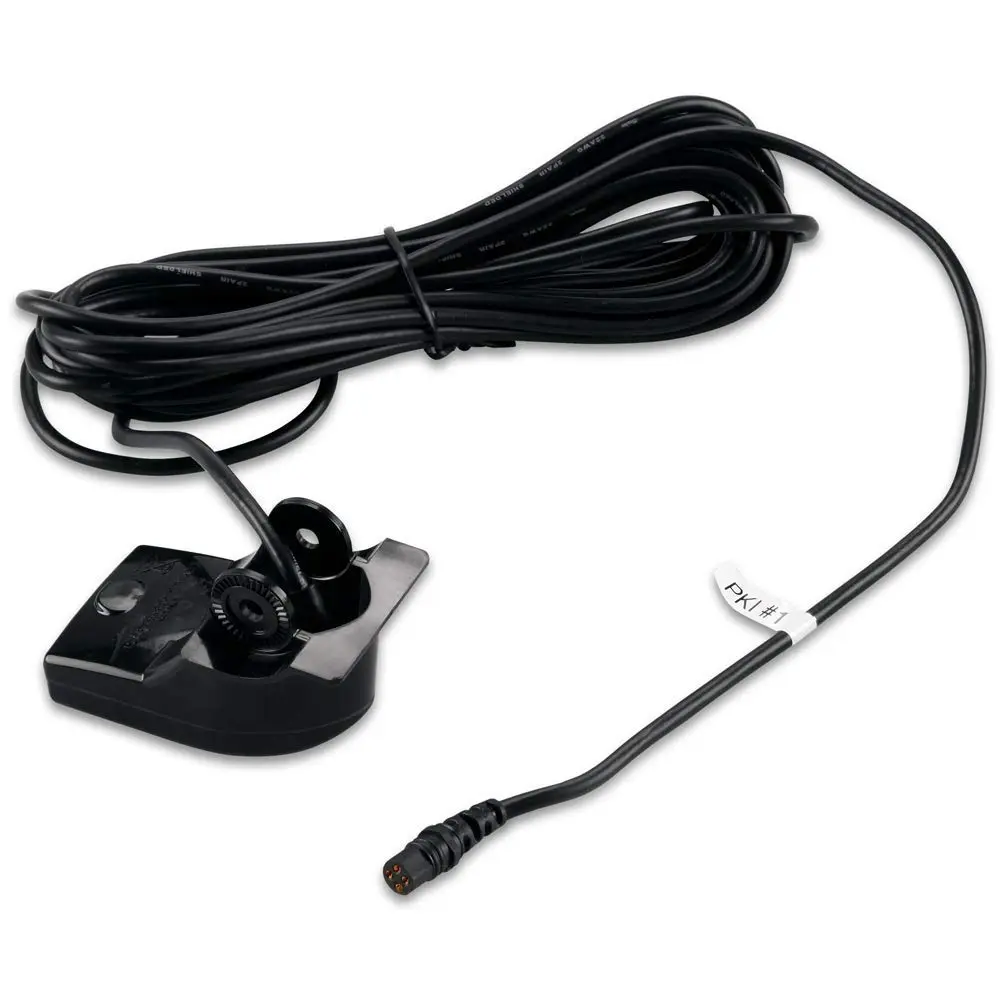

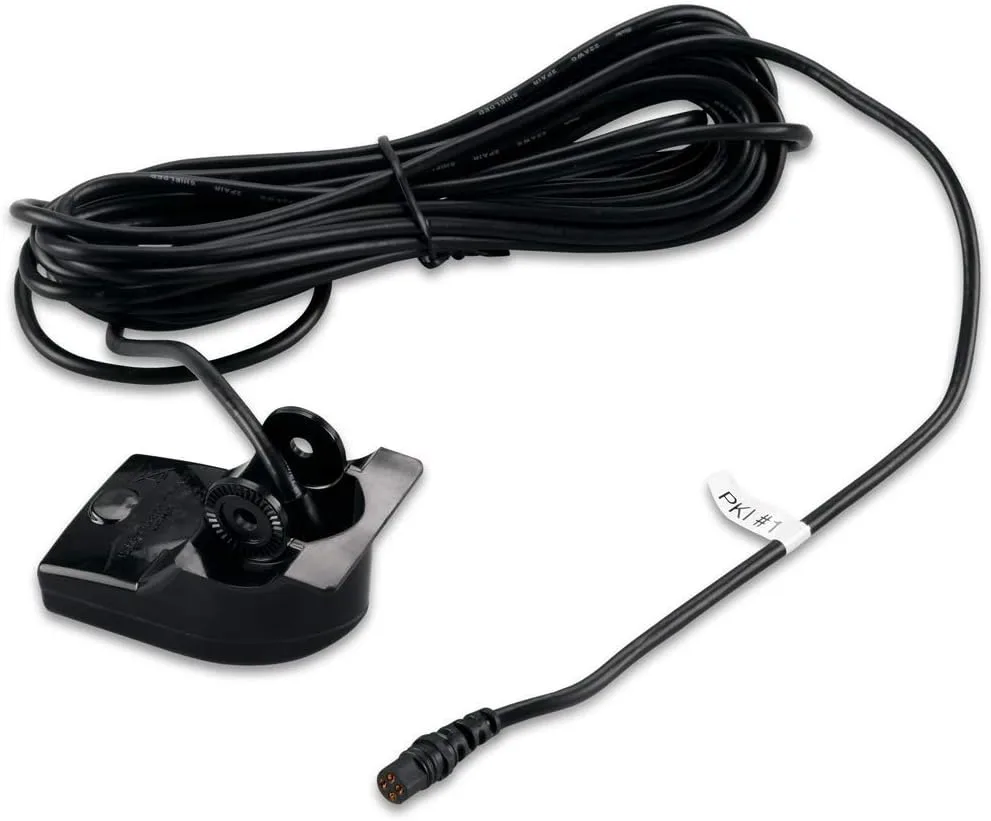

Garmin Transom/Trolling Motor Mount Dual Beam Transducer, Standard Packaging
Customize
Dual-Beam Transducer with Transom/Trolling Motor Mount for echo Series Fishfinders. Want to use your echo series fishfinder in more than one vessel? A second transducer can make the process a lot easier. It comes with all of the hardware you need to mount on your transom or trolling motor. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Features & Compatibility (from Rainforest data): Compatible with echo, echoMAP CHIRP 42dv, 43dv, 44dv, 45dv, 52dv, 53dv, 54dv, 55dv, Striker. Package weight: 1.0 lbs. When using with the echo MAP 50s/70s, transducer adapter cable part number 010-11948-00 is required. When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11614-00 is required. This dual beam transducer replaces the one included with your echo series 500 W 4-pin transducer; an operating frequency of 77 to 200 kHz; a beam width of 45 to 15 degrees; and mounts on a 0 to 70 degree transom. Technical & Package Info: Cable length 30' (30 feet). Imaging: Standard. Mounting style: Transom. Pins: 4. Cable and mounting hardware included. Color: Black. Material: Plastic.
- Compatible with echo, echoMAP CHIRP 42dv,43dv,44dv,45dv,/52dv,53dv,54dv, 55dv, Striker.
- Package weight: 1.0 lbs
- When using with the echo MAP 50s/70s, transducer adapter cable part number 010-11948-00 is required
- When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11614-00 is required
- This dual beam transducer replaces the one included with your echo series 500 W 4-pin transducer; an operating frequency of 77 to 200 kHz; a beam width of 45 to 15 degrees; and mounts on a 0 to 70 degree transom
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Product Details | |
| Included Components | Garmin 010-10249-20 Garmin Transducer Dual Beam |
| Model Name | 010-10249-20 |
| Number of Items | 1 |
| Size | cable length (feet) = 30' | fairing block"cluded |
| Style | Transducer |
| Sizing & Dimensions | |
| Height | 8.3 inches |
| Item Dimensions Lx Wx H | 7.4 x 2.2 x 8.3 inches |
| Item Package Dimensions L x W x H | 9.76 x 8.03 x 2.28 inches |
| Length | 7.4 inches |
| Product Dimensions | 7.4 x 2.2 x 8.3 inches |
| Weight | 4 ounces |
| Width | 2.2 inches |
| Technical Specifications | |
| Cable Length (Feet) | 30' |
| Chirp | No |
| Imaging | Standard |
| Mounting Style | Transom |
| Pins | 4 |
| Speed Included | No |
| Temperature | Yes |
