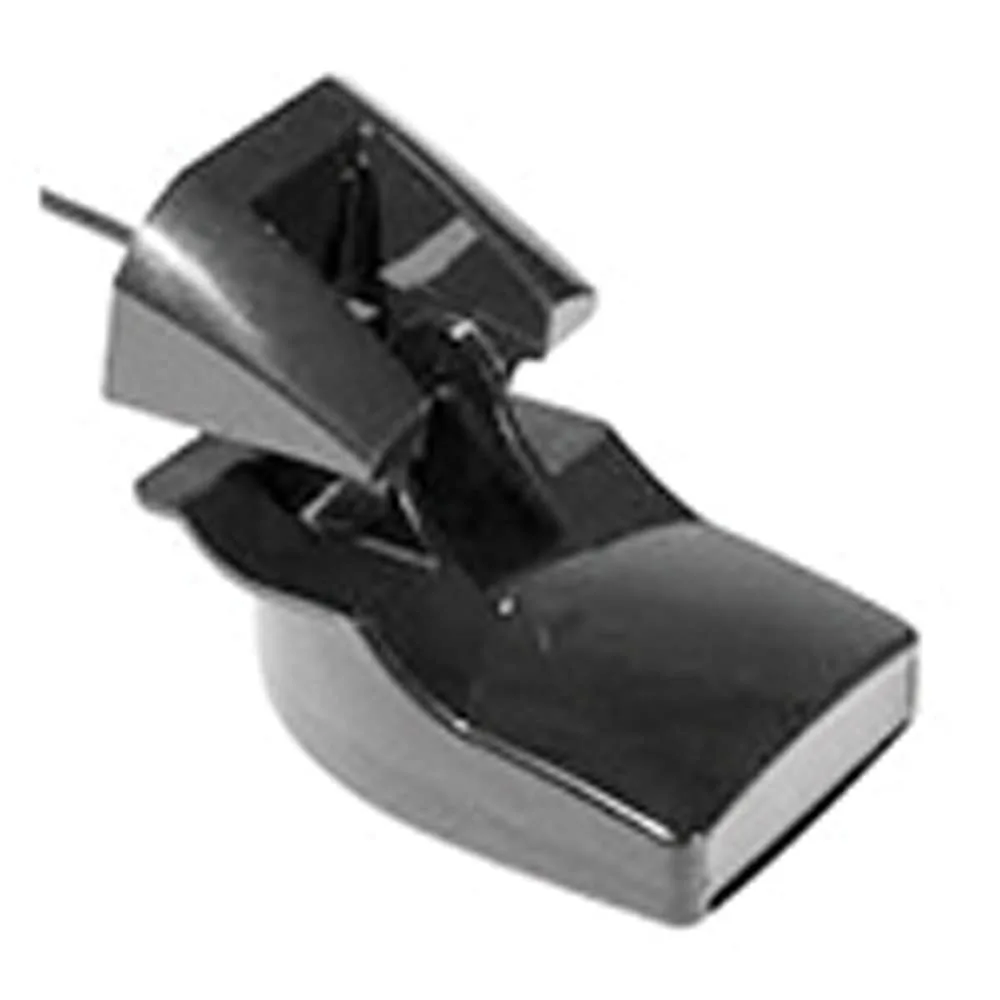

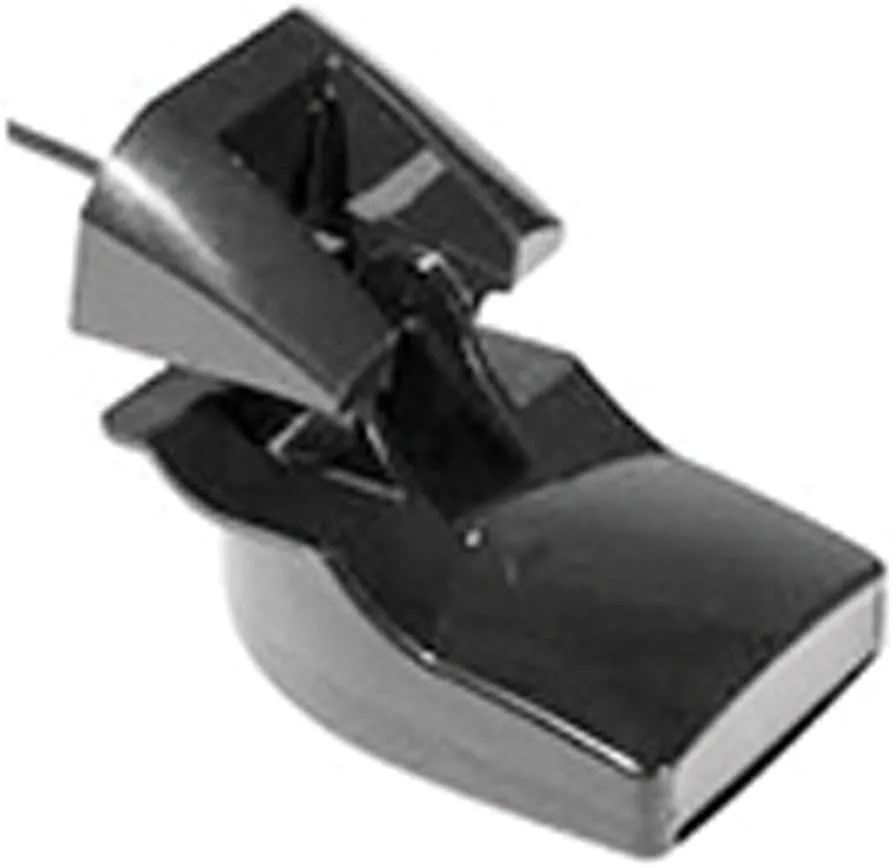

Garmin 010-10272-10 Transducer 50/200kHz - 8-Pin, Black
Customize
Transom Mount Depth/Temp 50/200kHz - 8-Pin This plastic transom mount can be used to replace the dual frequency transducers included with many Garmin units. The 500 W 8-pin transducer has a maximum depth of 1,500 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 40 to 10 degrees; and mounts on a 0 to 70 degree transom. Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat. When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Temperature: Yes , Speed Included: No , Mounting Style: Transom , Imaging: Standard , Chirp: No , Cable Length (Feet): 30' , Pins: 8
- Item Package Weight - 1.5 Pounds
- Item Package Quantity - 1
- Product Type - GPS OR NAVIGATION SYSTEM
- Item Package Dimension: 10L x 8W x 2.6H inches
Specifications:
| Materials & Construction | |
| Color | black |
| Product Details | |
| Audio Output Mode | Digital |
| Connectivity technologies | Bluetooth |
| Included Components | Garmin Transducer 8-Pin , black |
| Item model number | 010-10272-10 |
| Mounting Style | Transom |
| Mounting Type | Panel Mount |
| Special Feature | Anti Glare Screen |
| Whats in the box | Garmin Transducer 8-Pin , black |
| Sizing & Dimensions | |
| Height | 3.94 inches |
| Length | 3.15 inches |
| Product Dimensions | 3.15 x 3.15 x 3.94 inches |
| Product Dimensions (Length x Width x Height) | 3.15 x 3.15 x 3.94 inches |
| Weight | 1 pounds |
| Width | 3.15 inches |
| Technical Specifications | |
| Cable Length (Feet) | 30' |
| Chirp | No |
| Country of Origin | Taiwan |
| Imaging | Standard |
| Item Package Dimension | 10L x 8W x 2.6H inches |
| Item Package Quantity | 1 |
| Model Name | Garmin Transom Mount Depth/Temp 50/200kHz - 8-Pin |
| Pins | 8 |
| Power | 500 W |
| Speed Included | No |
| Sport | Boating |
| Temperature | Yes |
| Vehicle Service Type | Boat |
