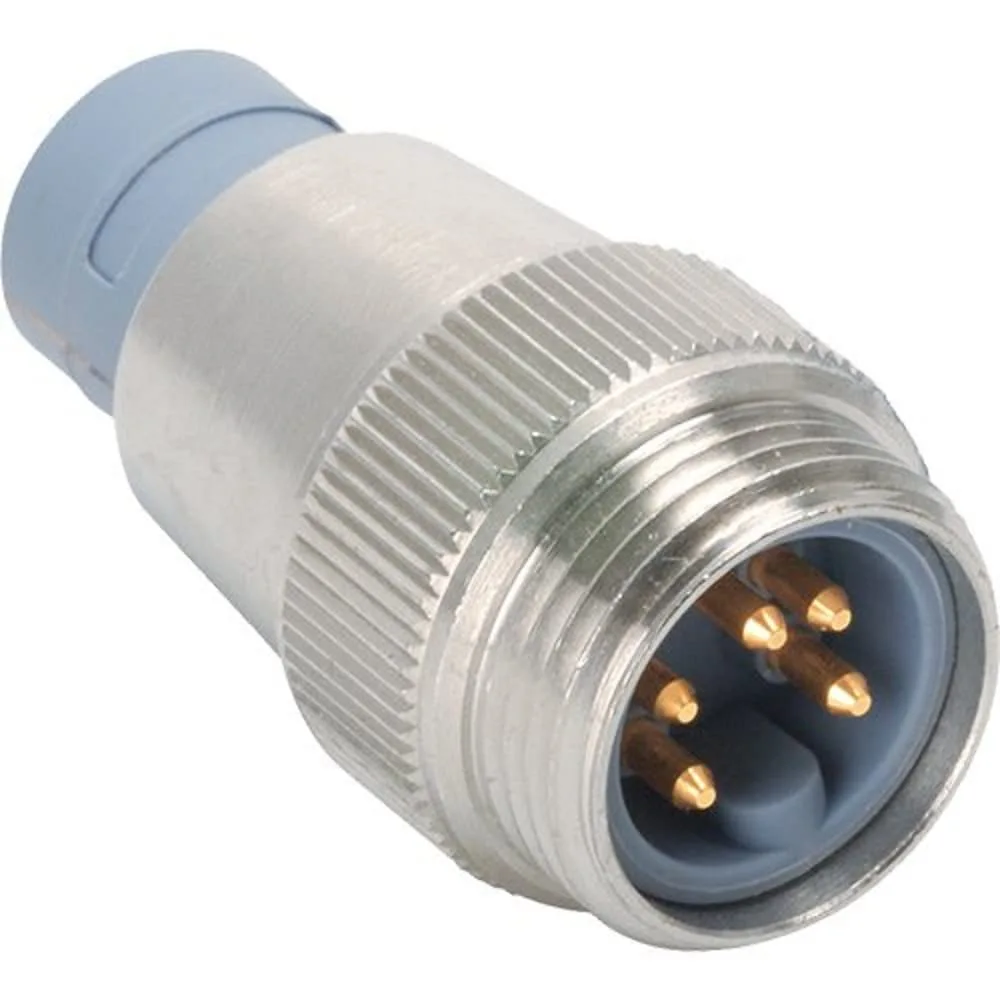

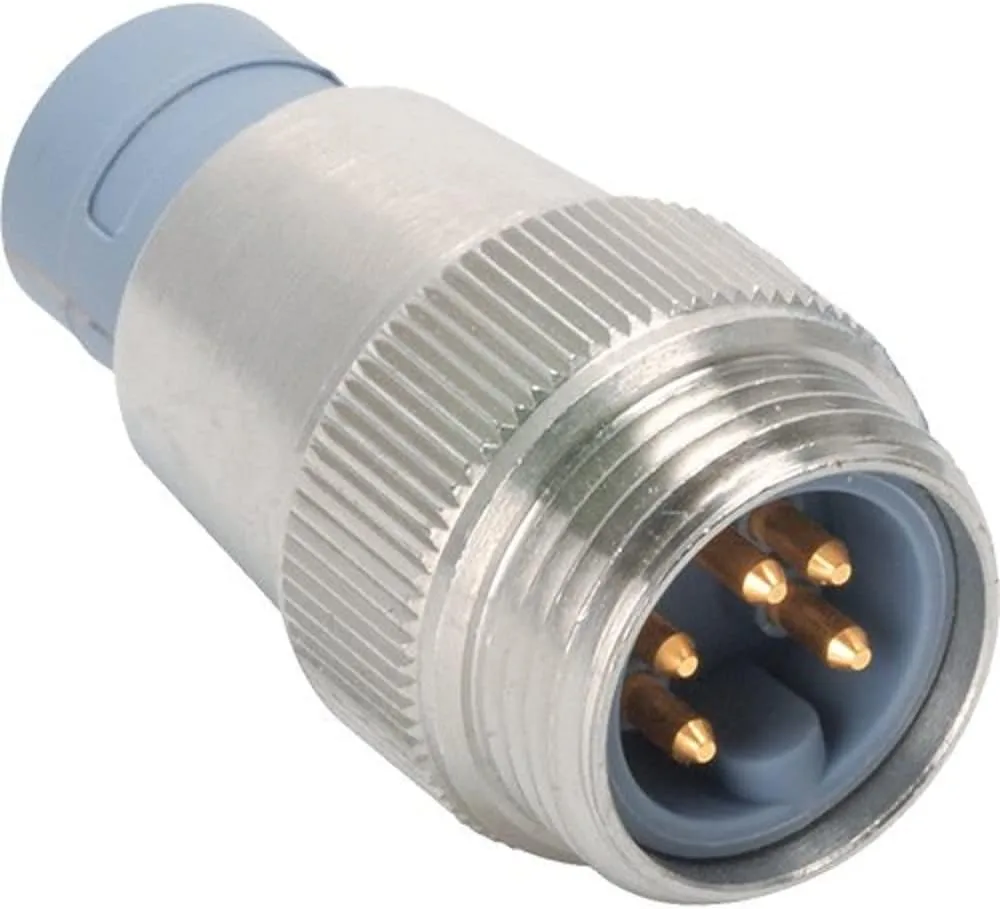

Termination Resistors are required on a NMEA 2000 network and are placed at each end of a network trunk cable. The MARETRON TR-NM mini termination resistor (male) is a diagnostic version that indicates correct polarity at a glance to ensure power connections have been made properly. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge. The TR-NM features a screw connector for positive connection and is used to terminate both ends of the trunk line. Specifications include 120 ohms, 300 V DC rating, compact 1 x 1 x 1 inch form factor and lightweight construction for easy installation in marine GPS and NMEA 2000 accessory applications.
- 300 V DC, 120 ohms
- Screw Connector for positive connection
- Diagnostic versions indicate correct polarity at a glance to ensure power connections have been made properly
Specifications:
| Materials & Construction |
| Material | Other |
| Product Details |
| Included Components | TR-NM |
| Model Name | TR-NM |
| Number of Items | 1 |
| Sizing & Dimensions |
| Height | 1 inches |
| Length | 1 inches |
| Product Dimensions | 1 x 1 x 1 inches |
| Weight | 2.4 ounces |
| Width | 1 inches |
| Technical Specifications |
| Item Dimensions Lx Wx H | 1 x 1 x 1 inches |
| Item Package Dimensions L x W x H | 8 x 6 x 3 inches |
