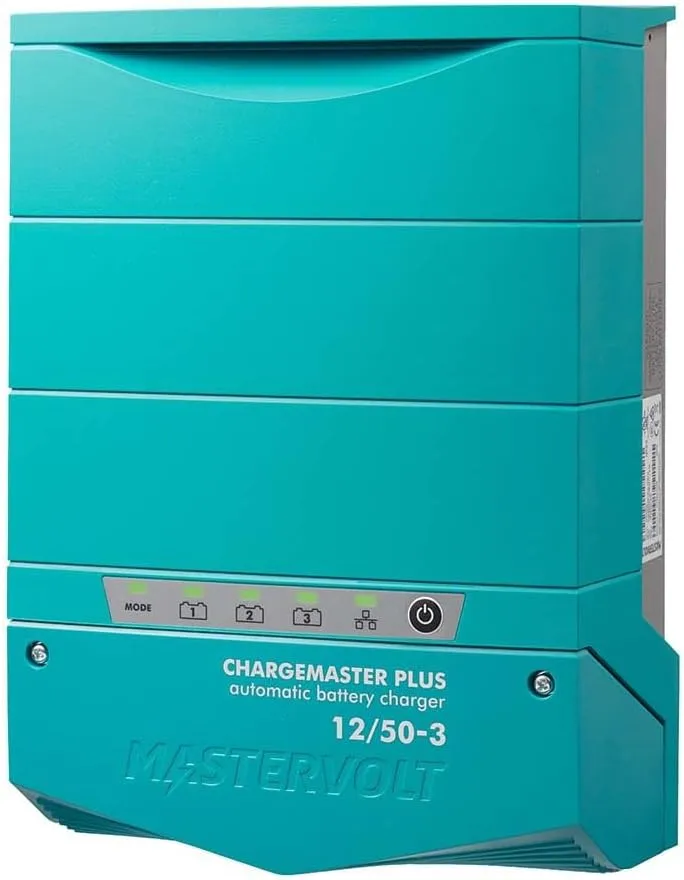

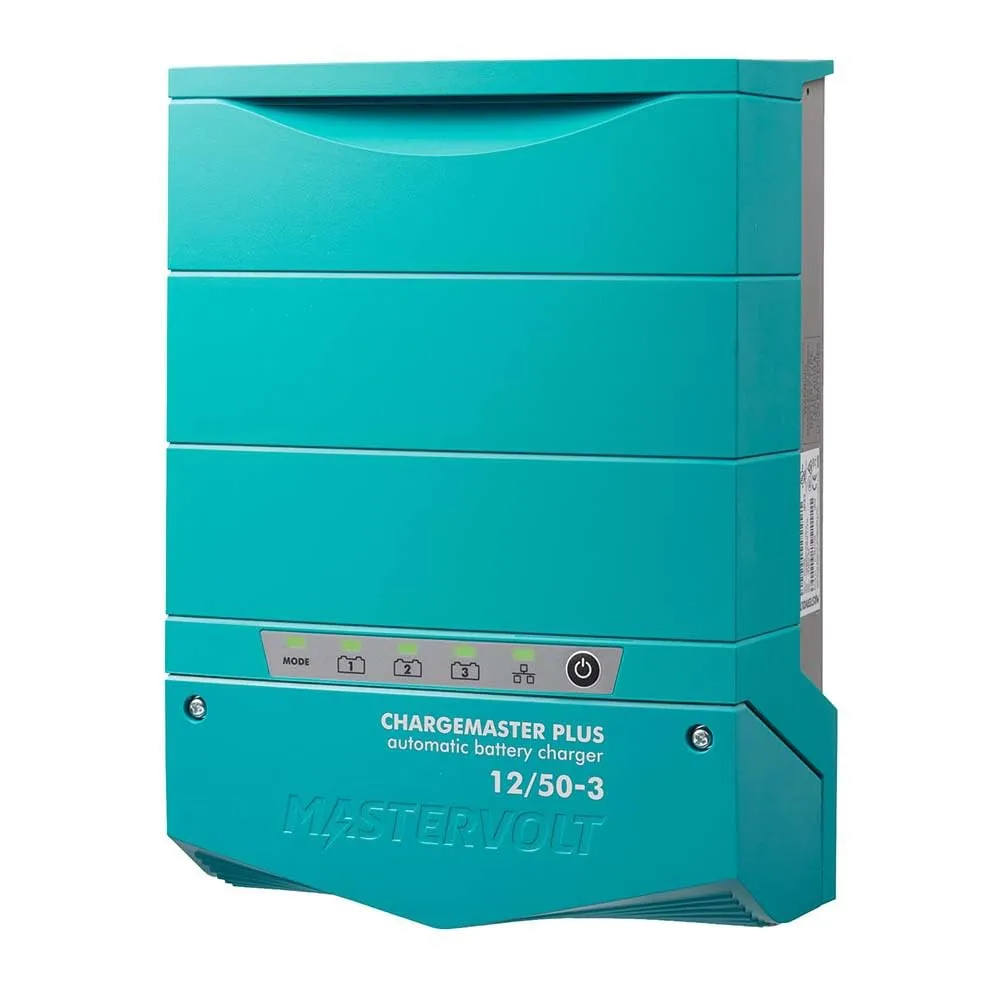

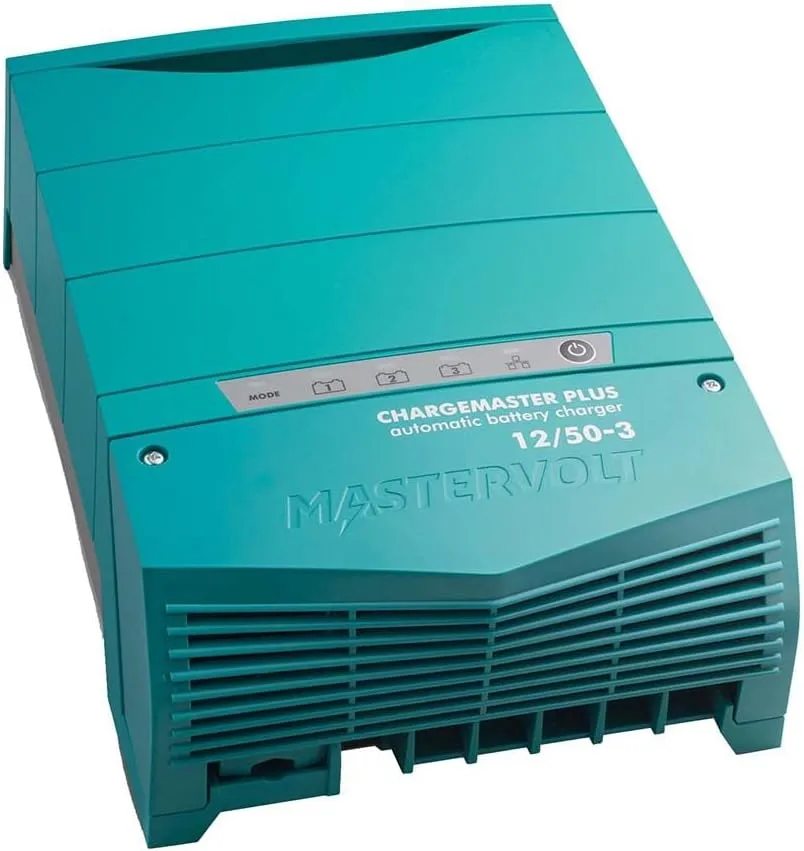

Mastervolt 44310505 ChargeMaster Plus 12/50-3 Battery Charger
Customize
Make the most of your batteries with the ChargeMaster series, plugging in and charging anywhere in the world. Mastervolt’s ChargeMaster guarantees fast and complete charging of your batteries no matter where you are. Thanks to Mastervolt’s innovative 3-step+ charging process, batteries also perform better and last longer. All ChargeMasters can be easily connected to a MasterBus network with only one cable and one connection (with the exception of the ChargeMaster 12/10, ChargeMaster 12/15-2, and ChargeMaster 24/6). What’s more, you have the option for central, local, or remote monitoring, configuration, and control of your system. Clear Display: A clearly lit display on the ChargeMaster provides all essential information: charge current, charge voltage, charge phase, and battery content measurement and/or battery condition measurement as a percentage of available Ah capacity. The display also provides an indication of MasterBus communication. Three buttons adjacent to the read-out panel allow for easy operating of the entire system. The ChargeMaster is available in various models to guarantee you the ideal battery charger for any situation and demand. Suitable for recreational and semi-professional use and for any battery type including Lithium-Ion. Features include 3-Step+ charging technology for fast and complete charging, memory function to prevent overcharging with unreliable mains, galvanic isolation, and the ability to charge multiple battery banks simultaneously. Auto-ranging input (90-265 V AC, 50/60 Hz) supplies a maximum capacity wherever you are. Robust metal-to-metal connectors with strain relief prevent corrosion and overheating. Built-in MasterBus connectivity for system integration. Clear control panel and mounting bracket included.
- Mastervolt 44310505 Chargemaster Plus 12/50-3 Battery Charger
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | plastic |
| Outer Material | plastic |
| Product Details | |
| Charger Input - Voltage | 120/230v |
| Charger Output - Amps | 50a |
| Charger Output Voltage | 12v |
| Charging Banks | 3 |
| Included Components | Mastervolt 44310505 Chargemaster Plus 12/50-3 Battery Charger |
| Model Name | Mastervolt 44310505 Chargemaster Plus 12/50-3 Battery Charger |
| Number of Items | 1 |
| Output Voltage | 12 Volts (DC) |
| Portable | No |
| Size | One Size |
| Specification Met | UL |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 11.46 inches |
| Length | 8.27 inches |
| Product Dimensions | 8.27 x 4.13 x 11.46 inches |
| Size | One Size |
| Weight | 5.5 pounds |
| Width | 4.13 inches |
| Technical Specifications | |
| Battery bank size | 100-500 Ah |
| Display/read-out | LED display |

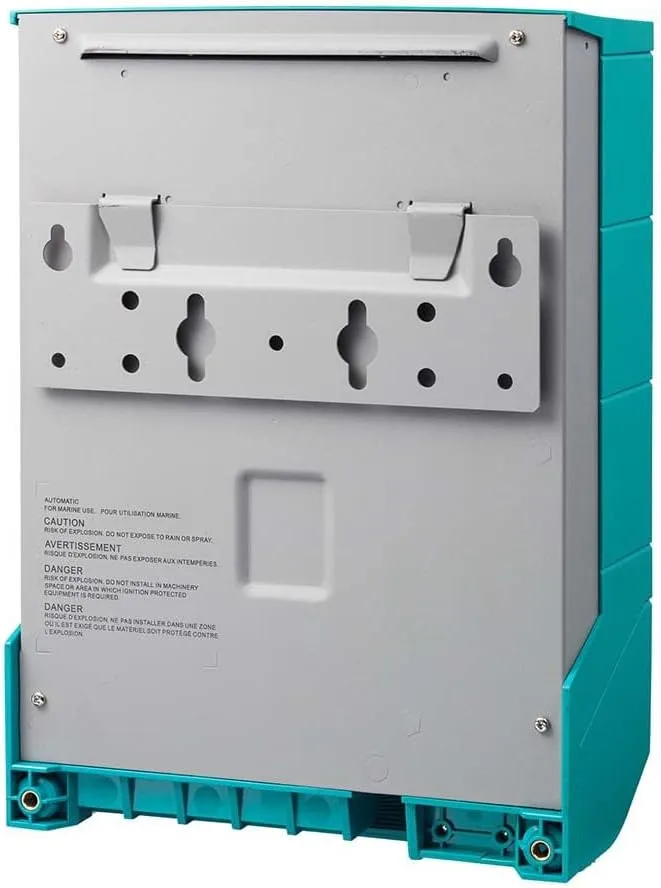

| Fastening | Mounting bracket (included) or 4x screw |
| Galvanic isolation | Yes |
| Nominal output voltage | 12V |
| Number of battery outlets | 3 |
| Power supply mode | Yes |
| Total charge current | 50 A at 14.4 V |
