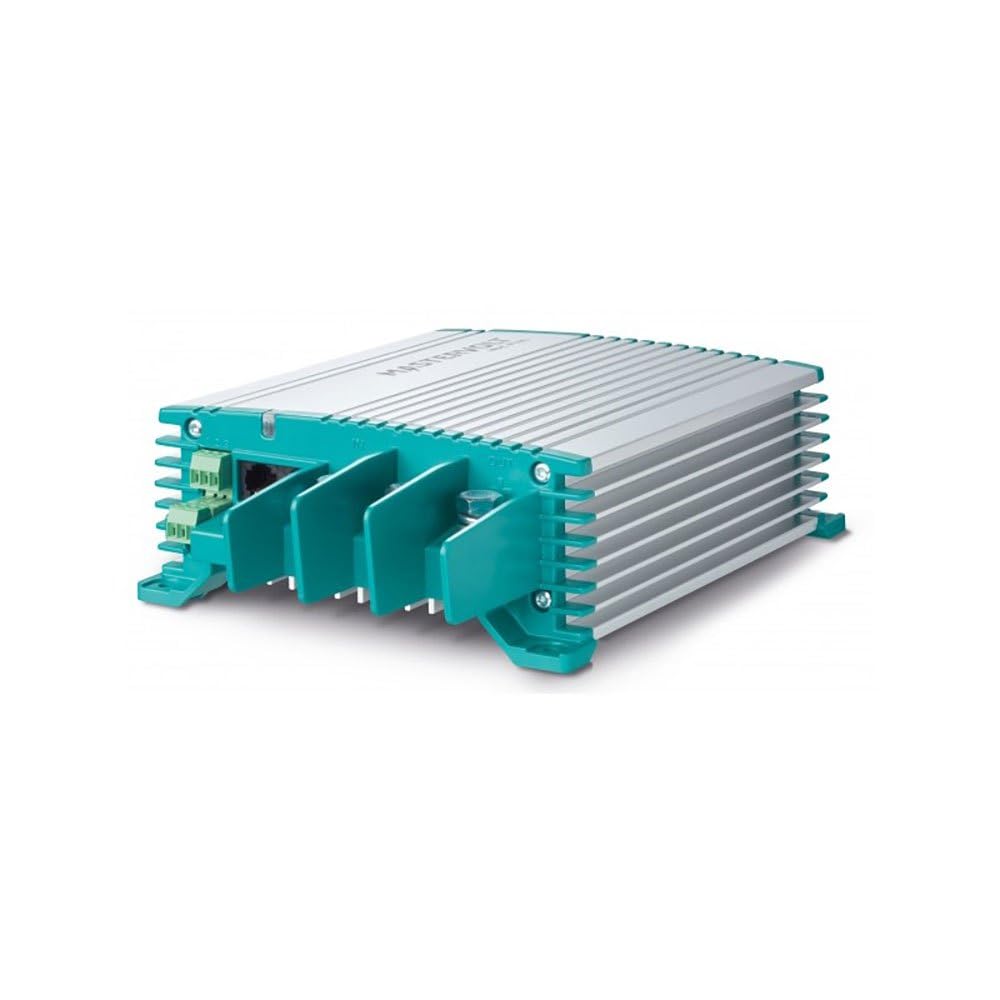

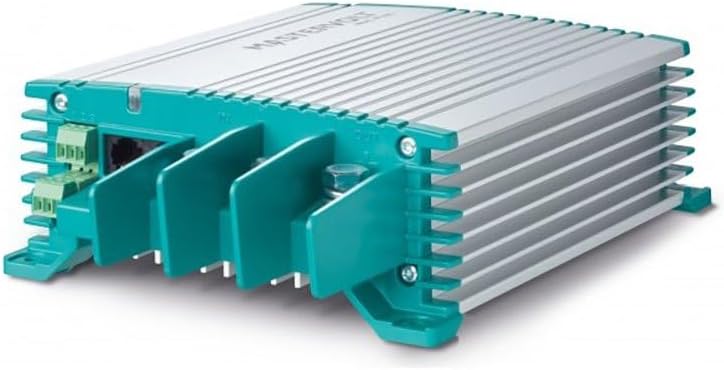

Mac Plus 12/12-50 + CZone — Boost the Service Battery. The Mastervolt Mac Plus DC-DC charger supplies a quick, safe and consistent charge to service batteries even with smart alternators and start/stop systems. Using the proven Mastervolt 3-step+ charge algorithm, the Mac Plus charges depleted batteries quickly and safely. Robust aluminum housing and fanless design ensure quiet, reliable operation with protection against dust and water ingress. The Mac Plus supports a wide DC input range, multiple chemistries including lithium (LiFePO4), and can charge two batteries from a single alternator or charger. It supports MasterBus, CZone and NMEA 2000 for superior monitoring and control and offers features such as temperature compensation, voltage sense ports, adjustable current limits for Euro 5/6 requirements, voltage stabilization, engine run detection to protect starter batteries, parallel operation to exceed 100 A, and heavy-duty connections for easy installation. Technical highlights include 12 V nominal output, up to 50 A charge current, output voltage stabilization (2%), efficiency >95% (peak 97%), and IP23 protection. Package dimensions are 15 x 9 x 4 inches and package weight is 5.6 pounds.
Specifications:
| Materials & Construction |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details |
| Included Components | Great Product |
| Model Name | 81205105 |
| UPC | 816882023491 |
| Warranty Description | Warranty |
| Sizing & Dimensions |
| Weight | 5.6 pounds |
| Technical Specifications |
| Charger Input - Voltage | 12v |
| Charger Output - Amps | 50a |
| Charger Output Voltage | 10-15v |
| Output Voltage | 12 Volts (DC) |
