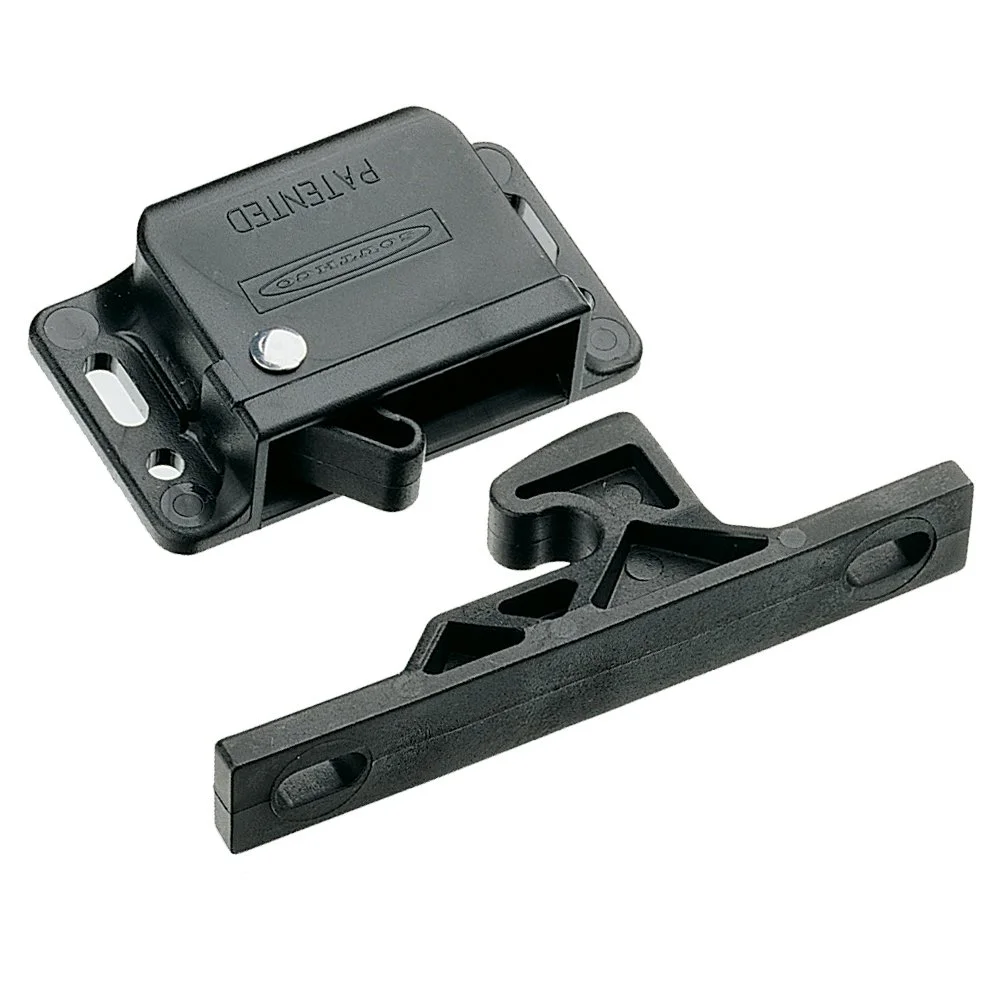

Grabber Catch Latch - Side Mount - Black - Pull-Up Force 13N (3lbf). Features: spring-loaded over-center latching; one assembly includes catch and keeper. Material and Finish: PC/ABS, black. Performance Details: Operating temperature range -30°C (-20°F) to 60°C (140°F). Flammability rating: UL94-HB. Installation Notes: Orient keeper to latch; the arrow on the keeper should point towards the cam; mount to door and adjust for smooth latching. Minimum distance from frame (or surface on which catch subassembly is mounted) to centerline of door hinge is 150 mm (5.9 in). Rainforest listing details: Passivated plastic grabber catch side mount concealed push-to-close latch with blue spring; 1 count. Product Dimensions (manufacturer): 2.01 x 0.98 x 0.31 inches; 0.6 ounces. Mounting Type: Side Mount. Finish Type: Unfinished. Unit Count: 1.0. Item model number: C3-803-P. Global Trade Identification Number: 00817382010875. UPC: 817382010875.
Specifications:
| Materials & Construction |
| Color | Black |
| Material | PC/ABS |
| Outer Material | PC/ABS |
| Product Details |
| Finish Type | Unfinished |
| Global Trade Identification Number | 00817382010875 |
| Item model number | C3-803-P |
| Mounting Type | Side Mount |
| Unit Count | 1.0 Count |
| UPC | 817382010875 |
| Sizing & Dimensions |
| Height | 0.31 inches |
| Length | 2.01 inches |
| Product Dimensions | 2.01 x 0.98 x 0.31 inches |
| Weight | 0.6 ounces |
| Width | 0.98 inches |
| Technical Specifications |
| Flammability Rating | UL94-HB |
| Mount Type | Side Mount |
| Operating Temperature Range | -30°C (-20°F) to 60°C (140°F) |
| Pull-up Force | 13N (3 lbf) |
| Unit Count | 1.0 Count |
