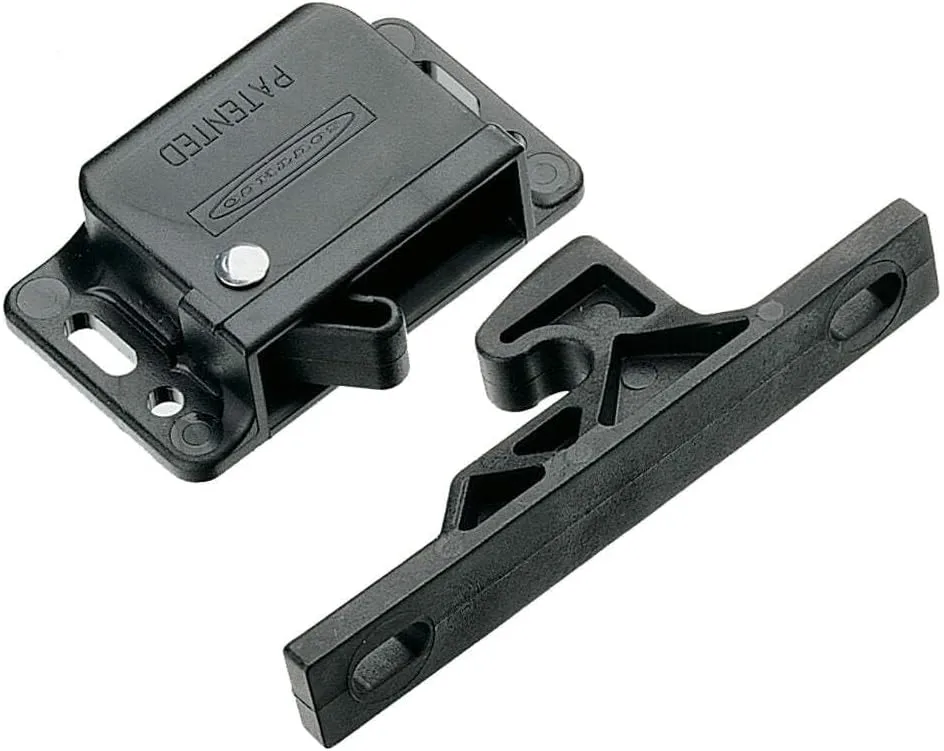

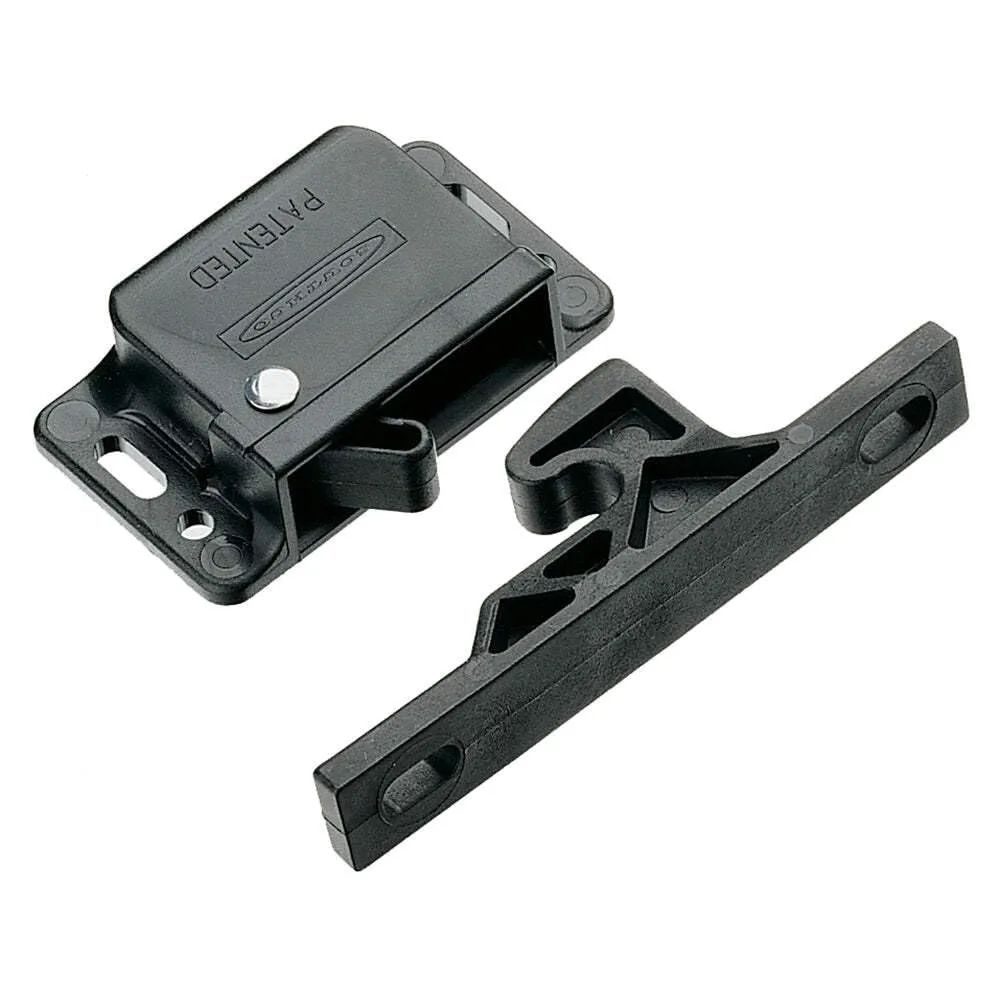

Grabber Catch Latch - Side Mount - Black - Pull-Up Force 22N (5lbf). Features: Spring-loaded over-center latching. One assembly includes catch and keeper. Material and Finish: PC/ABS, black. Performance Details: Operating temperature range: -30°C (-20°F) to 60°C (140°F). Flammability rating: UL94-HB. Installation Notes: Orient keeper to latch. The arrow on the keeper should point towards the cam. Mount to door and adjust for smooth latching. Minimum distance from frame (or surface on which catch subassembly is mounted) to centerline of door hinge is 150 (5.9). Great Product.
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | C3-805 |
| Operation Mode | Manual |
| Style | Standard |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 1 inches |
| Item Dimensions Lx Wx H | 4 x 2 x 1 inches |
| Item Package Dimensions L x W x H | 4.9 x 4 x 1 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 2 x 1 inches |
| Weight | 0.01 ounces |
| Width | 2 inches |
| Technical Specifications | |
| Flammability Rating | UL94-HB |
| Global Trade Identification Number | 00040488296014 |
| Operating Temperature Range | -30°C (-20°F) to 60°C (140°F) |
| Proposition 65 Warning | True |
| Pull-Up Force | 22N (5 lbf) |
