HawkEye DT2BX-TM In-Dash Depth Sounder with Air and Water Temperature (Includes Airmar Transom Mount Transducer)
Customize

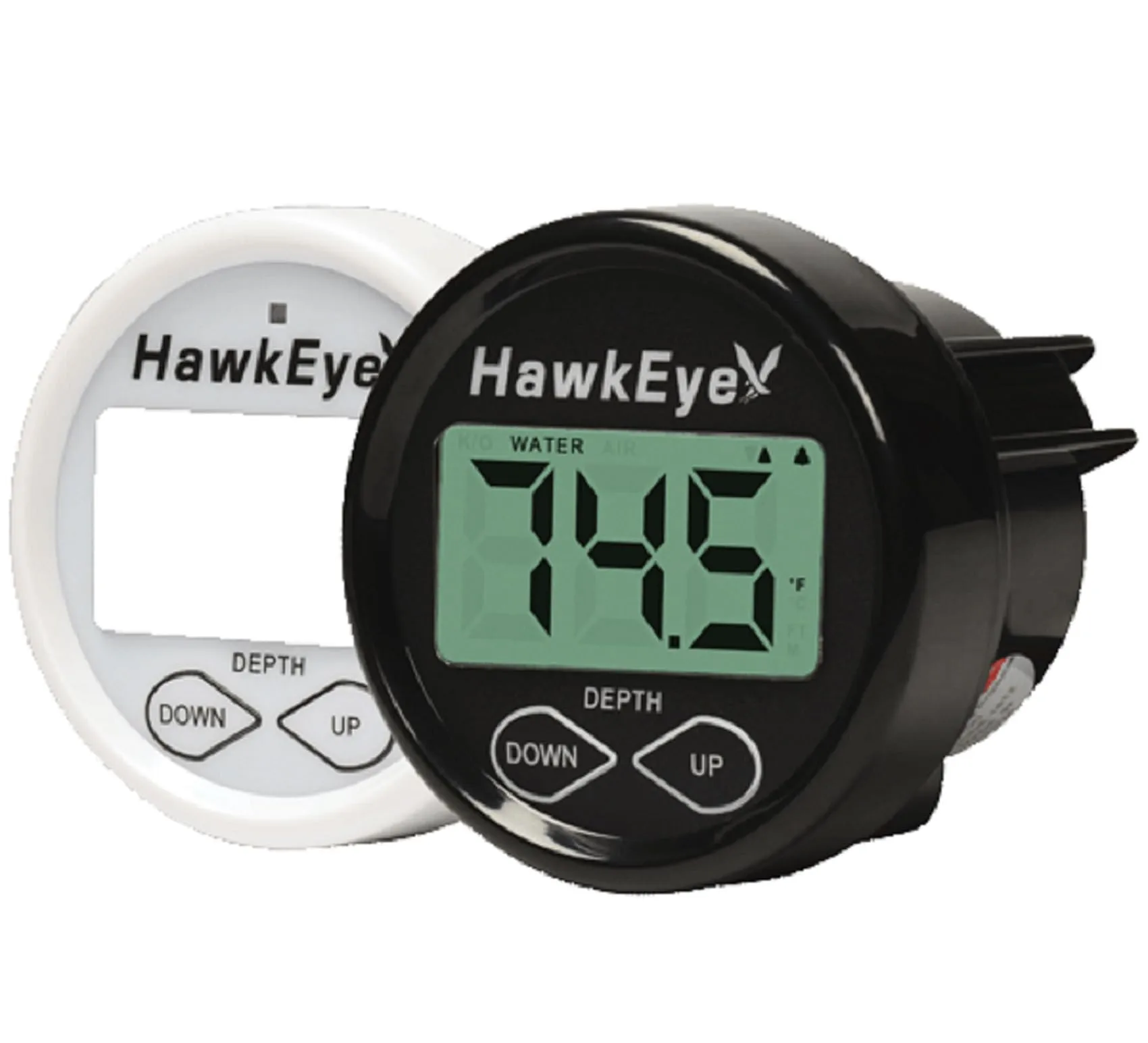

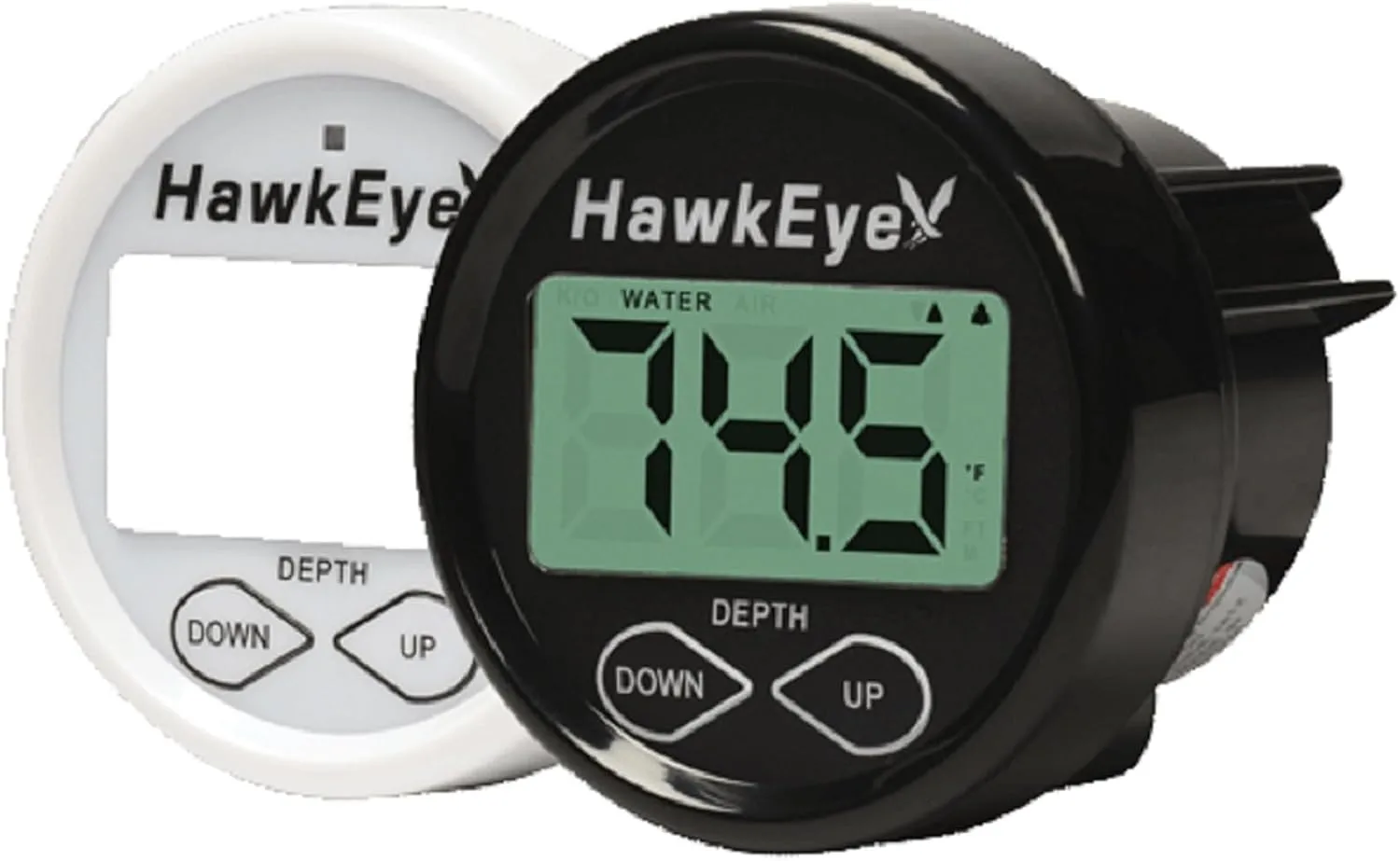

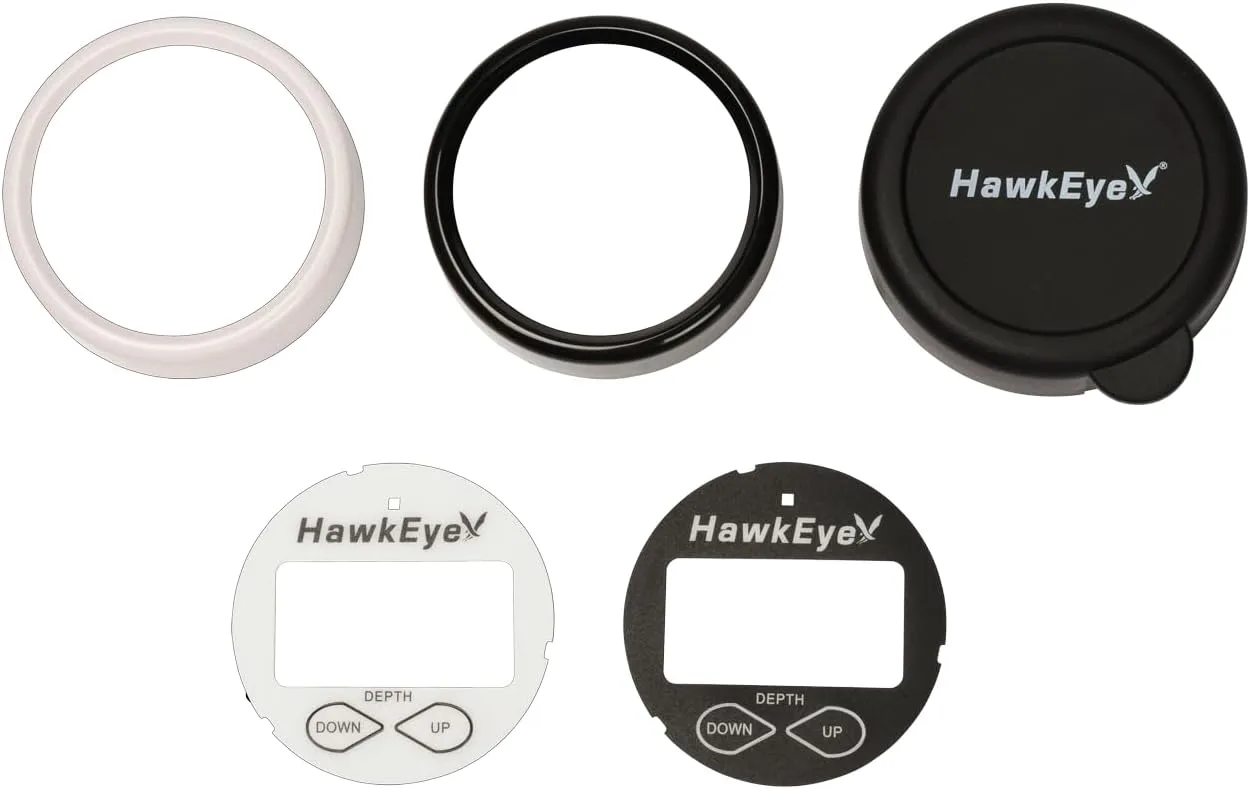

DepthTrax In-Dash Digital Depth & Temp Gauge - Transom Mount. The DepthTrax 2BX includes advanced sonar, depth alarm, and keel offset capabilities of the DepthTrax 2B, and integrates dual temperature displays plus an Airmar ultra-sensitive transom mount transducer. With a button press the DepthTrax 2BX displays air or water temperature via integrated sensors in the head unit and transducer. Algorithmic programming reduces false readings and improves precision. EasyTouch one-touch programming, user-programmable keel offset, selectable Imperial/Metric readout, dual depth alarms, a 3-stage advanced warning system (audible alarm, LED and LCD indicators), SoftGlow backlit display and keys, removable face system with interchangeable white & black faceplates and trim rings, polarized LCD (no glare) with storage sun cover, and automatic memory retention of user settings. Includes gauge bezel/faceplate (black and white), display cover, mounting hardware, transom-mount transducer with 30' cable and instruction manual. Gauge dimensions, screen size, operating range, transducer cable length and power requirements are provided for installation and operation.
- HawkEye products are manufactured both in the USA and overseas using technology designed and developed with American ingenuity
- No glare, polarized LCD icon display with storage sun cover allows for spot free viewing with or without sunglasses; Algorithmic programming significantly reduces false readings and produces unmatched precision

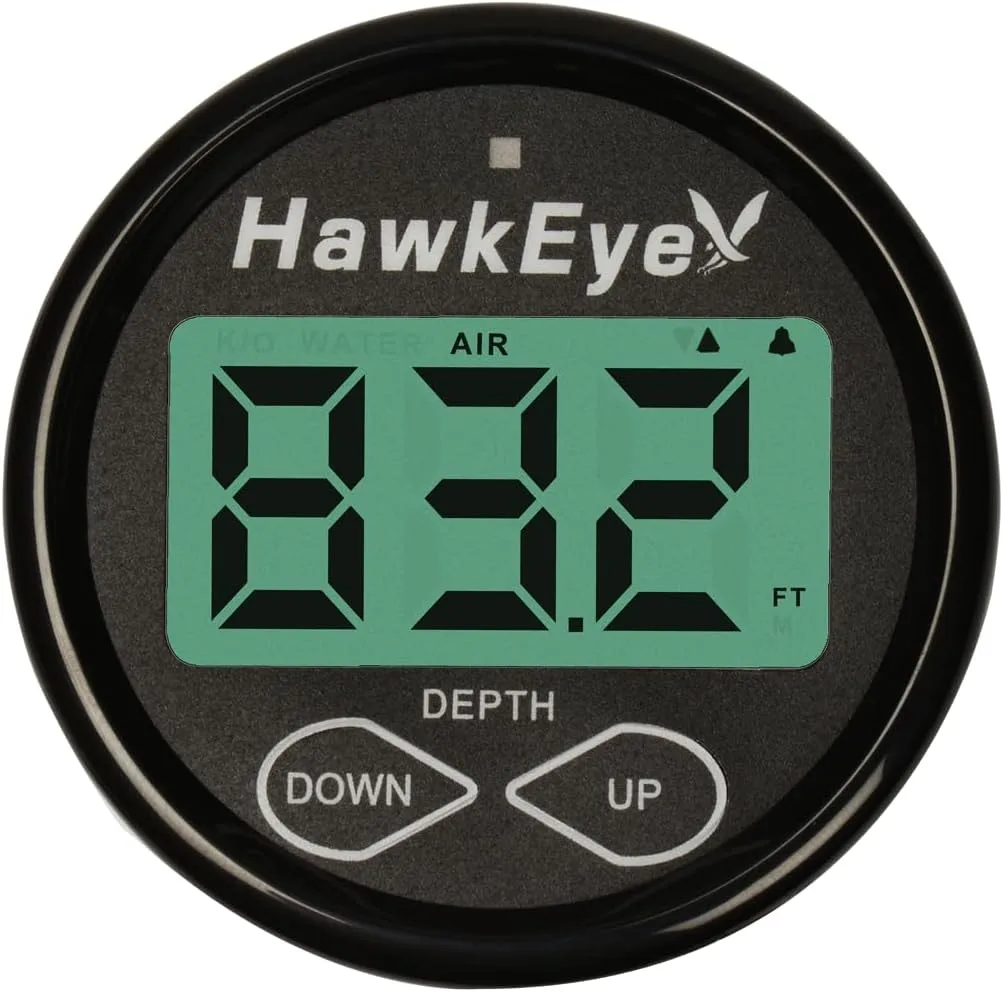

- Water or air temperature readings are displayed in degrees Fahrenheit or Celsius on a Soft Glow backlit LCD display

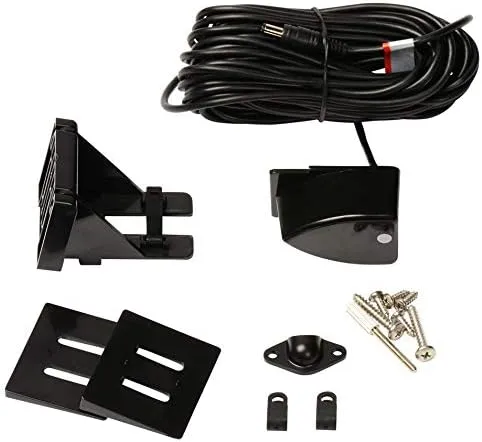

- Includes Transom Mount Temp Transducer With 30 Feet Of Cable
- 3-stage Advanced Warning System clearly signals an alarm condition with an audible alarm, LED warning light and LCD alarm indicators with one-touch alarm muting

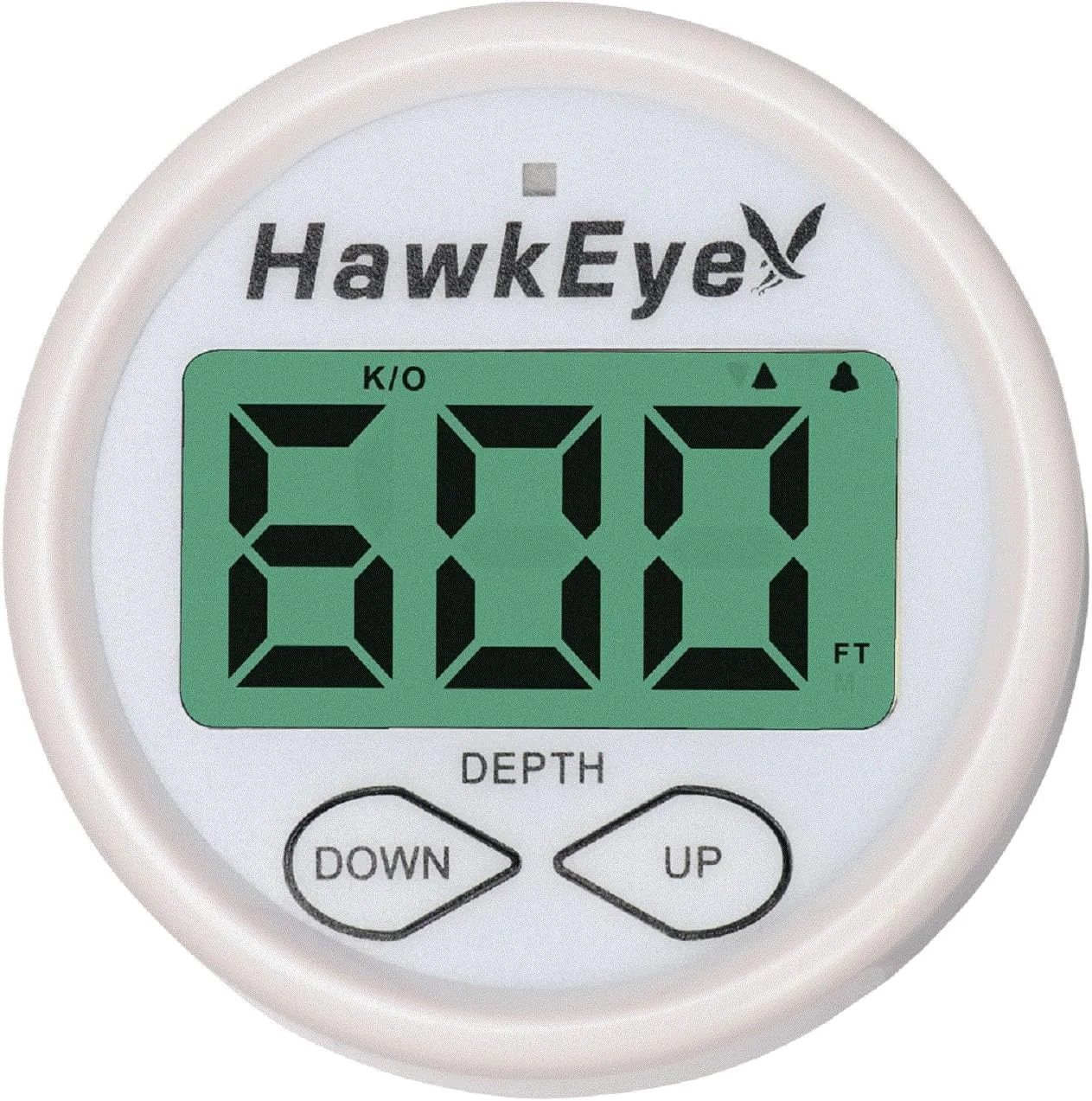

- Delivers uninterrupted depth readings from 2. 5 to 600 feet on the largest display available on an In-Dash Depth Sounder up to 60 mph
Specifications:
| Materials & Construction | |
| Color | Interchangeable Black & White Face Plates & Trim Rings. |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Box Set | No |
| Display Type | LCD |
| Gauge Type | Depth Sounder |
| Included Components | NORCROSS ELECTRONICS |
| Model Name | Boat Mount Depth Finder |
| Mounting Type | Transom-mount or thru-hull |
| Power Source | Battery Powered |
| Screen Size | 2 Inches |
| Style | Depth Sounder (with Transom Mount & Temp. Reading) |
| Voltage - Input Range (Volts) | 12 - 14 |
| Warranty | 2 year limited manufacturer |
| Sizing & Dimensions | |
| Height | 6 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 3 x 6 inches |
| Size | 600 Feet |
| Weight | 2 pounds |
| Width | 3 inches |
| Technical Specifications | |
| Power Requirement | 12 - 14 VDC |
| Warranty | 2 year limited manufacturer |
