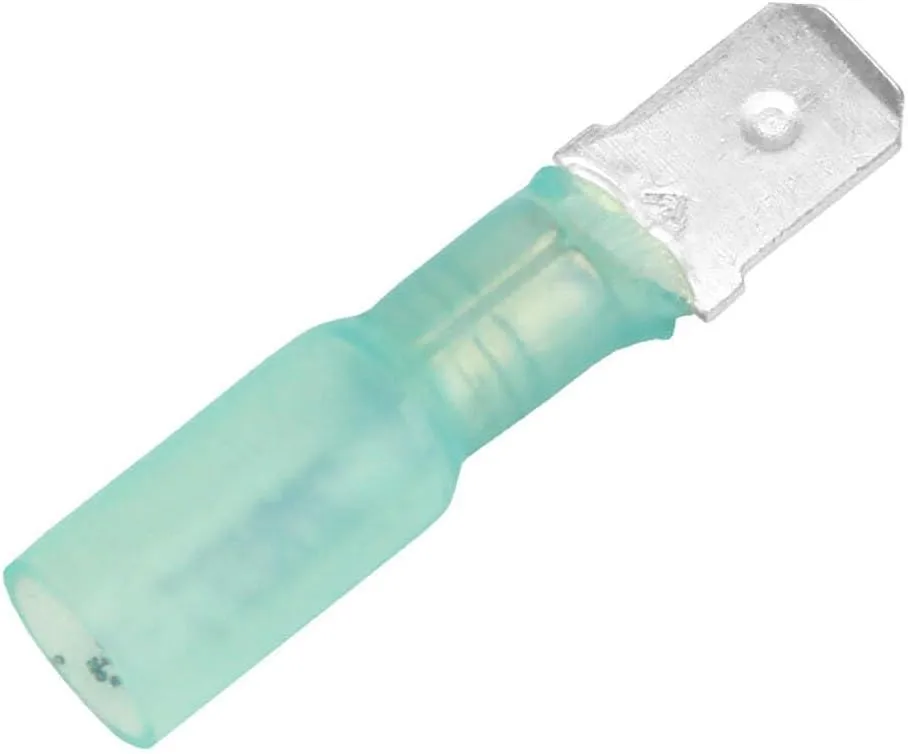

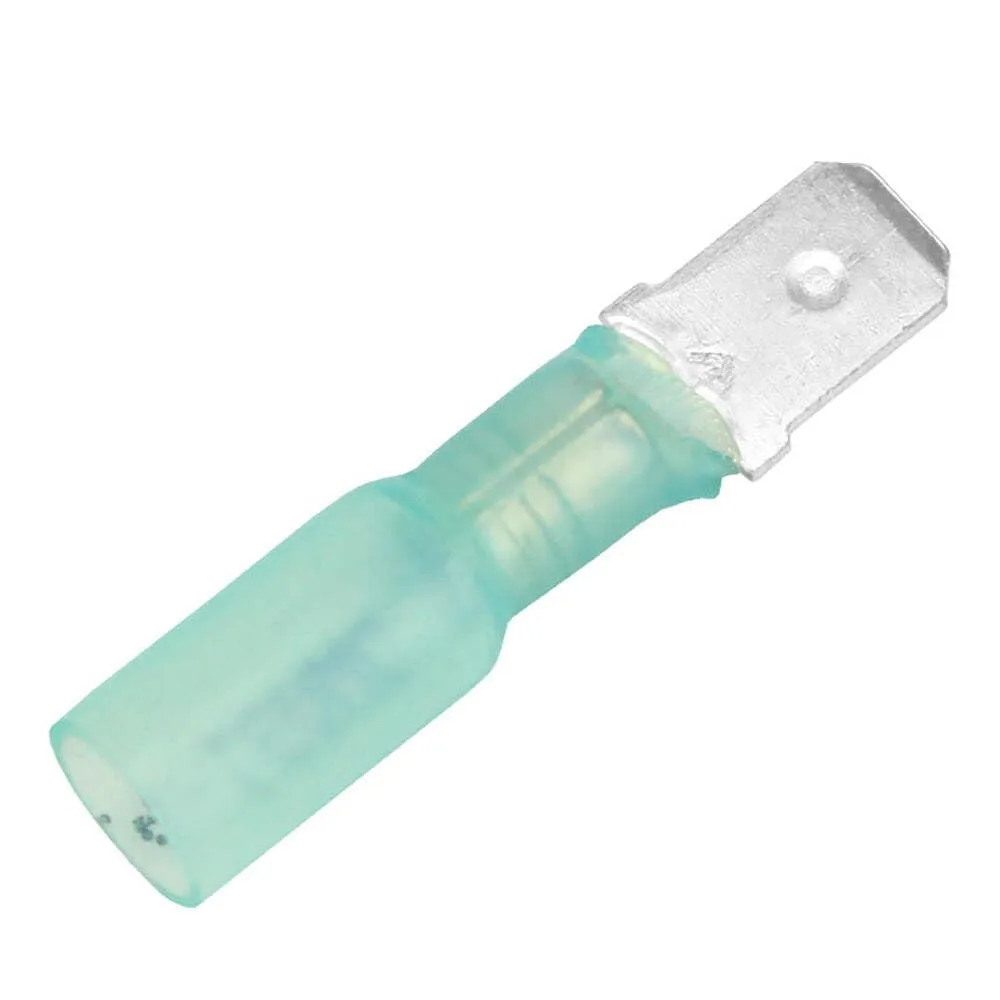

Pacer 16-14 AWG Heat Shrink Male Disconnect - 25 Pack
Customize
16-14 AWG Heat Shrink Male Disconnect - 25 Pack Disconnects are a type of terminal intended to be disconnected and reconnected multiple times, making them ideal for field serviceability. These heat-shrink male disconnects provide environmental sealing to protect terminations from water, condensation, salt spray, and corrosion and offer added vibration protection in rugged environments. They create solid, re-connectable connections and meet multiple compliance standards. Features include partially insulated male disconnects, heat shrink insulation, tinned copper conductors for corrosion resistance, and a shrink ratio of approximately 3:1 at 135 °C. Benefits include durability, long life, and easy installation. Characteristics: Insulation Color: Blue; Wire AWG: 16-14 AWG; Package Size: Twenty-five included; Disconnect Size (inch): 0.250; Shrink Ratio: Approximately 3:1 at 135 °C; Operating Temperature: -55 °C - 125 °C; Volume Resistivity: 10^15 Ohm-cm3; Dielectric Strength: 900-V/mil; Voltage Rating: 600-V. Specification met: CSA, UL, RoHS.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Product Details | |
| Connector Type | Male |
| Included Components | Great Product |
| Model Name | TDE14-250M-25 |
| Number of Items | 1 |
| Part Number | TDE14-250M-25 |
| Specification Met | CSA, UL, RoHS |
| Terminal | Male Disconnect Terminal |
| Unit Count | 1.0 Count |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 3 x 1 inches |
| Size | 16-14 AWG |
| Weight | 1.6 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Dielectric Strength | 900-V/mil |
| Operating Temperature | -55 °C - 125 °C |
| Shrink Ratio | Approximately 3:1 at 135 °C |
| Voltage Rating | 600-V |
| Volume Resistivity | 10^15 Ohm-cm3 |
