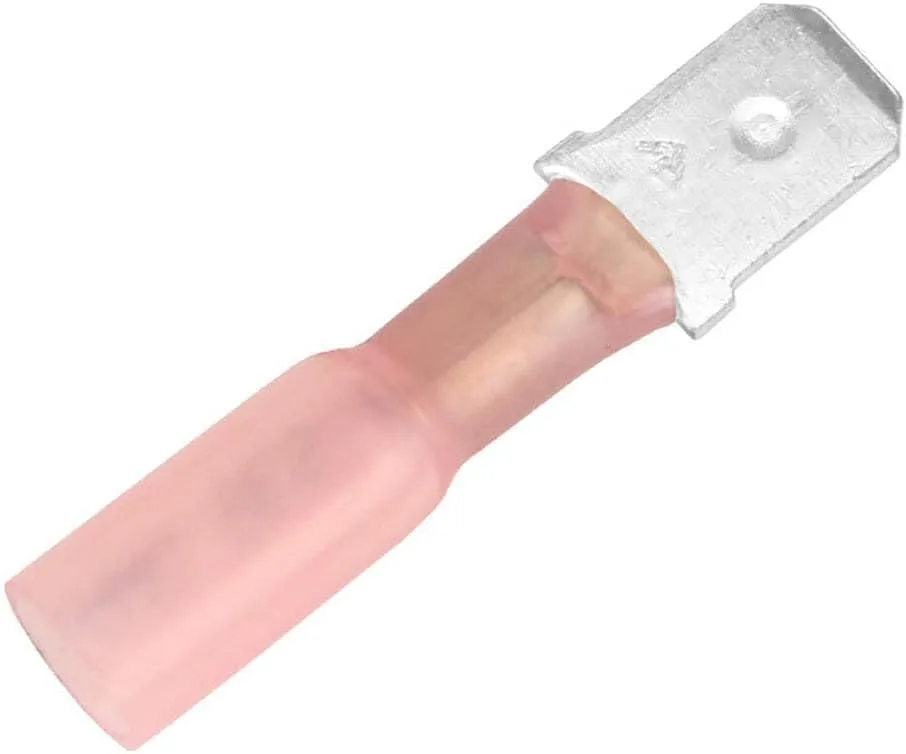

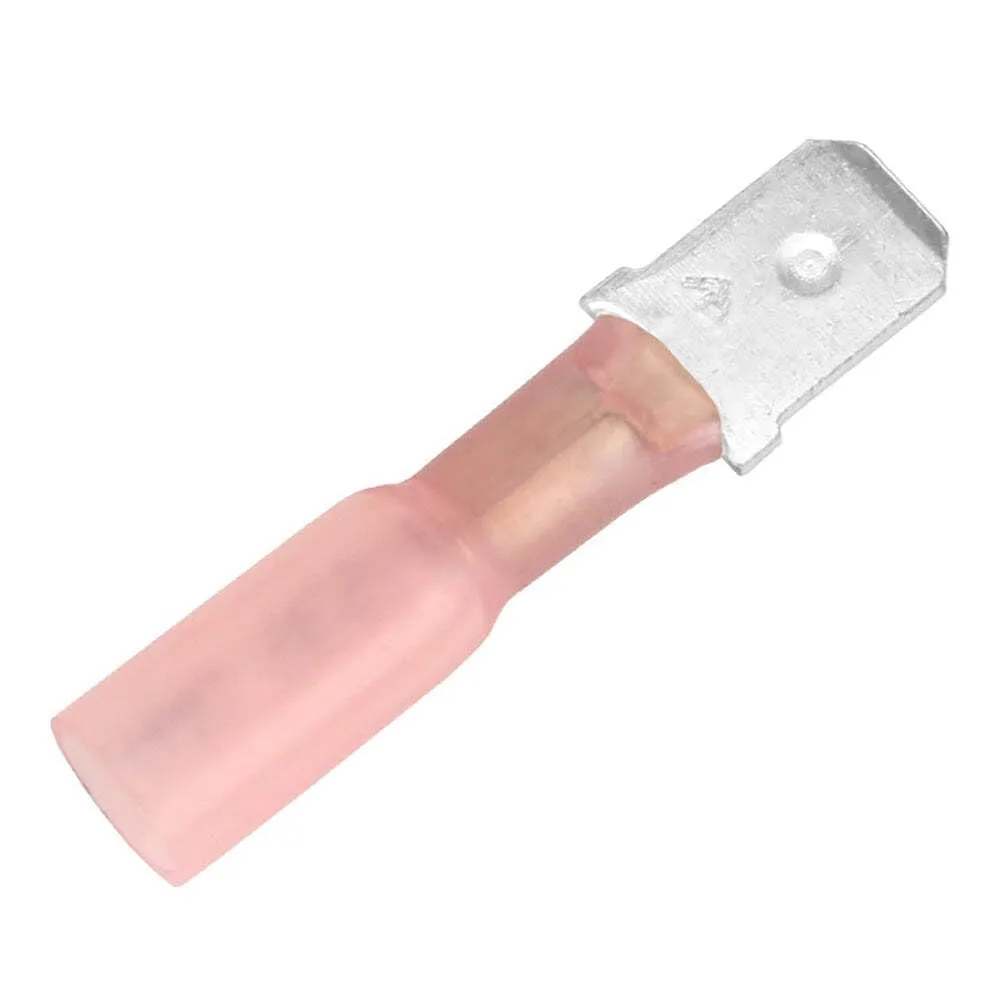

Pacer 22-18 AWG Heat Shrink Male Disconnect - 100 Pack
Customize
22-18 AWG Heat Shrink Male Disconnect - 100 Pack. Disconnects are a type of terminal intended to be disconnected and reconnected multiple times, ideal for field serviceability. These heat-shrink male disconnects protect electrical connections from mechanical abuse, wire pull-out, and abrasion for long-lasting performance. Features include partially insulated male disconnect, environmental seal for water/condensation/salt spray protection, added vibration protection for rugged environments, tinned copper construction, and shrink ratio approximately 3:1 at 135°C. Benefits: environmentally sealed, durable, easy to install, and long lasting. Characteristics: Insulation Color: Red; Wire AWG: 22-18 AWG; Package Size: 100 included; Disconnect Size: 0.250"; Operating Temperature: -55°C - 125°C; Volume Resistivity: 10^15 Ohm-cm3; Dielectric Strength: 900 V/mil; Voltage Rating: 600-V. Additional product data: Item Dimensions LxWxH: 8 x 3 x 2 inches; Item Weight: 6.4 ounces; Package Weight: 6.4 ounces.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Gauge | 22-18 Awg |
| Heat Shrink | Yes |
| Included Components | Great Product |
| Model Name | TDE18-250M-100 |
| Number of Items | 1 |
| Package Qty | 100 |
| Type | Disconnects |
| Unit Count | 1.0 Count |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 3 x 2 inches |
| Size | 22-18 AWG |
| Weight | 6.4 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Dielectric Strength | 900 V/mil |
| Disconnect Size (inch) | 0.250" |
| Operating Temperature | -55 °C - 125 °C |
| Shrink Ratio | Approximately 3:1 at 135 °C |
| Voltage Rating | 600-V |
| Volume Resistivity | 10^15 Ohm-cm3 |
