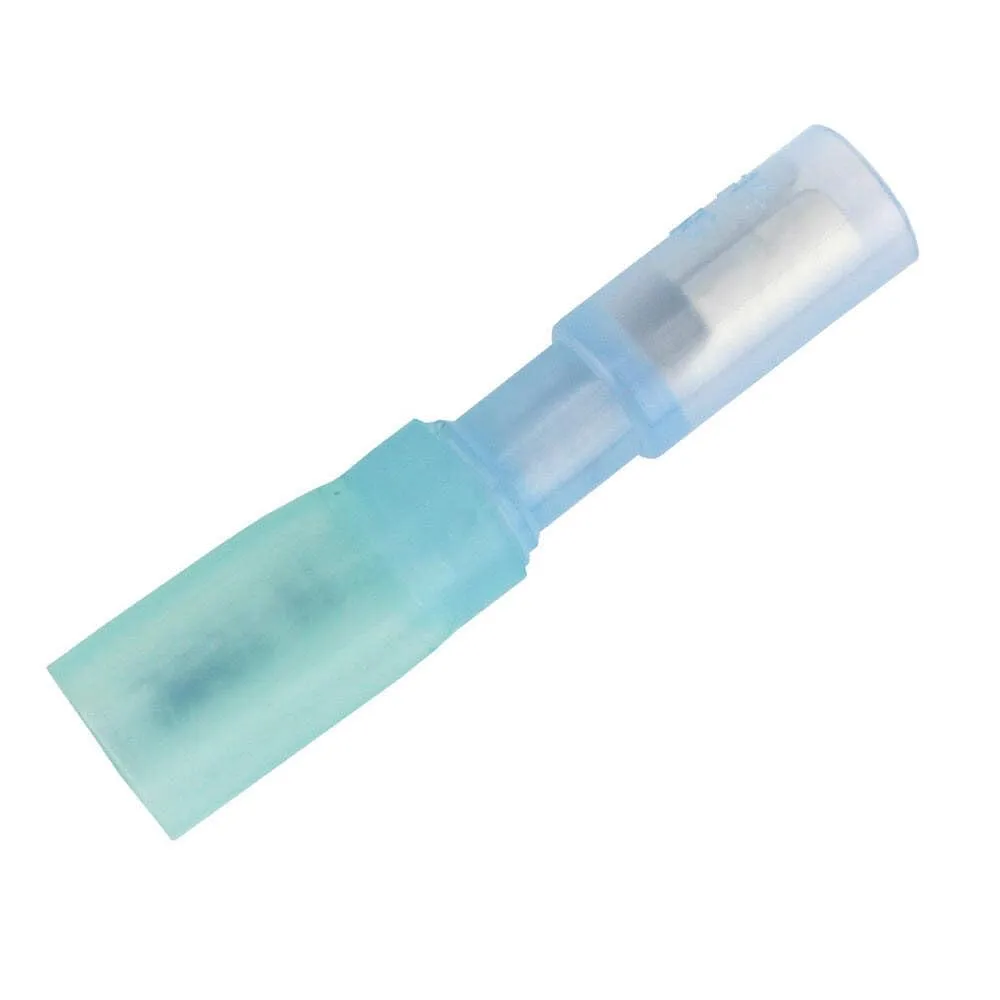

16-14 AWG Heat Shrink Female Bullet Terminal - 100 Pack Disconnects are a type of terminal intended to be disconnected and reconnected multiple times. This makes them ideal for use where field serviceability is an issue. Disconnects are a great way to protect electrical connections. Whether dealing with mechanical abuse, wire pull-out, or abrasion, they are a solid choice for longevity. Disconnects are sometimes known as quick connects or slip-on connectors. Features: Female bullet terminal Protects terminations from water, condensation, salt spray, and corrosion Added vibration protection in rugged environments Disconnect & reconnectable Creates solid connections Meets multiple compliances Benefits: Environmentally sealed Built for durability Tinned Copper Long Lasting Easy to install Characteristics: Insulation Color: Blue Wire AWG: 16-14 AWG Package Size: One-hundred included Bullet Terminal Size (inch): 0.156" Shrink Ratio: Approximately 3:1 at 135 °C Operating Temperature: -55 °C - 125 °C Volume Resistivity: 1015 Ohm-cm3 Dielectric Strength: 900-V/mil Voltage Rating: 600-V, Gauge: 16-14 AWG , Heat Shrink: Yes , Package Qty: 100 , Type: Disconnects. Great Product.
Specifications:
| Materials & Construction |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details |
| Connector Type | Bullet |
| Gauge | 16-14 Awg |
| Heat Shrink | Yes |
| Included Components | Great Product |
| Model Name | TBRE14-156-100 |
| Number of Items | 1 |
| Package Qty | 100 |
| Terminal | Bullet Terminal |
| Type | Disconnects |
| Unit Count | 1.0 Count |
| Warranty Description | Warranty |
| Sizing & Dimensions |
| Height | 2 inches |
| Length | 7 inches |
| Product Dimensions | 7 x 3 x 2 inches |
| Product Weight | 0.4 Pounds |
| Size | 16-14 AWG |
| Weight | 6.4 ounces |
| Width | 3 inches |
| Technical Specifications |
| Warranty | Warranty |
