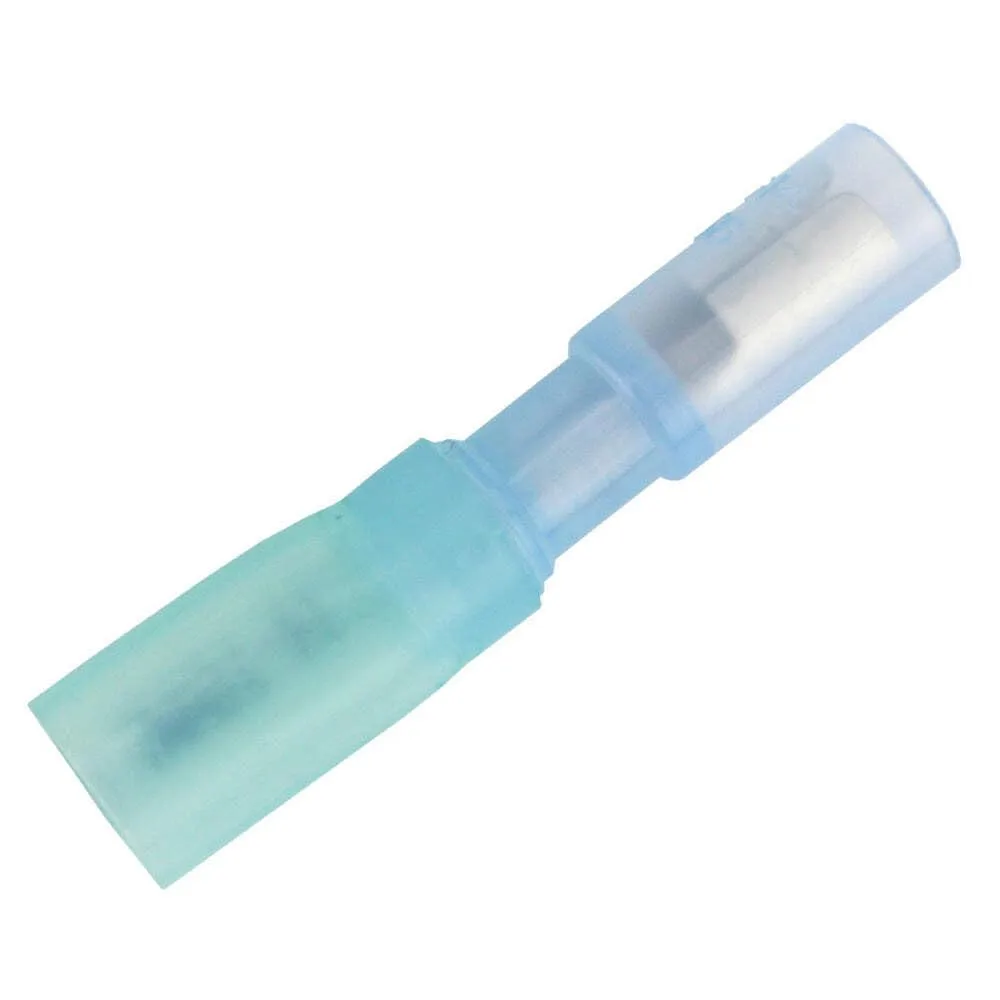

16-14 AWG Heat Shrink Female Bullet Terminal - 25 Pack. Disconnects are a type of terminal intended to be disconnected and reconnected multiple times, making them ideal where field serviceability is important. These female bullet terminals protect electrical connections from mechanical abuse, wire pull-out, abrasion, water, condensation, salt spray and corrosion. Features include heat-shrink insulation, vibration protection, tinned copper construction, and a roughly 3:1 shrink ratio. Benefits: environmentally sealed, durable, long lasting, and easy to install. Characteristics: Insulation Color: Blue; Wire AWG: 16-14 AWG; Package Size: 25; Bullet Terminal Size: 0.156"; Shrink Ratio approx. 3:1 at 135°C; Operating Temp: -55°C to 125°C; Volume Resistivity: 10^15 Ohm-cm3; Dielectric Strength: 900 V/mil; Voltage Rating: 600 V. Model/Part: TBRE14-156-25. Package includes 25 terminals.
Specifications:
| Materials & Construction |
| Color | Black |
| Gauge | 16-14 Awg |
| Heat Shrink | Yes |
| Material | Plastic |
| Package Qty | 25 |
| Type | Disconnects |
| Product Details |
| Connector Type | Bullet |
| Included Components | Great Product |
| Model Name | TBRE14-156-25 |
| Number of Items | 1 |
| Terminal | Bullet Terminal |
| Unit Count | 1.0 Count |
| UPC | 840248207157 |
| Warranty Description | Warranty |
| Sizing & Dimensions |
| Height | 1 inches |
| Item Dimensions Lx Wx H | 4 x 3 x 1 inches |
| Length | 4 inches |
| Package Dimensions | 4 x 3 x 1 inches |
| Product Dimensions | 4 x 3 x 1 inches |
| Weight | 1.6 ounces |
| Width | 3 inches |
| Technical Specifications |
| Item Package Dimensions L x W x H | 4 x 3 x 1 inches |
