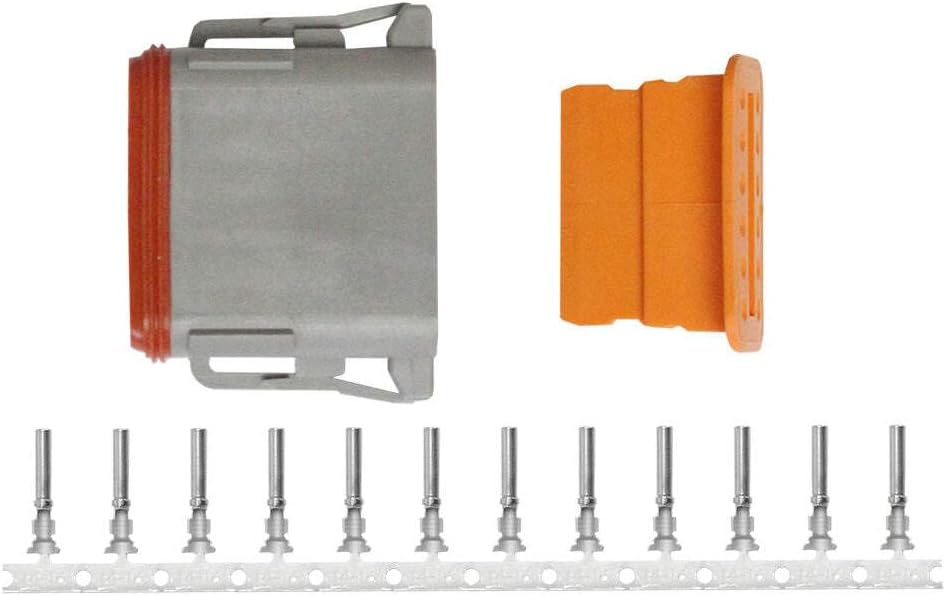

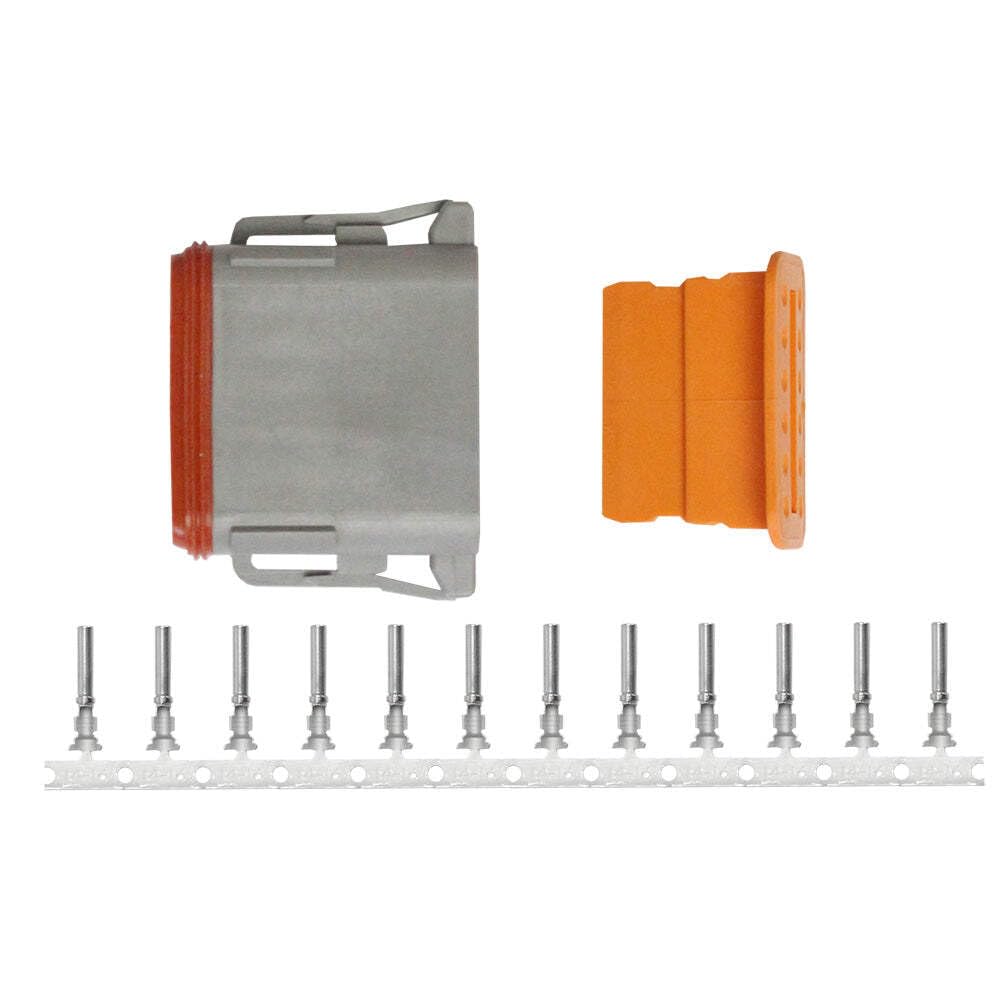

Pacer DT Deutsch Plug Repair Kit - 14-18 AWG (12 Position)
Customize
DT Deutsch Plug Repair Kit - 14-18 AWG (12 Position) Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications. Features: Packs include all parts needed to assemble a connector One to two extra terminals Cavity plugs to seal open circuits Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K EU RoHS/ELV Standard UL-94 Recognized Characteristics: Wedge locks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Technical Specifications: Number of Cavities: 12 Housing: Rectangular receptacle, plastic reinforced with glass fiber Contact Size: 16 (13 amp) Wire Size: 14 AWG Holds Pin/Socket: Sockets Operating Temperature: -55°C to 125°C Contents: (1) 12 pos. plug (1) 12 pos. wedge lock (14) sockets (6) cavity plugs Great Product.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | TDT06F-12RS |
| Number of Items | 1 |
| UPC | 840248214933 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 3 x 2 inches |
| Product Weight | 0.1 Pounds |
| Weight | 1.6 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Contact Size | 16 (13 amp) |
| Number of Cavities | 12 |
| Operating Temperature | -55°C to 125°C |
| Warranty | Warranty |
| Wire Size | 14 AWG |
