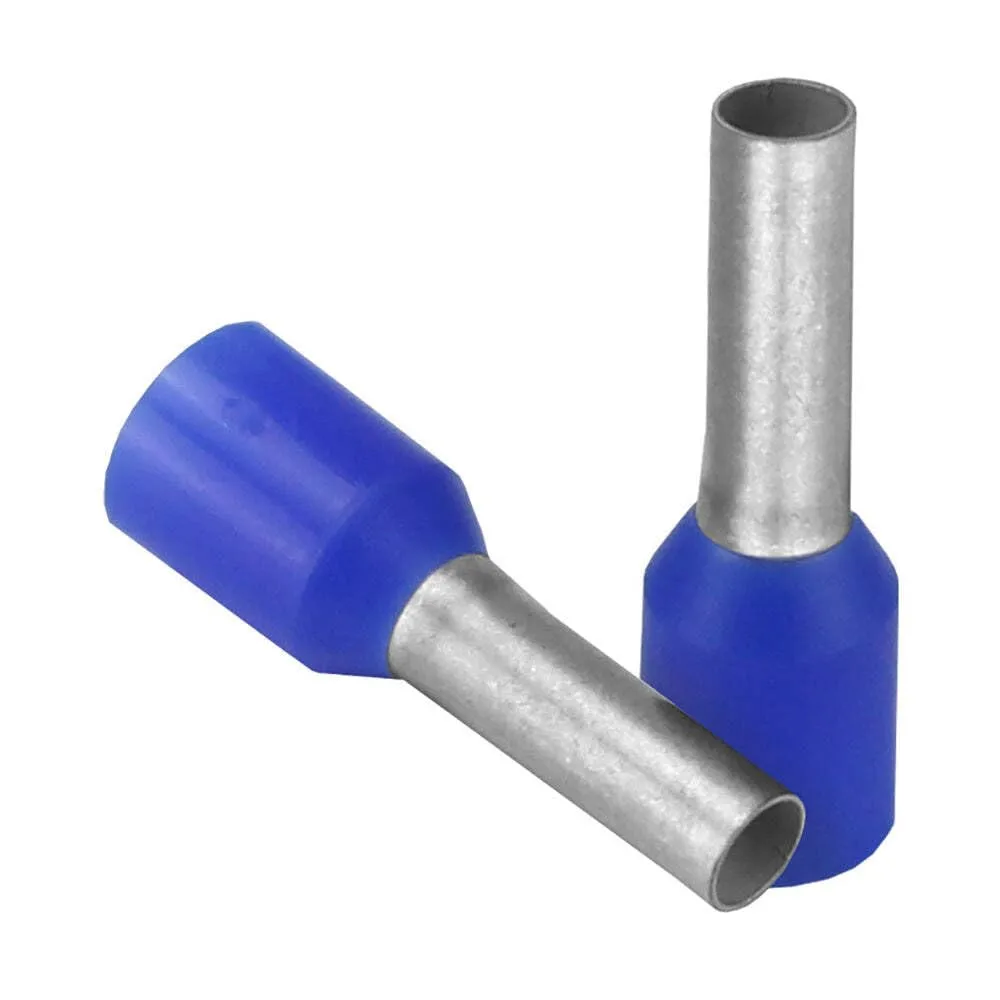

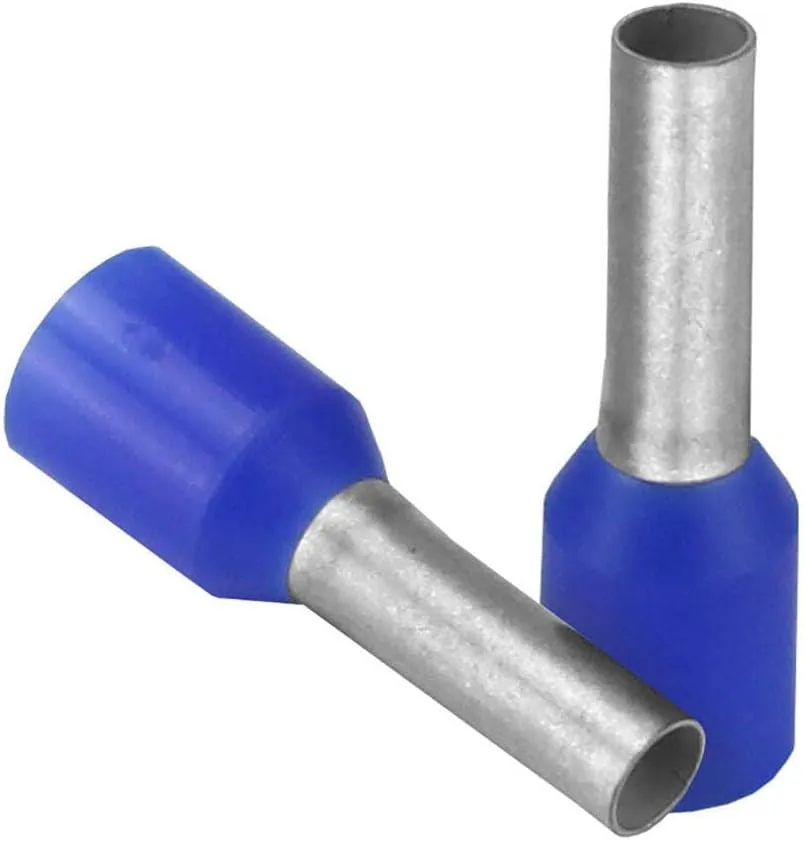

Pacer Blue 14 AWG Wire Ferrule - 8mm Length - 25 Pack
Customize
Blue 14 AWG Wire Ferrule - 8mm Length - 25 Pack. Wire fraying can quickly become a problem when dealing with IEC (European)-style terminal blocks. As the wire frays, the connection becomes weaker, and the problem will need to be addressed. But all that can be prevented by utilizing wire ferrules. Wire ferrules cover stranded wire and create a solid, connected piece—making stranded wire behave more like solid wire, which is important when working with IEC terminal blocks. Proper use: strip wire to correct length, slide ferrule over exposed wire so nylon casing butts up to the wire insulation, then crimp with the proper tool to ensure a solid connection. Heat shrink may be added for extra protection. Features: Prevent strand separation while minimizing strand breakage; Insulated ferrules provide additional electrical insulation; Increase connection reliability when terminating stranded wire in terminal blocks. Specifications (from sources): Package Size: 25; Wire Size (AWG): 14; Insulation Color: Blue; Ferrule Length: 8mm (0.31 in.); Stripping Length: 10mm (0.39 in.).
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Number of Items | 1 |
| Unit Count | 1.0 Count |
| UPC | 840248215664 |
| Warranty | Warranty |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 6 inches |
| Product Dimensions | 6 x 3 x 1 inches |
| Weight | 0.80 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Ferrule Length | 8mm (0.31 in.) |
| Stripping Length | 10mm (0.39 in.) |
