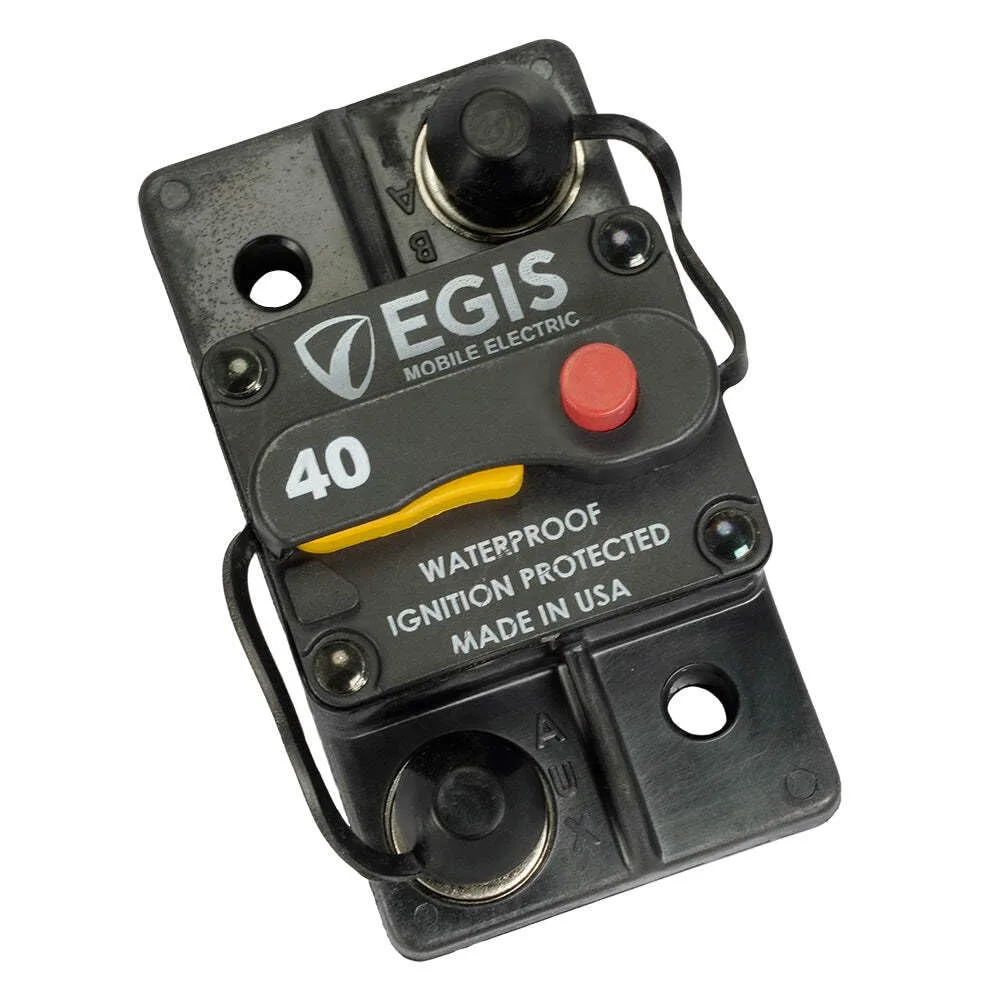

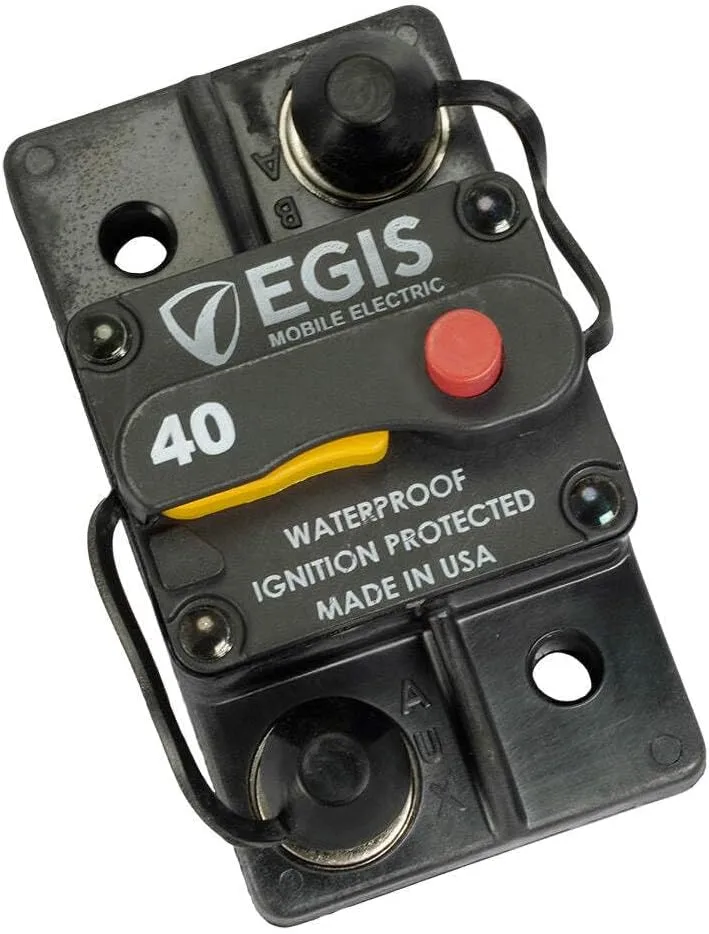

Egis 40A Surface Mount Circuit Breaker - 285 Series
Customize
40A Surface Mount Circuit Breaker - 285 Series. This 40A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. Applications include automatic circuit protection and manual on/off switching, allowing circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of location. Features include sealed construction against dust and water intrusion (IP67) for reliable protection in harsh environments, High Voltage (48 Vdc) rating supporting 12 and 24 VDC applications (and 36/48 VDC), high electrical/manual switching endurance (6,000 cycles at full current), high interrupt current capability for paralleled battery banks, integrated terminal insulators to prevent inadvertent shorts, stainless steel hardware with serrated flange nuts for corrosion and vibration resistance, ON/OFF high visibility controls, and a 4-year warranty. Proudly made in the USA. Item and package dimensions and weights: Item Dimensions LxWxH: 5 x 3 x 3 inches; Item Weight: 6.4 ounces; Package Dimensions: 5 x 3 x 3 inches; Package Weight: 0.35 Pounds.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Amperage | 40a |
| Circuit Breaker Type | Standard |
| Color | Black |
| Current Rating | 40 Amps |
| Included Components | Great Product |
| Material | Plastic |
| Model Name | 4703-040 |
| Mounting Type | Surface Mount |
| Number of Items | 1 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3 inches |
| Item Dimensions Lx Wx H | 5 x 3 x 3 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 3 x 3 inches |
| Weight | 6.4 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Cycling Endurance | 6,000 |
| Ingress Protection Rating | IP67 |
| Interrupt Current @16 VDC (Amps) | 5,000 |
| Interrupt Current @28 VDC (Amps) | 3,000 |
