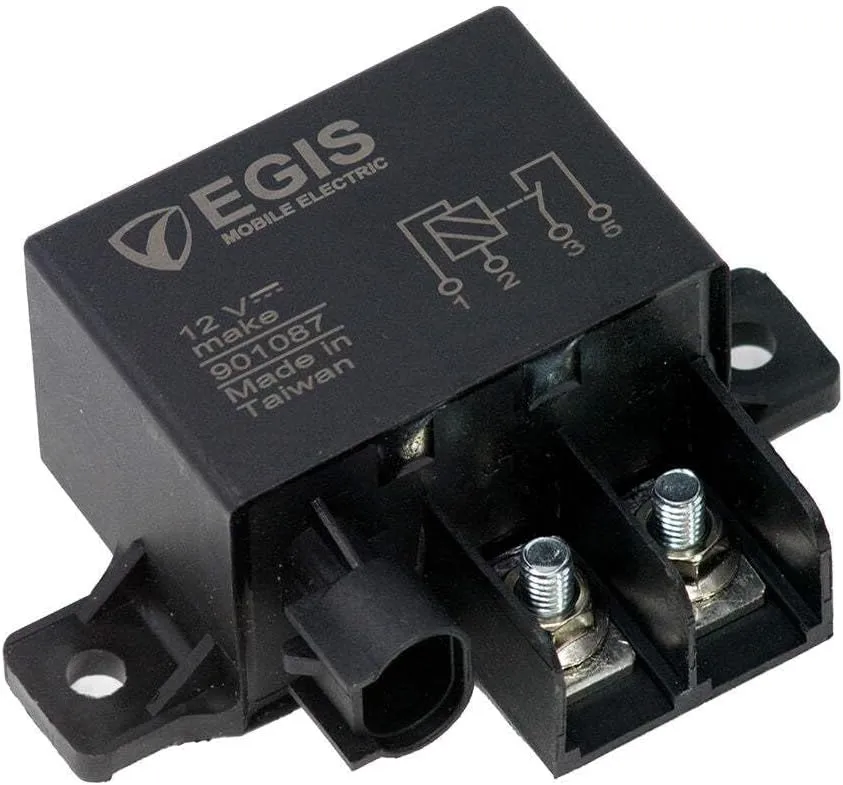

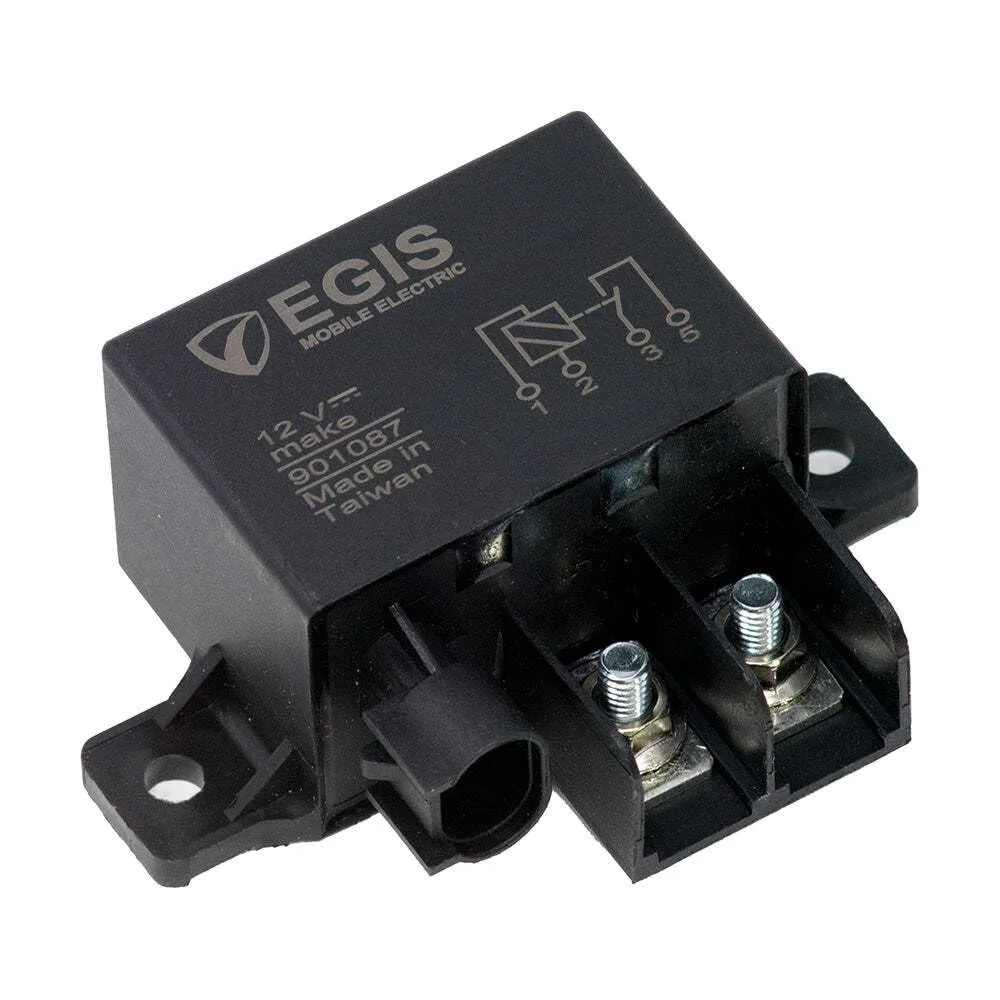

Relay 12V 150A with Resistor. This is an automotive-rated relay/industry standard drop-in replacement for Tyco/Amp. The relay switch carries high-amp electrical currents in high ambient temperatures/wet environments. Features: Delphi Metripak connector built-in to the enclosure (sealed enclosure). Specifications: Continuous Current @85C (Amps): 180; Intermittent Current @85C (Amps): 240; Minimum Operate Voltage (VDC): 7.2; On-State Current Draw @12V (mA): 325; Release Voltage (VDC): 2.2; Switching Current @13.5 VDC (Amps): 300. Additional product details from marketplace listing: Operation Mode: Automatic; Mounting Type: Panel Mount; Current Rating: 150 Amps; Connector Type: Plug-In; Coil Voltage: 12 Volts (DC); Wattage: 3.9 watts; Specification Met: Sae J2544, Iec/En 60947, Iso/Ts 16949, Culus, Oem, Ul, Ip67, Nema. Item Dimensions (LxWxH): 4 x 3 x 2 inches. Item Weight: 9.6 ounces. Package Dimensions (LxWxH): 4 x 3 x 2 inches. Package Weight: 0.6 Pounds. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Coil Voltage | 12 Volts (DC) |
| Color | Black |
| Connector Type | Plug-In |
| Current Rating | 1.5E+2 Amps |
| Included Components | Great Product |
| Material | Plastic |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Operation Mode | Automatic |
| Specification Met | Sae J2544, Iec/En 60947, Iso/Ts 16949, Culus, Oem, Ul, Ip67, Nema |
| Warranty Description | Warranty |
| Wattage | 3.9 watts |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 3 x 2 inches |
| Weight | 9.6 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Continuous Current @85C (Amps) | 180 |
| Intermittent Current @85C (Amps) | 240 |
| Minimum Operate Voltage (VDC) | 7.2 |
| On-State Current Draw @12V (m A) | 325 |
| Release Voltage (VDC) | 2.2 |
| Switching Current @13.5 VDC (Amps) | 300 |
