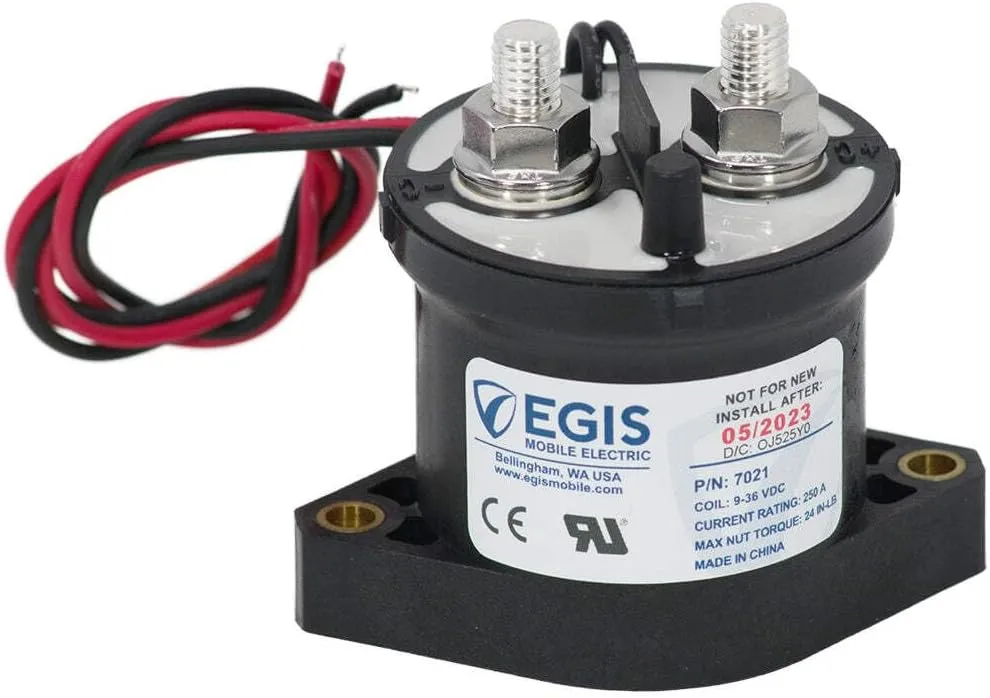

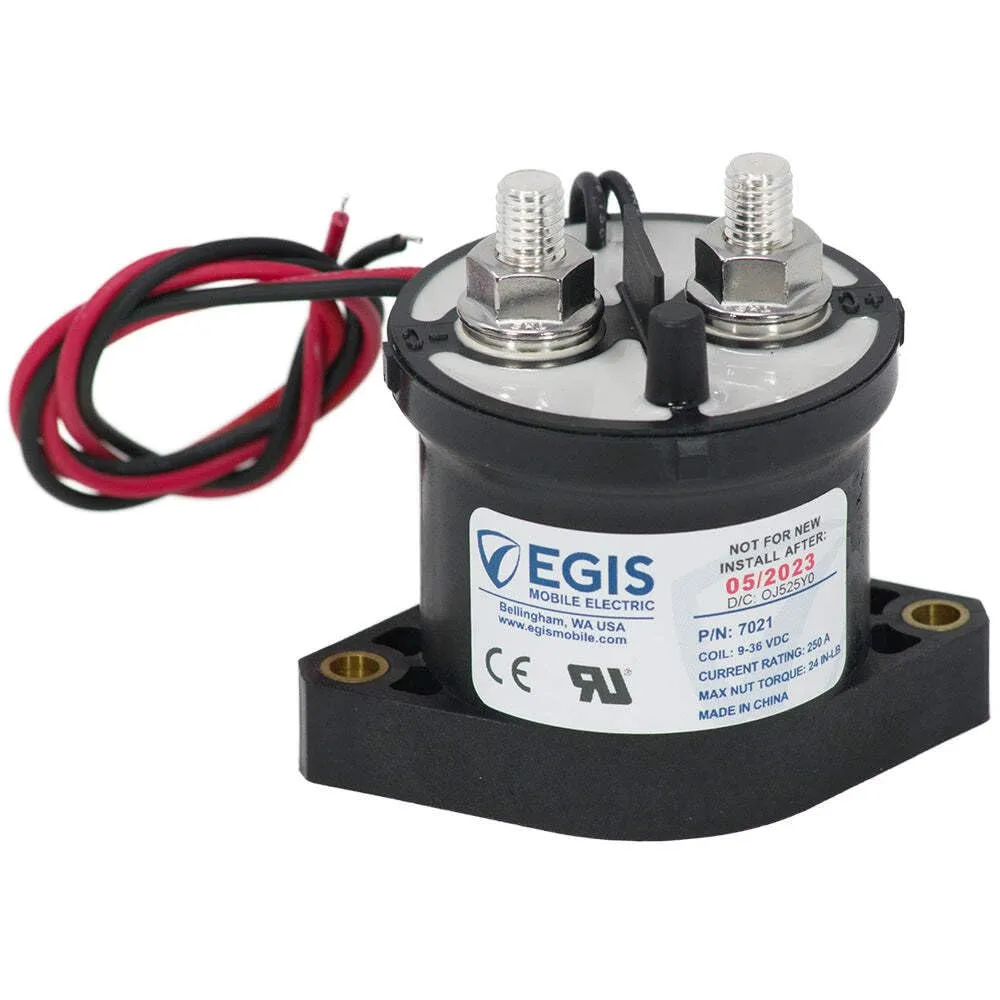

Egis Contactor 250A, 12/24V
Customize
Contactor 250A, 12/24V. This 250A Egis contactor reduces installation cost and weight by enabling remote switching of high-ampere engines and auxiliary loads, eliminating long cable runs to manual switches. The unit is hermetically sealed against dust and moisture intrusion for long-life reliability. High contact voltage rating supports 12 or 24 Vdc control voltage applications and higher switching voltages up to 48 V and beyond. Features ignition protection for safe installation in closed compartments where explosive gases may be present. High electrical switching endurance delivers long life (industry-rated cycles). High interrupt current capability allows safe opening in locked starter situations (up to 1,500 A @14 Vdc). Bullet-proof construction includes sealed device, high-temperature materials for engine compartment use, and 18-8 stainless steel self-locking hardware for corrosion resistance. Reinforced mounting holes provide easy, secure installation. Industry-leading 4 year warranty. Additional product details: Continuous Current (Amps): 250/500; Control Voltage: 9-36 VDC; Ingress Protection: IP67/IP69K; Ignition Protection: ISO-8846 / UL 1500; Electrical Endurance Rating (Cycles): 1,000,000; Operating Temperature Range: -40 C to 85 C.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | 7021 |
| Number of Items | 1 |
| UPC | 850035199671 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 3 x 3 inches |
| Weight | 1.1 pounds |
| Width | 3 inches |
| Technical Specifications | |
| Continuous Current (Amps) | 250/500 |
| Electrical Endurance Rating (Cycles) | 1,000,000 |
| High Interrupt Current Capability | Safely able to open in a locked starter situation (up to 1,500 A @ 14 Vdc) |
| Ignition Protection | ISO-8846 / UL 1500 |
| Ingress Protection | IP67/IP69K |
| Max Operate Temp. (Deg C) | 85 C |
| Minimum Operate Temp. (Deg C) | -40 C |
| Operation Control Voltage | 9-36 VDC |
| Warranty | 4 Year Industry Leading Warranty |
