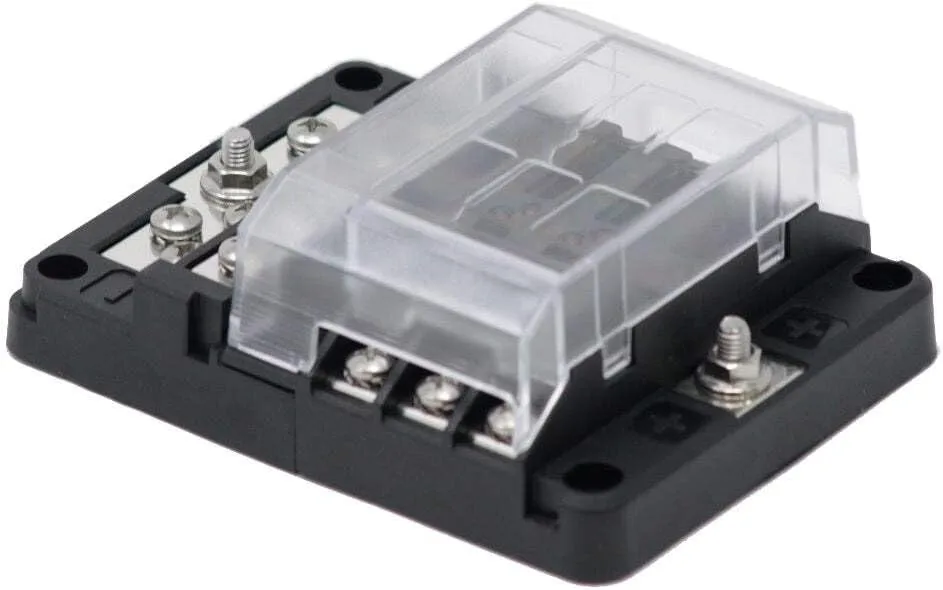

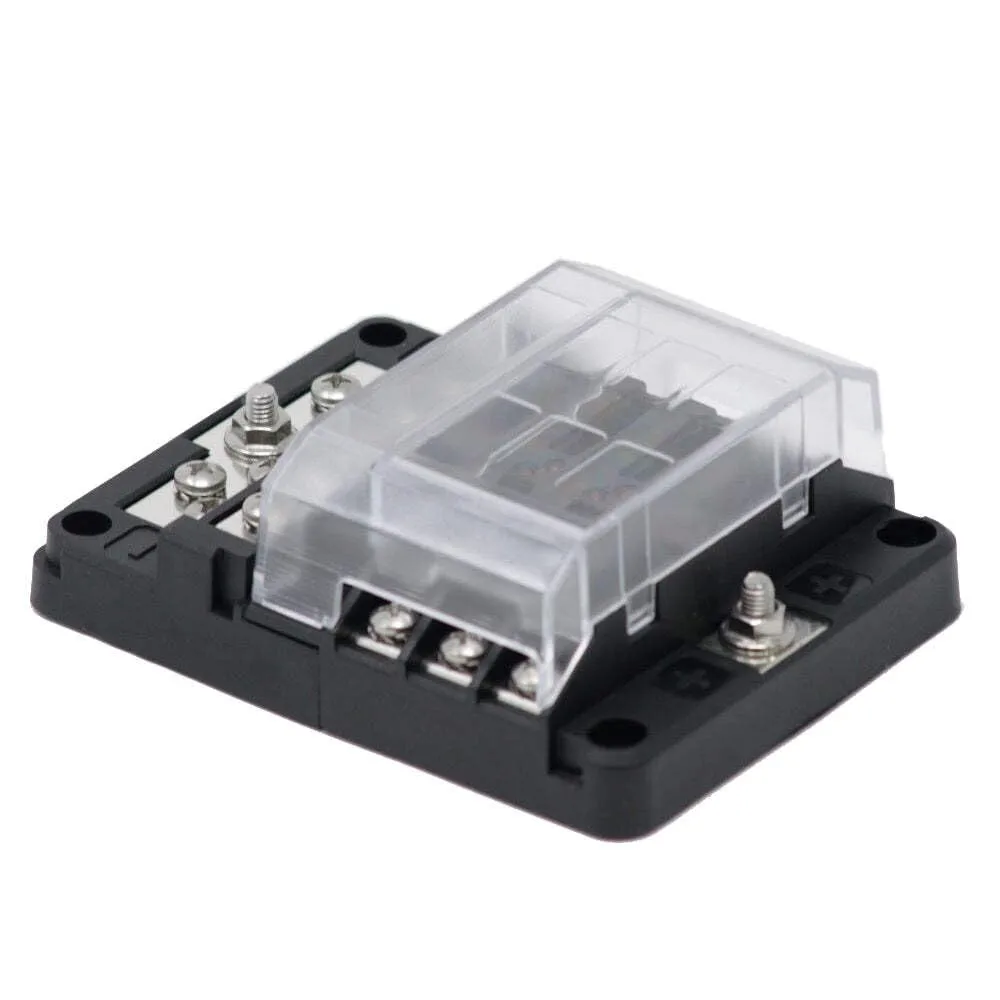

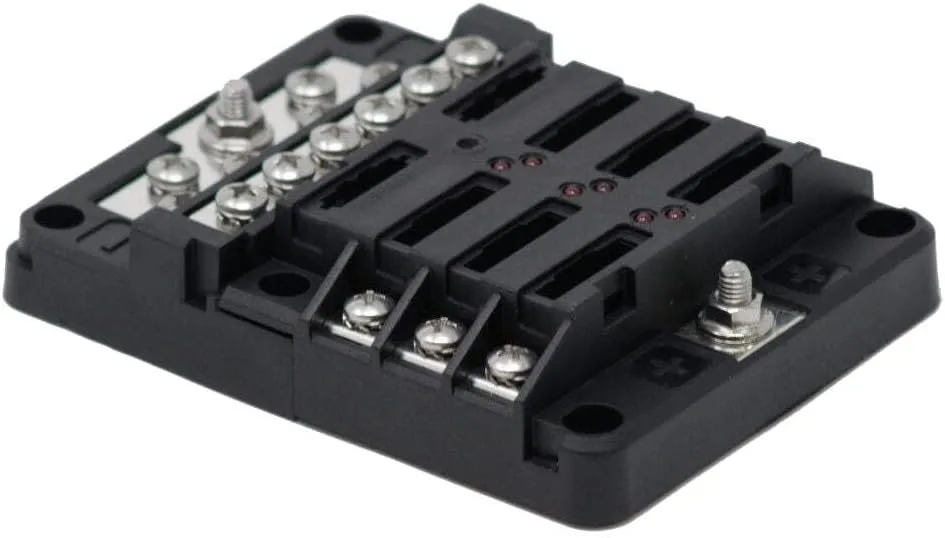

RT Fuse Block 6 Position with Ground & LED Indication. This modular 6-position fuse block (Egis 8025) delivers LED blown-fuse indication for each circuit and includes a 12-position ground return block. Constructed with high-temperature, non-ferrous materials and stainless steel self-locking hardware for harsh environments. Accepts ATO/ATC/ATF fuses (1–40 Amps), supports SAE circuit protection standards, and provides two spare fuse locations per six circuits. Modular design allows multiple configurations (compatible with Egis 8028 & 8030) to reduce part numbers. Optional weather-proof labels and separable ground block section enable flexible installation options. Applications: vehicle and marine electrical systems where fast blown-fuse diagnostics, reliability and rugged mounting are required.
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Product Details | |
| Amperage | 100a |
| Connector Type | Screw |
| Fuse Type | Ato/Atc/Atf |
| Included Components | Great Product |
| Number of Items | 1 |
| Number Of Poles | 6 |
| Type | Fuse Blocks |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 4 x 3 inches |
| Weight | 0.9 pounds |
| Width | 4 inches |
| Technical Specifications | |
| Max Output Wire Size | #10 AWG |
| Maximum Current (Entire Block) Amps | 100 |
| Maximum Current (Per Circuit) Amps | 30 |
| Voltage Range VDC | 0-36 |
