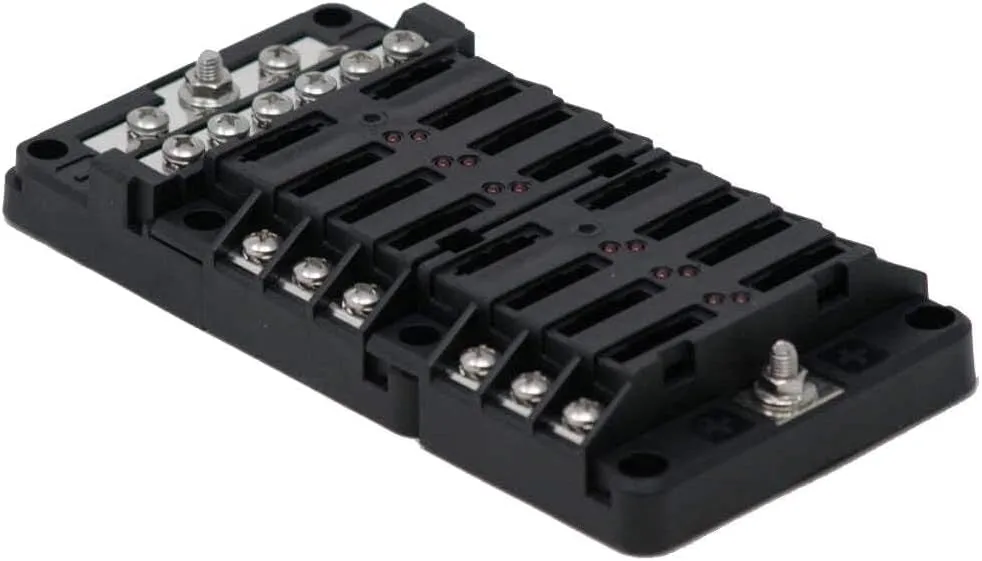

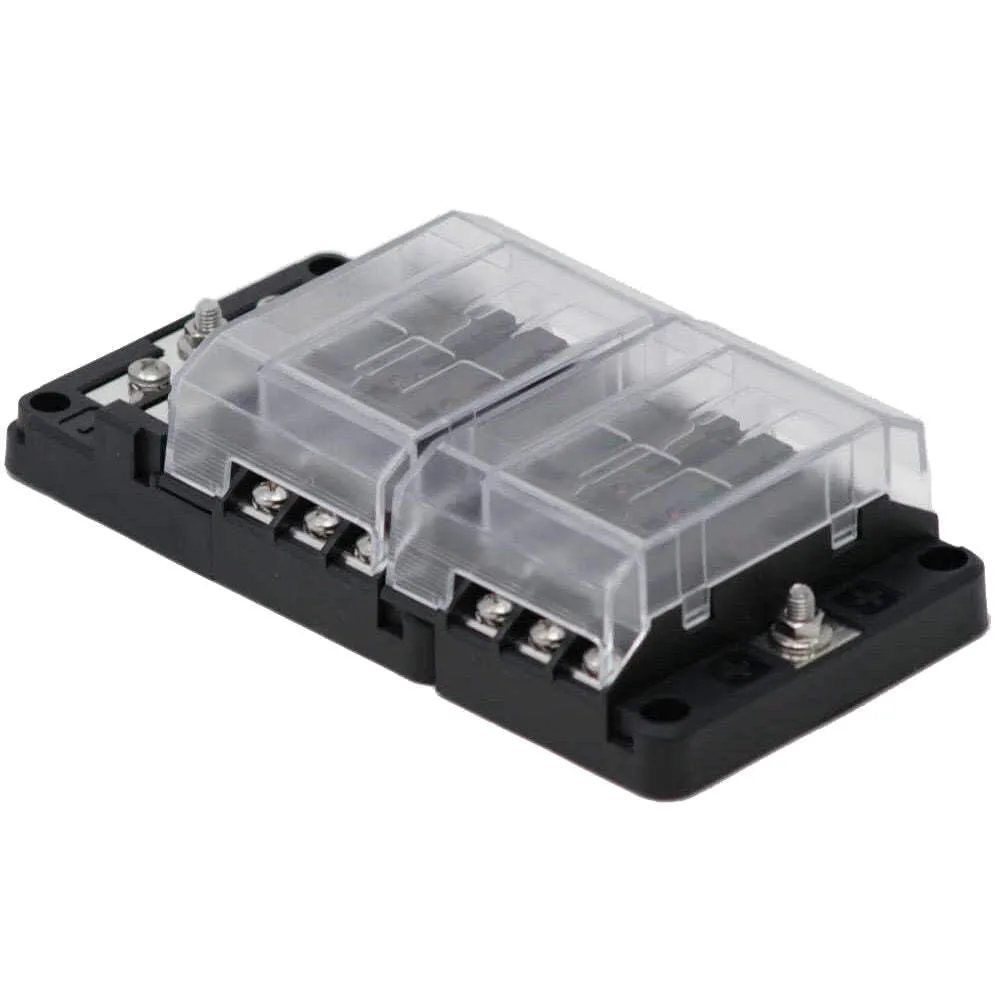

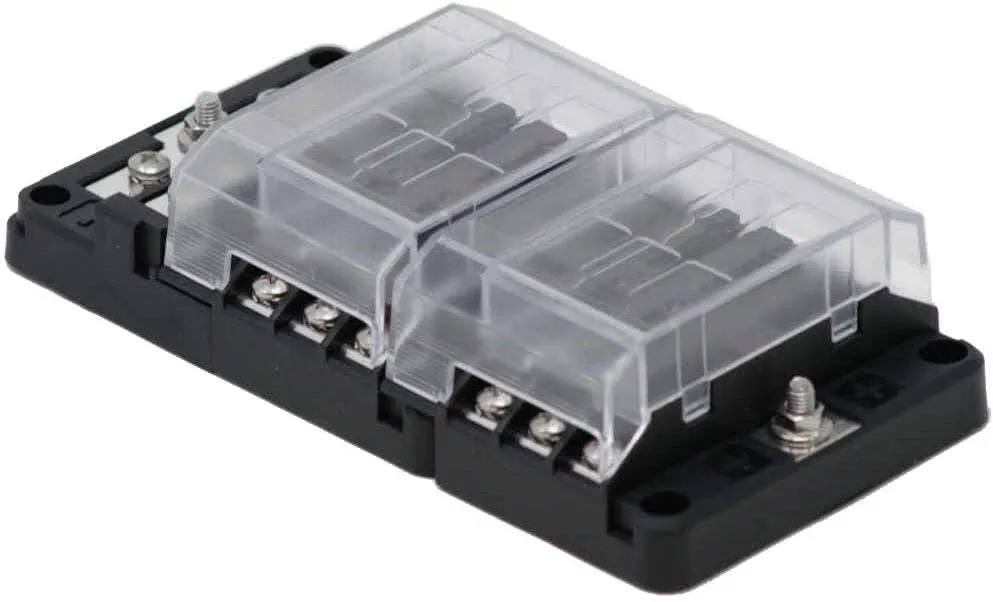

Egis RT Fuse Block 12 Position w/Ground & LED Indication

RT Fuse Block 12 Position with Ground & LED Indication This 12-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication. Applications: Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues. Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options. Features: Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps Supports SAE circuit protection standards for thermal/short circuit events Specifications: Maximum Current (Entire Block) Amps: 10 Maximum Current (Per Circuit) Amps: 30 Max Output Wire Size: #10 AWG Voltage Range VDC: 0-36 Number of Fuse Positions: 12 Compatible Fuse Types: ATO / ATC / ATF Focal Features: Spare Fuse Locations Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation. Stainless Steel Self-Locking Hardware 100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking. LED Fuse Diagnostics Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely. Cover/ Label Recesses Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Ground Block Included Includes a 12-position ground return block with multi-level low amp terminal screws for improved mounting. Ground Block Separates The ground block section optionally separates from the fuse block section, affording increased deployment options for challenging installations. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
